DRC-100B
26.57

DRC-100B

$26.57

Meanwell 96W AC/DC Single Output DIN rail type security power supply with Battery Charger (UPS Function) with CH1CH227.6V27.6V2.25A1.25A0-3.5A96.6W240mVp-pCH1:24-30V±1.0%±0.5%±0.5%

- +
Availability:In stock
SKU Meanwell DRC-100B
Brand Meanwell
Details

Meanwell DRC-100B is 96W AC/DC Single Output DIN rail type security power supply Battery Charger (UPS Function) with CH1CH227.6V27.6V2.25A1.25A0-3.5A96.6W240mVp-pCH1:24-30V. It can be mounted on DIN rail TS-35/7.5 or 15 with the width just 50mm, which is fit for the installation in limited spacing. Besides the primary output, there is a charger output with smaller rated current, enabling the backup power supply application the security access systems require. Furthermore, DRC-100B accepts the universal input between 90V AC and 264VAC, and supplies 13.8VDC and 27.6VDC at output, respectively. As the efficiency reaches up to 89%, the product can work with air convection cooling under -30℃ through 70℃. In addition to the key protection features such as overload protection, over voltage protection, battery low cut off, and battery reverse polarity protection (by fuse), the alarm signal for AC OK and battery low signaling is equipped as well via relay contact output to facilitate the system design. Due to its high efficiency, excellent reliability and long lifespan. Meanwell DRC-100B serves as an ideal power supply solution for industrial applications.

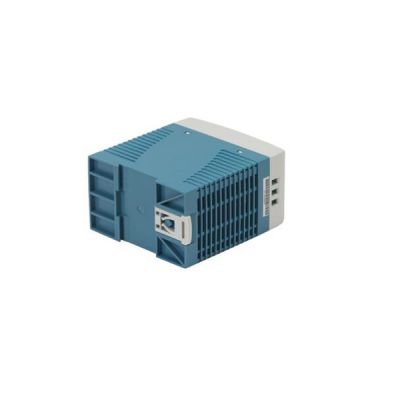

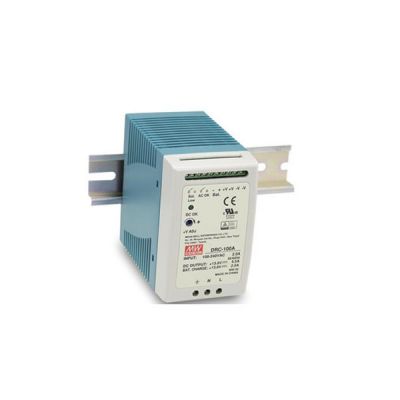

Meanwell DRC-100B

Meanwell DRC-100B Encoding

DRC Series Name
100 Output wattage
B Output Voltage

Meanwell DRC-100B Specifcations

Model DRC-100B
OUTPUT OUTPUT NUMBER CH1 CH2
DC VOLTAGE 27.6V 27.6V
RATED CURRENT 2.25A 1.25A
CURRENT RANGE 0-3.5A ----
RATED POWER 96.6W
RIPPLE & NOISE (max.) 240mVp-p ----
VOLTAGE ADJ. RANGE CH1:24-30V
VOLTAGE TOL ERANCE  ±1.0% ----
LINE REGULATION ±0.5% ----
LOAD REGULATION ±0.5% ----
SETUP, RISE TIME 2400ms, 50ms/230VAC 2400ms, 50ms/115VAC at full load
HOLD UP TIME (Typ.) 50ms/230VAC 10ms/115VAC at full load
INPUT VOLTAGE RANGE 90 ~ 264VAC 127 ~ 370VDC [DC input operation possible by connecting AC/L(+), AC/N(-)]
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR (Typ.) PF≧0.95/230VAC PF≧0.98/115VAC at full load
EFFICIENCY (Typ.) 89.00%
AC CURRENT (Typ.) 1.8A/115VAC 1.1A/230VAC
INRUSH CURRENT(Typ.) COLD START 30A/115VAC 60A/230VAC
PROTECTION OVERL OAD 105 ~ 150% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE CH1:28.98 ~ 37.26V
Protection type : Shut down o/p voltage, re-power on to recover
BATTERY CUT OFF 20±1V
FUNCTION AC OK Relay contact output, ON : AC OK ; OFF : AC Fail ; max. rating : 30V/1A
BATTERY LOW Relay contact output, OFF : Battery OK ; ON : Battery Low ; max. rating : 30V/1A
Battery low voltage : < 22V
ENVIRONMENT WORKING TEMP. -30 ~ +70 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0~50) on CH1 output
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS  UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004, AS/NZS 60950.1 approved
WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMS IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11,BS EN/EN55024,BS EN/EN61204-3, light industry level, EAC TP TC 020 ; meet BS EN/EN54-4 for fire detection and fire alarm systems
OTHERS MTBF 1820.4K hrs min. Telcordia SR-332 (Bellcore) ; 410.1K hrs min. MIL-HDBK-217F (25)
DIMENSION 55*90*100mm (W*H*D)
PACKING 0.37Kg; 30pcs/12.1Kg/0.82CUFT

Meanwell DRC-100B Features

l  3 years warranty

l  Cooling by free air convection

l  LED indicator for power on

l  100% full load burn-in test

l  Universal AC input/Full range

l  Can be installed on DIN railTS-35/7.5 or 15

l  Alarm signal for AC OK and Battery low (via relay)

l  Protections: Short circuit/Overload/Over voltage

l  Battery low protection/ Battery reverse polarity protection by fuse

Meanwell DRC-100B Features

Meanwell DRC-100B Applications

l  Security system

l  Alarm system

l  DC UPS system

l  Access system

l  Central monitoring system

l  Emergency lighting system

Meanwell DRC-100A  Applications

Meanwell DRC-100B Mechanical Diagram

Meanwell DRC-100B Mechanical Diagram

Meanwell DRC-100B Mechanical Diagram

Meanwell DRC-100B Mechanical Diagram
