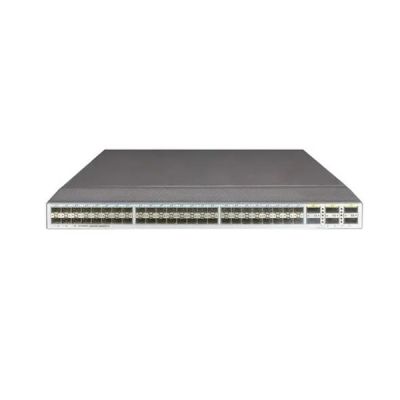

CloudEngine 6851-48S6Q-HI
5574.26

CloudEngine 6851-48S6Q-HI

$5,574.26

Huawei Data Center Switch with 48-Port 10G SFP+, 6-Port 40GE QSFP+

- +
Availability:In stock
SKU Huawei CloudEngine 6851-48S6Q-HI
Brand Huawei
Details

Huawei CloudEngine 6851-48S6Q-HI is a next-generation 10G Ethernet switch with 48-Port 10G SFP+, 6-Port 40GE QSFP+. The product is designed for data centers and high-end campus networks. It provides high-performance, high-density 10GE ports, and low latency. The CE6800 hardware has an advanced architectural design with 40GE uplink ports and the industry's highest density of 10GE access ports. Using Huawei VRP8 software platform, CE6800 switches provide extensive data center service features and high stacking capability. Furthermore, the airflow direction (front-to-back or back-to-front) can be changed. CE6800 switches can work with CE12800 switches to build an elastic, virtualized, high-quality fabric that meets the requirements of cloud-computing data centers. In addition, a stack system of 16 member switches has a maximum of 768*10GE access ports that provide highdensity server access in a data center. Multiple switches in a stack system are virtualized into one logical device, making it possible to build a scalable, easy-to-manage data center network platform. A stack system separates the control plane from the data plane. This eliminates the risk of singlepoint failures and greatly improves system reliability. They can also be used as aggregation or core switches for enterprise campus networks.

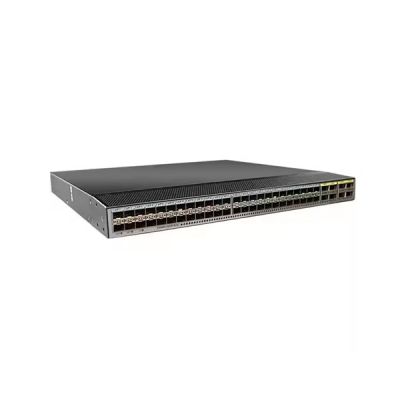

CloudEngine 6851-48S6Q-HI Huawei CE6800 Series Data Center Switch 48-Port 10G SFP+, 6-Port 40GE QSFP+ YCICT

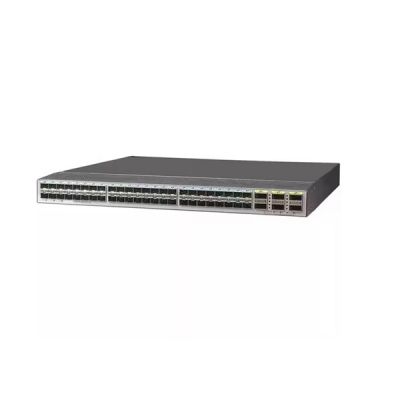

CloudEngine 6851-48S6Q-HI Huawei CE6800 Series Data Center Switch 48-Port 10G SFP+, 6-Port 40GE QSFP+ PN 02350JAR YCICT

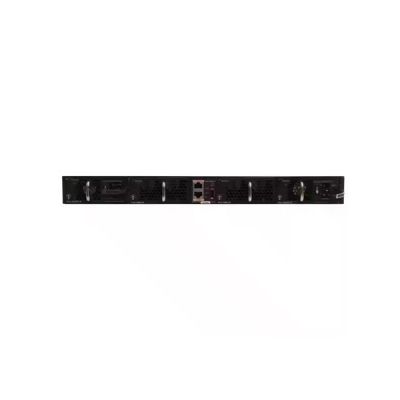

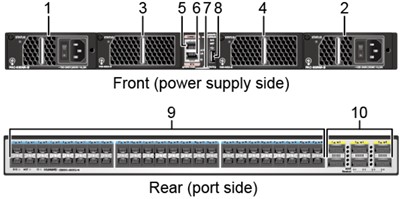

1, Power supply slot 1 2, Power supply slot 2
3, Fan slot 1 4, Fan slot 2
4, Console port 6, ETH management port (RJ45)
7, Barcode label 8, USB port
9, Forty-eight 10GE SFP+ Ethernet optical ports 10, Six 40GE QSFP+ Ethernet optical ports

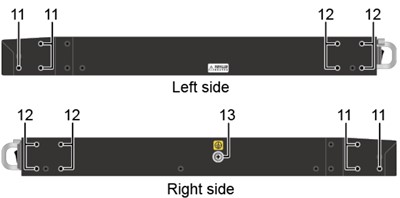

11, Three port-side mounting holes for mounting brackets 12, Four power-supply-side mounting holes for mounting brackets
13, Ground screw

Huawei CloudEngine 6851-48S6Q-HI Specifications

Part Number Part Model Part Description
02350JAR CE6851-HI-F-B0A CE6851-48S6Q-HI Switch (48-Port 10G SFP+, 6-Port 40GE QSFP+, 2*AC Power Module, 2*FAN Box, Port-side Exhaust)
02350JAS CE6851-HI-B-B0A CE6851-48S6Q-HI Switch (48-Port 10G SFP+, 6-Port 40GE QSFP+, 2*AC Power Module, 2*FAN Box, Port-side Intake)
02350JAP CE6851-48S6Q-HI-F CE6851-48S6Q-HI Switch (48-Port 10G SFP+, 6-Port 40GE QSFP+, 2*FAN Box, Port-side Exhaust, Without Power Module)
02350JAQ CE6851-48S6Q-HI-B CE6851-48S6Q-HI Switch (48-Port 10G SFP+, 6-Port 40GE QSFP+, 2*FAN Box, Port-side Intake, Without Power Module)
02350TJJ CE6851-48S6Q-HI-X CE6851-48S6Q-HI Switch (48-Port 10G SFP+, 6-Port 40GE QSFP+, Without FAN Box and Power Module)
Physical specifications Dimensions (W x D x H): 442.0 mm x 420.0 mm x 43.6 mm (17.4 in. x 16.5 in. x 1.72 in.)
Weight (with two power modules and two fan modules, calculated based on the heaviest model if multiple models are supported): 8.7 kg (19.18 lb)
Environment parameters Temperature Operating temperature: 0°C to 40°C (32°F to 104°F) at altitude of 0-1800 m (0-5906 ft.)
Storage temperature: -40°C to +70°C (-40°F to +158°F)
Relative humidity 5% RH to 95% RH, noncondensing
Altitude < 5000 m (16404 ft.)
Noise (sound pressure, 27°C) Back-to-front airflow: < 56 dBA
Front-to-back airflow: < 58 dBA
Power specifications Power source type AC/DC
AC power input Rated input voltage range: 100 V AC to 240 V AC, 50/60 Hz
Maximum input voltage range: 90 V AC to 290 V AC, 47 Hz to 63 Hz
DC power input Rated voltage range: -48 V DC to -60 V DC
Maximum voltage range: -38.4 V DC to -72 V DC
High-voltage DC power input Not supported
Rated input current 350 W DC power (PDC-350WA series): 11 A (-48 V DC to -60 V DC)
600 W AC power (PAC-600WA series): 9 A (100 V AC to 240 V AC)
Chassis power consumption Maximum power consumption 245 W
Typical power consumption 145 W (100% throughput, SFP+ cables on 48 ports and QSFP+ cables on 6 ports, double power modules)
Chassis heat dissipation Maximum heat dissipation 836 BTU/hr
Typical heat dissipation 495 BTU/hr (100% throughput, SFP+ cables on 48 ports and QSFP+ cables on 6 ports, double power modules)
Surge protection
Power module:
AC: 6 kV in common mode and 6 kV in differential mode
DC: 4 kV in common mode and 2 kV in differential mode
Heat dissipation Heat dissipation mode Air cooling
Airflow Front-to-back or back-to-front, depending on the fan modules and power modules
Reliability and availability Power module backup 1+1 backup
Fan module backup 1+1 backup not supported
Hot swap Supported by all power modules and fan modules
Mean time between failures (MTBF) 49.08 years
Mean time to repair (MTTR) 1.77 hours
Availability 0.999995875
Technical specifications Processor 1.2 GHz, quad-core
DRAM Memory 2 GB
NOR Flash 16 MB
NAND Flash 1 GB
Stack Service port supporting the stack function 10GE optical ports and 40GE optical ports
Certification Safety standards compliance
EMC standards compliance
Environmental standards compliance

Huawei CloudEngine 6851-48S6Q-HI Features

l  CE6800 supports TRILL-based Layer 2 equal-cost paths, greatly improving links' load balancing capabilities. The network has a fat-tree architecture that enhances expansion.

l  CE6800 uses the Open Programmability System (OPS) embedded in the VRP8 software platform to provide programmability at the control plane. The OPS provides open APIs. APIs can be integrated with mainstream cloud platforms (including commercial and open cloud platforms) and third-party controllers. The OPS enables services to be flexibly customized and provides automatic management.

l  CE6800 series switches have energy-saving chips and can measure system power consumption in real time. Fan speed can be adjusted dynamically based on system consumption. These energysaving technologies reduce O&M costs and contribute to a greener data center.

l  CE6800 series switches support remote positioning. Operators can turn on remote positioning indicators on the switches they want to maintain, so that they can find switches easily in an equipment room full of devices.

Huawei CloudEngine 6851-48S6Q-HI Ordering Info

CE6850-HI-B00 CE6850-48S6Q-HI Switch (2*600W AC Power Module, 2*FAN Box, Port Side Exhaust)
CE6850-EI-B00 CE6850-48S4Q-EI Switch (2*350W AC Power Module, 2*FAN Box, Port side exhaust)
CE6850-EI-B01 CE6850-48T4Q-EI Switch (2*600W AC Power Module, 2*FAN Box, Port side exhaust)
CE6810-EI-B00 CE6810-48S4Q-EI Switch (2*600W AC Power Module, 2*FAN Box, Port side exhaust)
CE6810-LI-B00 CE6810-48S4Q-LI Switch (2*600W AC Power Module, 2*FAN Box, Port side exhaust)
CE6810-LI-B01 CE6810-48S-LI Switch (2*600W AC Power Module, 2*FAN Box, Port side exhaust)
CE6810-LI-B10 CE6810-LI Bundle 10 (CE6810-48S4Q-LI mainframe, 4*QSFP-40G-iSR4, Without Fan and Power Module)
CE6810-LI-B11 CE6810-LI Bundle 11 (CE6810-48S-LI mainframe, 2*QSFP-40G-iSR4, 8*SFP-10G-USR, Without Fan and Power Module)
CE6850U-48S6Q-HI CE6850U-48S6Q-HI Switch (48-Port 10GE SFP+, support  2/4/8G FC, 6-Port 40GE QSFP+, Without Fan and Power Module)
CE6850U-24S2Q-HI CE6850U-24S2Q-HI Switch (24-Port 10GE SFP+, support  2/4/8G FC, 2-Port 40GE QSFP+, Without Fan and Power Module)
CE6851-48S6Q-HI CE6851-48S6Q-HI Switch (48-Port 10GE SFP+, 6-Port 40GE QSFP+, Without Fan and Power Module)
CE6850-48T6Q-HI CE6850-48T 6Q-HI Switch (48-Port 10GE RJ45, 6-Port 40GE QSFP+, Without Fan and Power Module)
CE6850-48S6Q-HI CE6850-48S6Q-HI Switch (48-Port 10GE SFP+, 6-Port 40GE QSFP+, Without Fan and Power Module)
CE6850-48S4Q-EI CE6850-48S4Q-EI Switch (48-Port 10GE SFP+, 4-Port 40G QSFP+, Without Fan and Power Module)
CE6850-48T4Q-EI CE6850-48T4Q-EI Switch (48-port 10GE RJ45, 4-port 40G QSFP+, Without Fan and Power Module)
CE6810-48S4Q-EI CE6810-48S4Q-EI Switch (48-Port 10GE SFP+, 4-Port 40G QSFP+, Without Fan and Power Module)
CE6810-48S4Q-LI CE6810-48S4Q-LI Switch (48-Port 10GE SFP+, 4-Port 40G QSFP+, Without Fan and Power Module)
CE6810- CE6810-32T16S4Q-LI Switch (32-port 10GE RJ45, 16-Port 10GE SFP+, 4-Port 40G
32T16S4Q-LI QSFP+, Without Fan and Power Module)
CE6810-48S-LI CE6810-48S-LI Switch (48-Port 10GE SFP+, Without Fan and Power Module)
CE6810-24S2Q-LI CE6810-24S2Q-LI Switch (24-Port 10GE SFP+, 2-Port 40G QSFP+, Without Fan and Power Module)
FAN-060A-F Fan box (F, FAN panel side intake )
FAN-060A-B Fan box (B, FAN panel side exhaust)
FAN-40EA-F Fan box (EA, Front to Back, FAN panel side intake)
FAN-40EA-B Fan box (EA, Back to Front, FAN panel side exhaust)
PAC-600WB-F 600W AC&240V DC Power Module (Power panel side intake)
PAC-600WB-B 600W AC&240V DC Power Module (Power panel side exhaust)
PHD-600WA-F 600W HVDC Power Module (Power panel side intake)
PHD-600WA-B 600W HVDC Power Module (Power panel side exhaust)
PAC-350WA-F 350W AC Power Module (Front to Back, Power panel side intake)
PAC-350WA-B 350W AC Power Module (Back to Front, Power panel side exhaust)
PAC-600WA-F 600W AC Power Module (Front to Back, Power panel side intake)
PAC-600WA-B 600W AC Power Module (Back to Front, Power panel side exhaust)
PDC-350WA-F 350W DC Power Module (Front to Back, Power panel side intake)
PDC-350WA-B 350W DC Power Module (Back to Front, Power panel side exhaust)
CE68-LIC-VXLAN CloudEngine 6800 VXLAN Function
CE68-LIC-FCF16 CloudEngine 6800 FCF 16 Ports
CE68-LIC-FCFAL CloudEngine 6800 FCF All Ports
CE6800-LIC-NPV CloudEngine 6800 FCOE NPV Function

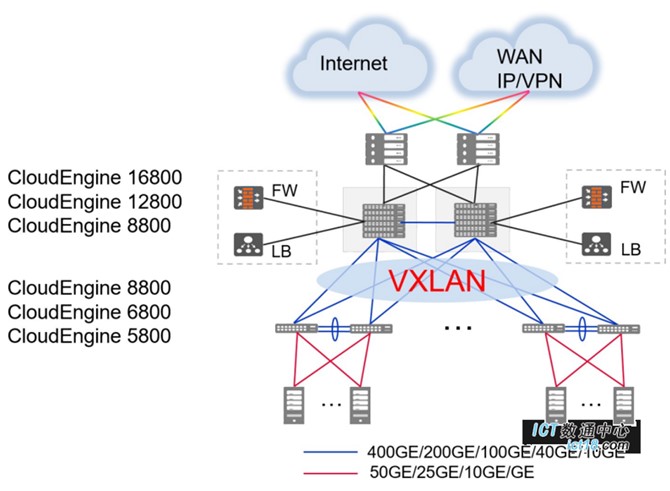

Huawei CloudEngine 6851-48S6Q-HI Networking and Applications
