S5710-108C-PWR-HI
2381.98

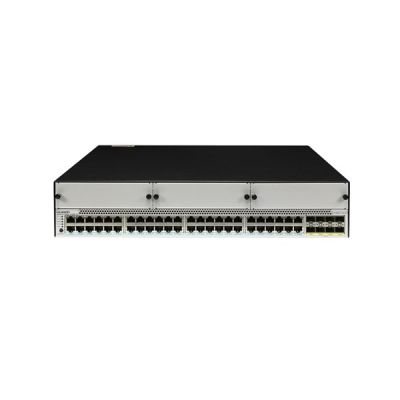

S5710-108C-PWR-HI

$2,381.98

Advanced Gigabit Ethernet switches with 48x10/100/1000BASE-T ports and 8 x 10GE SFP+ ports Double swappable AC power supplies

- +
Availability:In stock
SKU Huawei S5710-108C-PWR-HI
Brand Huawei
Details

Huawei S5710-108C-PWR-HI is an advanced Gigabit Ethernet switch with 48x10/100/1000BASE-T ports and 8 x 10GE SFP+ ports and Double swappable AC power supplies. It has Three slots on the front panel: support 16x1000Base-X SFP subcard and 16x10/100/1000Base-T subcard qne One slot at the real panel: supports 4x40GE QSFP+ subcard and 4x10GE SFP+ subcard. Based on next-generation, high-performance hardware and Huawei Versatile Routing Platform (VRP), S5700-HI provides excellent NetStream function, flexible Ethernet networking, comprehensive VPN tunneling technologies, diversified security mechanisms, mature IPv6 features, and are easy to manage and maintain. All these features make the S5700-HI the best choice as an access switch on large and medium-sized campus networks or data centers and aggregation switch on small campus networks.
Furthermore, S5700-HI allows users in different VPNs to connect to the same switch and isolates users through multi-instance routing. The S5700-HI supports Multi-Protocol Label Switching (MPLS) QoS, MPLS Traffic Engineering (TE), Virtual Leased Line (VLL), Virtual Private LAN Service (VPLS), and Layer 3 Virtual Private Network (L3VPN). They can provide high-quality private line access services for enterprises and are cost-effective case-shaped MPLS switches.

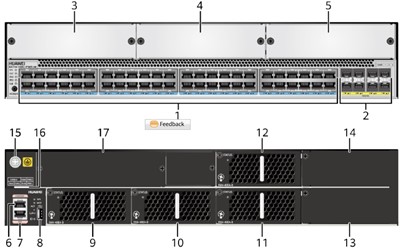

S5710-108C-PWR-HI Huawei S5700-HI Series Switches 02354043 48x10/100/1000BASE-T ports and 8 x 10GE SFP+ ports YCICT

1, Forty-eight PoE+ 10/100/1000BASE-T ports 2, Eight 10GE SFP+ ports
3, Front card slot 1 4, Front card slot 2
5, Front card slot 3 6, One console port
7, One ETH management port 8, One USB port
9, Fan slot 1 10, Fan slot 2
11, Fan slot 3 12, Fan slot 4
13, Power module slot 1 14, Power module slot 2
15, Ground screw 16, ESN label
17, Rear card slot

Huawei S5710-108C-PWR-HI Specifications

Item Description
Part number 2354043
Port 48x10/100/1000BASE-T ports and 8 x 10GE SFP+ ports
Memory (RAM) 1 GB
Flash 200 MB
Mean time between failures (MTBF) 28.16 years when no interface card is configured, 27 years when a 16-port GE optical card is configured, 25.98 years when a 16-port GE electrical card is configured, 26.95 years when a 4-port 10GE card is configured, 26.69 years when a 4-port 40GE card is configured.
Mean time to repair (MTTR) 2 hours
Availability > 0.99999
Service port surge protection Common mode: ±1 kV
Power supply surge protection ±2 kV in differential mode, ±4 kV in common mode
Dimensions (H x W x D) 86.1 mm x 442.0 mm x 470.0 mm (3.4 in. x 17.4 in. x 18.5 in.)
When 1150 W power modules are installed, they stretch out from the chassis. Therefore, the total depth of the switch changes to 557.3 mm (21.94 in.).
Weight Empty:  12 kg (26.46 lb)
Fully configured:  18 kg (39.68 lb)
Stack ports V200R005C03 and earlier version: not supported
V200R005C03: 8-port 10GE SFP+ ports on the front panel
RPS Not supported
PoE Supported
Rated voltage range 100 V AC to 240 V AC, 50/60 Hz
Maximum voltage range 90 V AC to 264 V AC, 47 Hz to 63 Hz
Maximum power consumption (100% throughput, 100% PoE loads, full speed of fans) Using 350 W power modules: 240 W
Using two 1150 W power modules: 1680 W (system power consumption: 240 W, PoE: 1440 W)
Operating temperature 0°C to 45°C (32°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)
Storage temperature -40°C to +70°C (-40°F to +158°F)
Noise under normal temperature (27°C, sound power) < 67.3 dB(A)
Relative humidity 5% to 95%, noncondensing
Operating altitude 0-5000 m (0-16404 ft.)
Certification EMC certification
Safety certification
Manufacturing certification

Huawei S5710-108C-PWR-HI Features

l  S5700-HI supports Smart Link and Virtual Router Redundancy Protocol (VRRP), which implement backup of uplinks. One S5700-HI switch can connect to multiple aggregation switches through multiple links, significantly improving reliability of access devices. In addition, the S5700-HI provides multiple connection fault detection mechanisms, including Ethernet OAM (IEEE 802.3ah/802.1ag /ITU Y.1731) and Bidirectional Forwarding Detection (BFD). The S5700-HI (except S5710-HI) provides hardware-based 3.3 ms Ethernet OAM detection cycle and 10 ms BFD detection cycle.

l  S5700-HI provides the NetStream function and can function as a NetStream data exporter. It periodically collects data traffic statistics, encapsulates the statistics in standard V5, V8, or V9 packets, and sends the packets to the NetStream data collector according to NetStream configuration. The collected statistics are then processed to dynamically generate reports, analyze traffic attributes, and generate alarms on abnormal traffic. The NetStream function helps you optimize network structure and adjust resource deployment in a timely manner.

l  S5700-HI supports Smart Link and Virtual Router Redundancy Protocol (VRRP), which implement backup of uplinks. One S5700-HI switch can connect to multiple aggregation switches through multiple links, significantly improving reliability of access devices. In addition, the S5700-HI provides multiple connection fault detection mechanisms, including Ethernet OAM (IEEE 802.3ah/802.1ag /ITU Y.1731) and Bidirectional Forwarding Detection (BFD). The S5700-HI (except S5710-HI) provides hardware-based 3.3 ms Ethernet OAM detection cycle and 10 ms BFD detection cycle.

Huawei S5710-108C-PWR-HI Ordering Info

Part No Description
2353631 S5700-28C-HI-24S (24xGig SFP, with 1 interface slot)
2353630 S5700-28C-HI (24xEthernet 10/100/1000 ports, with 1 interface slot)
2354043 S5710-108C-PWR-HI (48xEthernet 10/100/1000 ports, 8x10 Gig SFP+, PoE+, with 4 interface slots)
03021JYN 2x10 Gig SFP+ Interface Card (used in S5700-HI series)
03021JYM 4x10 Gig SFP+ Interface Card (used in S5700-HI series)
03021JYP 4xGig SFP Interface Card (used in S5700-HI series)
03021PED 16xGig SFP Interface Card (used in S5710-HI series)
03021NXB 16xEthernet 10/100/1000 ports Interface Card (used in S5710-HI series)
03021NKW 4x40 Gig QSFP+ Interface Card (used in S5710-HI series)
03021PHQ 4x10 Gig SFP+ Interface Card (used in S5710-HI series)
02310GBM 170W DC Power Module (used in S5700-HI series)
2130966 170W AC Power Module (used in S5700-HI series)
2130971 350W AC Power Module (used in S5710-HI series)
2130984 1150W AC PoE Power Module

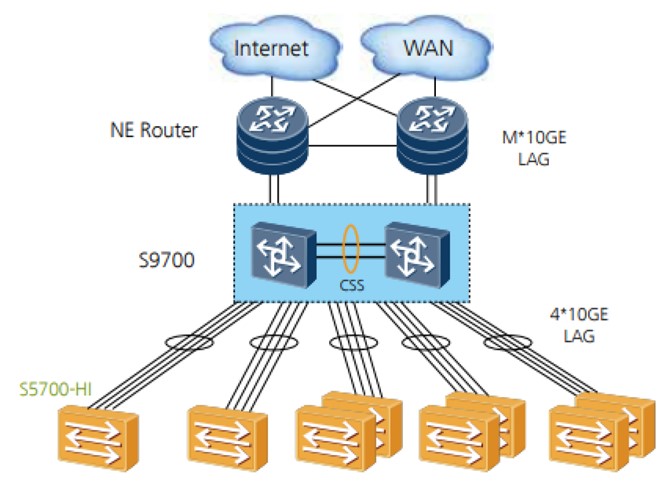

Huawei S5710-108C-PWR-HI Networking and Applications

S5710-108C-PWR-HI Huawei S5700-HI Series Gigabit Switches 48x10/100/1000BASE-T ports and 8 x 10GE SFP+ ports YCICT
