BIC-2200-24
391.47
Details

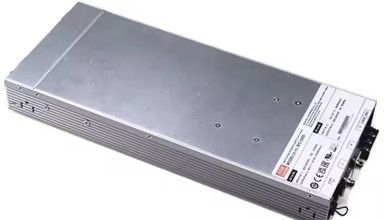

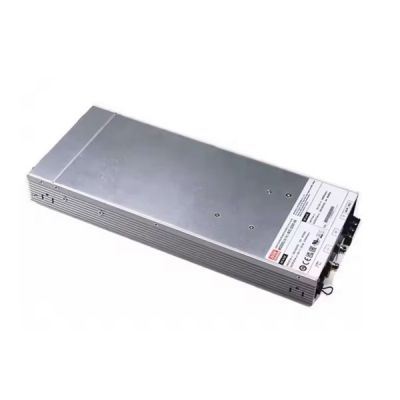

Meanwell BIC-2200-24 is a 2.2KW bidirectional power supply with energy recycle function. The unit is designed fully digital and 1U height. BIC-2200-24 aims to control the power transferred from AC grid to DC and DC to AC grid for energy recycle. Meanwhile, the implementation of a bidirectional power supply of the BIC-2200 allows battery manufactures to charge the battery from AC grid and recycle the DC energy back into AC grid in one single unit. With built-in functions such as active current sharing, remote ON/OFF control and CANBus model available. BIC-2200-24 offers vast design flexibility for battery formation & test equipment, V2G (Vehicle-to-grid) system, charging station, laser system and kinetic recovery system.
Meanwell BIC-2200-24 Encoding
| BIC | Series Name |
| 2200 | Output Wattage |
| 24 | Output Voltage ( 12V/24V/48/96V) |
| □ | Communications Protocol Option |
| Blank | None Protocol |
| CAN | CANBus Protocol |
Meanwell BIC-2200-24 Specifications
| Model | BIC-2200-24 | ||
| AC to DC Direction | Output | DC VOLTAGE | 24V |
| RATED CURRENT | 90A | ||
| RATED POWER | 2160W | ||
| FULL POWER VOLTAGE RANGE | 24-28V | ||
| RIPPLE & NOISE (max.) | 260mVp-p | ||
| VOLTAGE ADJ. RANGE | 19-28V | ||
| CURRENT RANG E | 0-90A | ||
| VOLTAGE TOLERANCE | ±1% | ||
| LINE REGULATION | ±0.5% | ||
| LOAD R EGULATION | ±0.5% | ||
| SETUP, RISE TIME | 1800ms, 60ms/230VAC at full load | ||
| Input | AC VOLTAGE RANGE | 180 ~ 264VAC | |
| FRE QUENCY RANGE | 47 ~ 63Hz | ||
| POWER FACTOR (Typ.) | 0.98/230VAC at full load | ||
| EFFICIENCY (Typ.) | 93.00% | ||
| AC CURRENT (Typ.) | 11A/230VAC | ||
| INRUSH CURRENT (Typ.) | COLD START 35A/230VAC | ||
| LEAKAG E CURRE NT | <2mA/230VAC | ||
| TOTAL HARMONIC DISTORTION | <3%(@load=100%/230VAC) | ||
| DC to AC Direction | Input | RATED INPUT POWER | 1800W |
| FULL POWER VOLTAGE RANGE | 24-28V | ||
| DC VOLTAGE RANGE | 19-28V | ||
| MAX. INPUT CURRENT | 75A% | ||
| Output | RATED OUTPUT POWER (Typ.) (at230V, 50Hz) | 1725VA | |
| VOLTAG E RANGE | 180 ~ 264VAC determined by AC main | ||
| FREQUENCY RANGE | 47 ~ 63Hz determined by AC main | ||
| AC CURRENT (Typ.) | 7.5A/230VAC | ||
| POWER FACTOR (Typ.) | 0.99/230VAC at full load | ||
| EFFICIENCY (Typ.) | 93.00% | ||
| TOTAL HA RMONIC DISTORTION | <3%(@load=100%/230VAC) | ||
| PROTECTION | OVERLOAD | 105 ~ 115% rated output power | |
| AC to DC Constant current limiting, shut down DC O/P voltage 5 sec. after DC O/P voltage is down low, re-power on to recover | |||
| DC to AC Not accurable with constant power design | |||
| SHORT CIRCUIT | Shut down O/P current, re-power on to recover | ||
| OVER VOLTAGE | 33.6-39.2V | ||
| Protection type : Shut down O/P voltage, re-power on to recover | |||
| OVER TEMPERATURE | Shut down O/P voltage, recovers automatically after temperature goes down | ||
| ISLANDING PROTECTION | Shut down AC O/P voltage, re-power on to recover | ||
| FUNCTION | REMOTE ON-OFF CONTROL | By electrical signal or dry contact Short: Power ON Open: Power OFF Please refer to the Function Manual infollowing | |
| BIDIRECTION SWITCH TIME (Typ.) | 1ms | ||
| ALARM SIGNAL | Isolated TTL signal output for T-Alarm, DC-OK and Fault. Please refer to the Function Manual in following pages | ||
| AUXILIARY POWER | 12Vat0.5A tolerance±5%, ripple 150mVp-p | ||
| BATTERY MOD E RATEDCURRENT (default) (AC to DC DC to AC) |
80A | ||
| Can be adjusted by communication | |||
| 64A | |||
| Can be adjusted by communication | |||
| ENVIRONMENT | WORKING TEMP | -30 ~ +70℃(Refer to "Derating Curve") | |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | ||
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 45℃) | ||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | ||
| SAFETY &EMC | SAFETY STANDARDS | UL62368-1, CAN/CSA C22.2 No.62368-1,TUV BS EN/EN62368-1, EAC TP TC 004, IEC62477-1(by request) approved | |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:500VAC | ||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||
| EMC EMISSION | BS EN/EN55032 | ||
| EMC IMMUNITY | BS EN/EN55035, BS EN/EN61000-6-2 | ||
| Others | MTBF | 462.9K hrs min. Telcordia SR-332 (Bellcore) ; 46K hrs min. MIL-HDBK-217F (25℃) | |
| DIMENSION | 330*140*41mm (L*W*H) | ||
| PACKING | 2.9Kg; 4pcs/12.6Kg/1.25CUFT | ||
Meanwell BIC-2200-24 Features
l 1U low profile design
l 5 years warranty
l Ultrafast switching time between AC/DC and DC/AC of 1ms
l CB/TUV/UL 62368-1 certified, and design refer to IEC 62477regulation
l Active current sharing up to 11000W(4+1)
l <3% Low THDi in both conversion mode
l Force charging and discharging mode with CANBus model
l Complete protections: Anti-islanding protection, AC fail protection, DC OVP, OLP, OCP, OTP
l Full digital design with 93% conversion efficiency for both AC/DC and DC/AC conversion
Meanwell BIC-2200-24 Applications
l Battery cell formation & grading
l V2G (Vehicle-to-grid) system
l Marine battery charger module
l Electric scooter or vehicle charger station
l Kinetic energy recovery system
l Electrolysis system
l Wastewater treatment system

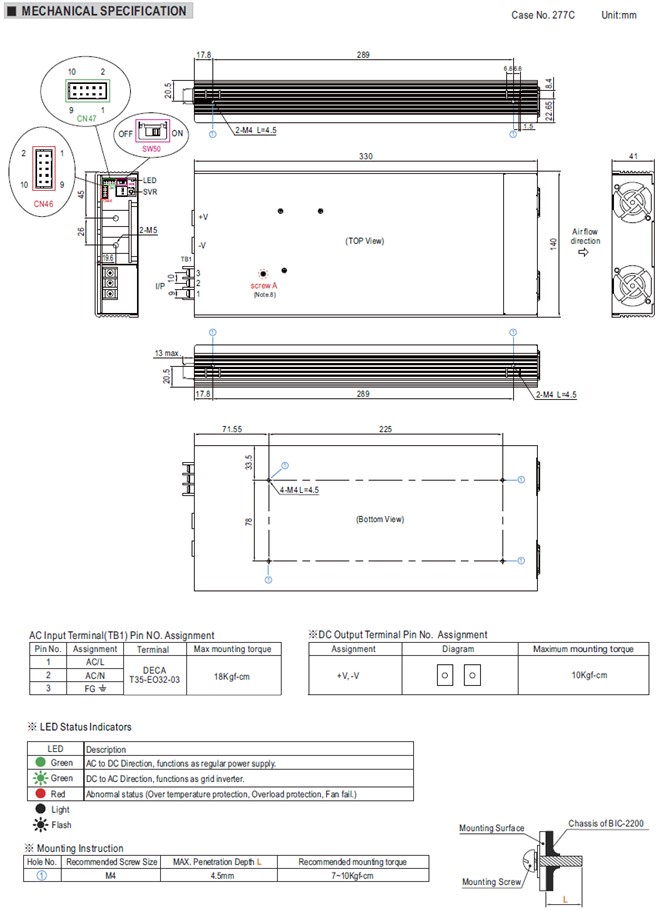

Meanwell BIC-2200-24 Mechanical Diagram
