APC-8-350
5.27

APC-8-350

$5.27

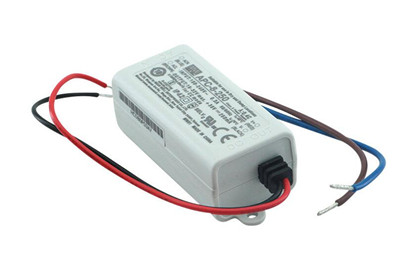

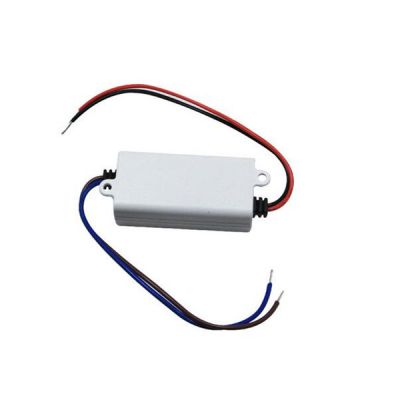

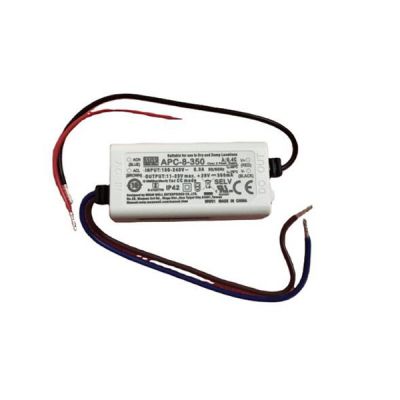

Meanwell 8W Single Output Switching Power Supply with 350mA11-23V8.05W300 mVp-p29V±8.0%

- +
Availability:In stock
SKU Meanwell APC-8-350
Brand Meanwell
Details

Meanwell APC-8-350 is one 8W AC/DC constant current mode single output LED power supply with 350mA11-23V8.05W300 mVp-p29V. The item accepts the full range input 90~264VAC. And moreover, it provides the model with the output current 350mA, which the small wattage LED applications use most frequently. Apart from them, the unit is designed Class Ⅱ(without FG pin) and adopts the 94V-0 flame retardant plastic enclosure, Thanks to its high reliability, excellent quality, and competitive price, Meanwell APC-8-350 is ideally suitable for the entry-level LED applications.

Meanwell APC-8-350 Meanwell APC-8 series price and specs 8W AC/DC constant current mode single output LED power ycict

Meanwell APC-8-350 Encoding

APC Series Name
8 Output Wattage
350 Output Current

Meanwell APC-8-350 Specifications

Model APC-8-350
Output RATED CURRENT 350mA
OPERATING VOLTAGE RANGE 11-23V
RATED POWER 8.05W
RIPPLE & NOISE (max.)  300 mVp-p
NO LOAD OUTPUT VOLTAGE 29V
CURRENT ACCURACY ±8.0%
SETUP, RISE TIME 500ms, 180ms / 230VAC 3000ms, 150ms / 115VAC at full load
HOLD UP TIME  20ms/230VAC at full load
Input VOLTAGE RANGE 90 ~ 264VAC 127 ~ 370VDC (Note.5)
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR (Typ.) 0.95/230VAC 0.98/115VAC at full load
EFFICIENCY (Typ.)  81.50%
AC CURRENT 0.15A/230VAC;0.3A/115VAC
INRUSH CURRENT (Typ. ) COLD START 70A(twidth=120μs measured at 50% Ipeak) at 230VAC
LEAKAGE CURR ENT 0.25mA / 240VAC
PROTECTION SHORT CIRCUIT Hiccup mode, recovers automatically after fault condition is removed
ENVIRONMENT WORKING TEMP -30 ~ 70(Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +80, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.2%/ (0 ~45)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY &EMC SAFETY STANDARDS UL8750,CSA C22.2 No.250.0-08, BIS IS15885, EAC TP TC 004; BS EN/EN 62368-1 approved
WITHSTAND VOLTAGE I/P-O/P:3.75KVAC
ISOLATION RESISTANCE I/P-O/P:>100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55032,BS EN/EN61000-3-2,BS EN/EN61000-3-3, EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN55024,BS EN/EN61000-4-2,3,4,5,6,8,11; light industry level(surge 2KV), EAC TP TC 020
Others MTBF 14511.7K hrs min. Telcordia SR-332 (Bellcore) ; 2275.9K hrs min. MIL-HDBK-217F (25)
DIMENSION 60*30*23.5mm(L*W*H)
PACKING 0.05Kg;144pcs/7.6Kg/0.70CUFT

Meanwell APC-8-350 Features

l  2 years warranty

l  IP42 design

l  Constant current design

l  ClassⅡpower unit, no FG

l  Fully isolated plastic case

l  Small and compact size

l  Cooling by free air convection

l  Protection: Short circuit

l  100% full load burn-in test

l  Low cost/High reliability

l  Universal AC input/Full range

l  No load power consumption <0.5W

Meanwell APC-8-350 Features Meanwell APC-8-350 price and specs 8W AC/DC constant current mode single output LED power ycict

Meanwell APC-8-350 Mechanical Diagram

Meanwell APC-8-350 Mechanical Diagram Meanwell APC-8-350 price and specs 8W AC/DC constant current mode single output LED power ycict
