XLG-240-H
25.48
Details

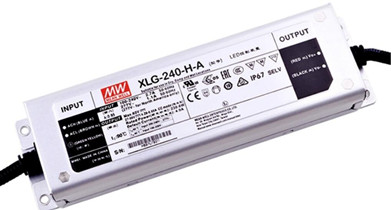

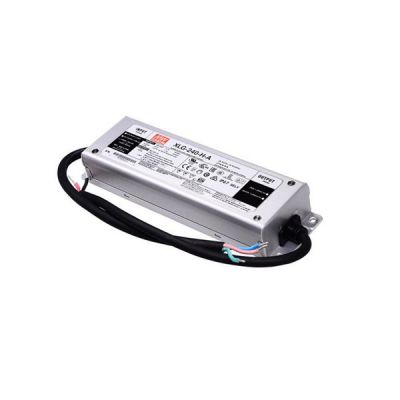

Meanwell XLG-240-H is 240W LED AC/DC driver with 4900mA239.6W27-56V4280-6660mA60V2400-6660mA±4.0% 500ms/230VAC, 1200ms/115VAC. The unit highlights constant power mode working from 100~305VAC with different rated current ranging between 700mA and 6.66A. As the efficiency reaches high up to 93% under no fan design, XLG-240-H could operate for -40℃ ~+90℃ case temperature via free air convection. What’s more, the metal housing design and IP67ingress protection level allows to satisfy both indoor and outdoor applications. The innovative environment-adaptive capability permits to reliably light on the LEDs for all kinds of application environments in almost any spots that may install LED luminaires globally. Besides them, XLG-240-H is designed with the latest version of lEC61347/GB7000.1-2015 and UL8750 international safety regulations. The output and dimming circuit are also completely in accordance with the new regulations with isolation to ensure the user and luminaire system safety during installation. In light of its longevity, high efficiency and excellent reliability, Meanwell XLG-240-H is an ideally suitable solution for the optimal design flexibility for LED lighting system.
Meanwell XLG-240-H Encoding
| XLG | Series Name |
| 240 | Rated Wattage |
| I | I: for India version ( by request with input over voltage protction) |
| □: For standard version | |
| L | Rated output voltage (L/M/H types) |
| □ | Functions options |
| Blanks | lo and Vo fixed. (For harsh envirenment) |
| A | lo adjustable via built-in potentiometer |
| AB | lo adjustable via built-in potentiometer + 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) |
Meanwell XLG-240-H Specifications
| Model | XLG-240□-H-□ | |
| OUTPUT | RATED CURRENT (Default) | 4900mA |
| RATED POWER | 239.6W | |
| CONSTANT CURRENT REGION | 27-56V | |
| FULL POWER CURRENT RANGE | 4280-6660mA | |
| OPEN CIRCUIT VOLTAGE (max.) | 60V | |
| CURRENT ADJ. RANGE | Adjustable for A/AB-Type only (via the built-in potentiometer) | |
| 2400-6660mA | ||
| CURRENT RIPPLE | 5.0%(@ Load>=50% rated voltage) | |
| CURRENT TOLERANCE | ±4.0% | |
| SET UP TIME | 5 0 0 ms/230VAC, 1200ms/115VAC | |
| Input | VOLTAGE RANGE | 100 ~ 305VAC 142 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" and “ DRIVING METHODS OF LED MODULE"section) |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR (Typ) | PF>=0.97 / 115VAC, PF>=0.95 / 230VAC, PF>=0.92 / 277VAC at full load (Please refer to "Power Factor Characteristic" section) |
|
| TOTAL HARMONIC DISTORTION | THD< 10% (@ load>=50% at 115VAC/230VAC ,@load>=75% at 277VAC) Please refer to “TOTAL HARMONIC DISTORTION (THD)” section |
|
| EFFICIENCY (Typ.) | 91.00% | |
| AC CURRENT | 2.7A / 115VAC 1.3A / 230VAC 1.1A / 277VAC | |
| INRUSH CURRENT(Typ.) | COLD START 85A(twidth=500μs measured at 50% Ipeak) at 230VAC; Per NEMA 410 | |
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 2 unit(circuit breaker of type B) / 4 units(circuit breaker of type C) at 230VAC | |
| LEAKAGE CURRENT | <0.75mA / 277VAC | |
| STANDBY POWER CONSUMPTION | Standby power consumption <0.5W for AB-Type(Dimming OFF)(for standard version) | |
| PROTECTION | SHORT CIRCUIT | Hiccup mode or constant current limiting, recovers automatically after fault condition is removed |
| OVER VOLTAGE | 61-85V | |
| Shut down output voltage, re-power on to recovery | ||
| INPUT OVER VOLTAGE | 320 ~ 390VAC (Shut down output when the input exceeds protection voltage,recovers automatically after fault condition is removed) | |
| Can survive input voltage stress of 440Vac for 48 hours @ tc 75℃ max | ||
| OVER TEMPERATURE | Shut down output voltage, re-power on to recover | |
| ENVIRONMENT | WORKING TEMP | Tcase=-40 ~ +90℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section) |
| MAX. CASE TEMP | Tcase=+90℃ | |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 60℃) | |
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |
| SAFETY&EMC | SAFETY STANDARDS | UL8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384; GB19510.1, GB19510.14;EAC TP TC 004; J61347-1(H29), J61347-2-13(H29),KC61347-1,KC61347-2-13,IS15885(Part2/Sec13); NOM-058-SCFI-2017(except for Blank type);IP67 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC IMMUNITY | BS EN/EN61547 | |
| Others | MTBF | 2496.2K hrs min. Telcordia SR-332(Bellcore) ; 219.8K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 219*63*35.5mm (L*W*H) | |
| PACKING | 1Kg;16pcs / 16Kg / 0.77CUFT | |
Meanwell XLG-240-H Features
l Wide input range 100~305V AC (Class I)
l Protection functions: OVP/SCP/OCP/OTP
l Life time >50,000 hrs. and 5 years warranty
l Metal case with IP67, suitable for outdoor application
l Surge protection with 6KV/4KV (10KV/6KV optional)
l 3 in 1 dimming function (Dim to off and isolation design)
l Full power output at 70~ 100% Constant power mode operation
l India (EESL) version, can survive input voltage stress of 440Vac for 48 hours
Meanwell XLG-240-H Applications
l Skyscraper lighting
l Street lighting
l Floodlight Lighting
l Stage lighting
l Fishing lighting
l Horticulture lighting
l Bay lighting
l Type HL for use in class l, Division 2
Meanwell XLG-240-H Mechanical Diagram
