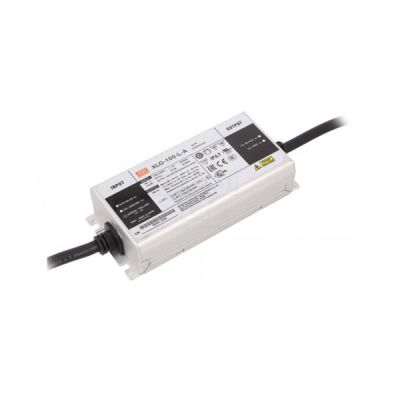

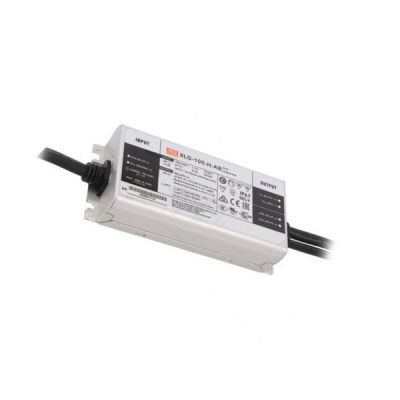

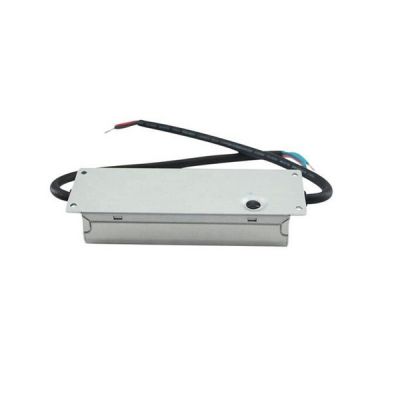

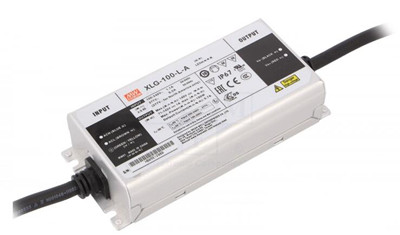

XLG-100-L
21.53

XLG-100-L

$21.53

Meanwell 100W Constant Power Mode LED Driver with 700mA100W71-142V700-1050mA149V350-1050mA3.0% (@rated current)±5.0%

- +
Availability:In stock
SKU Meanwell XLG-100-L
Brand Meanwell
Details

Meanwell XLG-100-L is 100W LED AC/DC driver with 700mA100W71-142V700-1050mA149V350-1050mA3.0% (@rated current) ±5.0%. It outstands constant power mode from 100~305VAC with different rated current ranging between 700mA and 8000mA. As the efficiency reaches high up to 92% with fanless design, XLG-100-L is able to operate for -40℃~+90℃ case temperature under free air convection. The metal housing design and IP67 ingress protection level permit it to fit both indoor and outdoor applications. Moreover, the innovative environment-adaptive capability permits to reliably light on the LEDs for all kinds of application environments in almost any spots that may install LED luminaires globally. Apart from them, the product complies with the latest version of IEC61347/GB7000.1-2015 and UL8750 international safety regulations. The output and dimming circuit are also completely in accordance with the new regulations with isolation to ensure the safety of both user and luminaire system during installation. In view of its longevity, high efficiency and excellent reliability, Meanwell XLG-100-L is an ideally suitable solution for the optimal design flexibility for LED lighting system.

Meanwell XLG-100-L price and specs AC/DC Constant Power Mode AC/DC LED Driver XLG-100-12/24 XLG-100-L/H IP67 ycict

Meanwell XLG-100-L Encoding

XLG Series Name
100 Rated  Wattage
I I: for India version ( by request with input over voltage protction)
: For standard version
L Rated output voltage ( 12/24V or L/H types)
Functions options
Blanks lo and Vo fixed. (For harsh envirenment)
A lo adjustable via built-in potentiometer
AB lo adjustable via built-in potentiometer + 3 in 1 dimming function (O~1OVdc, 10V PWM signal and resistance)

Meanwell XLG-100-L Specifications

Model XLG-100-L-
OUTPUT RATED CURRENT (Default) 700mA
RATED POWER 100W
CONSTANT CURRENT REGION 71-142V
FULL POWER CURRENT RANGE 700-1050mA
OPEN CIRCUIT VOLTAGE (max.) 149V
CURRENT ADJ. RANGE 350-1050mA
CURRENT RIPPLE 3.0% (@rated current)
CURRENT TOLERANCE ±5.0%
SET UP TIME 500ms/230VAC, 1200ms/115VAC
Input VOLTAGE RANGE 100 ~ 305VAC 142VDC ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" ang “ DRIVING METHODS OF LED MODULE"section)
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR (Typ) PF>=0.97 / 115VAC, PF>=0.95 / 230VAC, PF>=0.92 / 277VAC at full load (Please refer to "Power Factor Characteristic" section)
TOTAL HARMONIC DISTORTION THD< 10% (@ load>=50% at 115VAC/230VAC ,@load>=75% at 277VAC)
Please refer to “TOTAL HARMONIC DISTORTION (THD)” section
EFFICIENCY (Typ.) 92.00%
AC CURRENT 1.1A / 115VAC 0.5A / 230VAC 0.42A / 277VAC
INRUSH CURRENT(Typ.) COLD START 50A(twidth=300μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER 8 unit(circuit breaker of type B) / 14 units(circuit breaker of type C) at 230VAC
LEAKAGE CURRENT <0.75mA / 277VAC
STANDBY POWER CONSUMPTION Standby power consumption <0.5W for AB-Type(Dimming OFF)(for standard version)
PROTECTION OVER POWER 105 ~ 150%
Hiccup mode, recovers automatically after fault condition is removed
SHORT CIRCUIT Hiccup mode or Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE 160 ~ 220V
Shut down output voltage, re-power on to recover
INPUT OVER VOLTAGE 320 ~ 390VAC (Shut down output voltage when the input voltage exceeds protection voltage, recovers automatically after fault condition is removed
Can survive input voltage stress of 440Vac for 48 hours @ tc 75 max
OVER TEMPERATURE Shut down output voltage, re-power on to recover
ENVIRONMENT WORKING TEMP Tcase=-40 ~ +90 (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP Tcase=+90
WORKING HUMIDITY 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +80, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 60)
VIBRATION 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY&EMC SAFETY STANDARDS UL8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384;
GB19510.1,GB19510.14; EAC TP TC 004;J61347-1(H29), J61347-2-13(H29),KC61347-1,KC61347-2-13,
IS15885(Part2/Sec13)(for XLG-100I type only);NOM-058-SCFI-2017(except for Blank type); IP67 approved
WITHSTAND VOLTAGE I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC IMMUNITY BS EN/EN61547
Others MTBF 2782.6K hrs min. Telcordia SR-332 (Bellcore) ; 276.4Khrs min. MIL-HDBK-217F (25)
DIMENSION 140*63*32mm (L*W*H)
PACKING 0.58Kg;24pcs /15Kg /0.85CUFT

Meanwell XLG-100-L Features

l  Comply with UL Class P

l  Wide input range 100~305VAC (Class I )

l  LVLE (H type), Class 2(24V) power unit

l  Life time >50,000 hrs. and 5 years warranty

l  Protection functions: OVP/SCP/OCP/OTP

l  Metal case with IP67, suitable for outdoor application

l  Surge protection with 6KV/4KV (1 OKV/6KV optional)

l  3 in 1 dimming function (Dim to off and Isolation design)

l  Full power output at 70~ 100% Constant power mode operation

l  India (EESL) version with Input Over Voltage Protection can survive input voltage stress of 440Vac for 48 hours

Meanwell XLG-100-l price and datasheet Constant Power Mode AC/DC LED Driver XLG-100-12/24 XLG-100-L/H IP67 100w ycict

Meanwell XLG-100-L Applications

l  Skyscraper lighting

l  Street lighting

l  Floodlight Lighting

l  Stage lighting

l  Fishing lighting

l  Horticulture lighting

l  Bay lighting

l  DMX power supply

l  Type HL for use in class I , Division 2

Meanwell XLG-100-L Mechanical Diagram

Meanwell XLG-100-l price and specs Constant Power Mode AC/DC LED Driver XLG-100-12/24 XLG-100-L/H IP67 100w ycict

Meanwell XLG-100-l price and specs 100w Constant Power Mode AC/DC LED Driver XLG-100-12/24 XLG-100-L/H IP67 ycict
