WDR-480-48
145.28

WDR-480-48

$145.28

Meanwell 480W Single Output Industrial DIN RAIL Power Supply with 48V10A0-10A480W150mVp-p48-55V±1.0%±0.5%±1.0%

- +
Availability:In stock
SKU Meanwell WDR-480-48
Brand Meanwell
Details

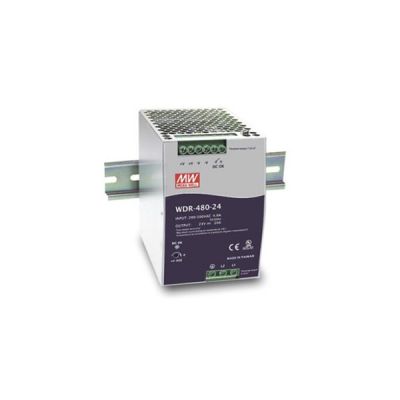

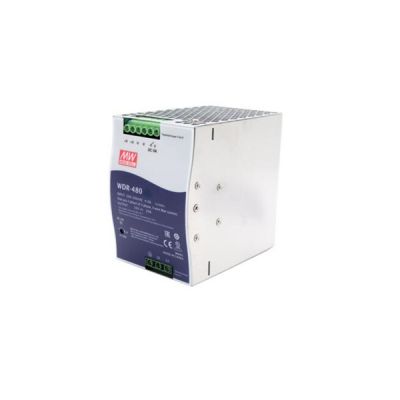

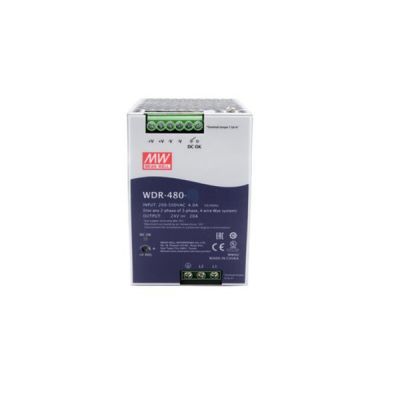

Meanwell WDR-480-48 is 480W Single Output Industrial DIN RAIL Power Supply with 48V10A0-10A480W150mVp-p48-55V. The unit adapts to be installed on TS-35/7.5 or 15 mounting rails. Since the shape is designed 85.5 mm in width, it could save a lot of space inside the cabinet. Additionally, WDR-480-48 adopts Single and two phase wide input range 180~550VAC, and conforms to BS EN/EN61000-6-2, the norm the European Union regulates for harmonic current. Meanwhile,WDR-480-48 is designed with metal housing that improves the power dissipation. With the high efficiency reaching up to 92% and low power dissipation, WDR-480-48 could operate at the ambient temperature between -30℃ and 70℃ under free air convection. Apart from them, the product provides various protections like Short circuit/Overload/Over voltage/Over temperature. The complete protection functions and relevant certificates for industrial control apparatus (UL508, EAC TP TC 004 approved, IEC62368-1 CB) permit Meanwell WDR-480-48 a very competitive power supply solution for industrial applications.

Meanwell WDR-480-48 Specifications

Meanwell WDR-480-48 Specifications

Model WDR-480-48
Output DC VOLTAGE 48V
RATED CURRENT 10A
CURRENT RANGE 0-10A
RATED POWER  480W
RIPPLE & NOISE (max.)  150mVp-p
VOLTAGE ADJ. RANGE 48-55V
VOLTAGE TOLERANCE ±1.0%
LINE REGUL ATION ±0.5%
LOAD REGULATION ±1.0%
SETUP, RISE TIME 800ms, 150ms/400VAC 2000ms, 150ms/230VAC at full load
HOLD UP TIME (Typ.) 18ms / 400VAC 16ms / 230VAC at full load
Input VOLTAGE RANGE 180 ~ 550VAC 254 ~ 780VDC
FREQUENCY RANGE 47 - 63Hz
POWER FACTOR (Typ.) PF>=0.84/400VAC PF>=0.84/230VAC
EFFICIENCY (Typ.)  92%
AC CURRENT (Typ.) 1.6A/400VAC 4A/230VAC
INRUSH CURRENT (Typ. ) COLD START 50A
LEAKAGE CURRENT <3.5mA / 530VAC
PROTECTION OVERLOAD 105 ~ 130% rated output power
Protection type : Constant current limiting, unit will shut down after 3 sec. ,auto-recovery after 1 minute if the fault condition is removed
OVER VOLTAGE 56 ~ 65V
Protection type : Shut down o/p voltage, auto-recovery after 1 minute if the fault condition is removed
OVER TEMPERATURE 95±5 (TSW) detect on heatsink of power switch
Protection type : Shut down o/p voltage, recovers automatically after temperature goes down
FUNCTION DC OK REALY CONTACT RATINGS max 60Vdc/0.3A, 30Vdc/1A, 30Vac/0.5A resistive load
ENVIRONMENT WORKING TEMP -30 ~ +70 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)
VIBRATION Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6
SAFETY &EMC SAFETY STANDARDS UL508,EAC TP TC 004 approved,IEC62368-1 CB approved by SIQ,design refer to BS EN/EN62368-1, AS/NZS 62368.1,GL; (meet BS EN/EN60204-1)
WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC O/P-DC OK:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:>100M Ohms / 500VDC / 25/ 70% RH
EMC IMMUNITY Compliance to BS EN/EN55032 (CISPR32), BS EN/EN61204-3 Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, BS EN/EN61000-6-2 (BS EN/EN50082-2), BS EN/EN61204-3, heavy industry level, criteria A, EAC TP TC 020 approved
Others MTBF 112.8K hrs min. MIL-HDBK-217F (25)
DIMENSION 85.5*125.2*128.5mm (W*H*D)
PACKING 1.7Kg; 8pcs/14.6Kg/0.9CUFT

Meanwell WDR-480-48 Features

l  Built-in DC OK relay contact

l  100% full load burn-in test

l  3 years warranty

l  Cooling by free air convection

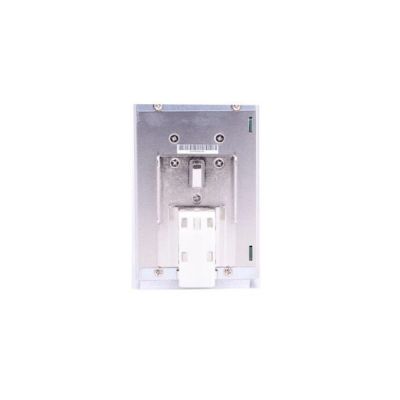

l  Can be installed on DIN rail TS-35/7.5 or15

l  UL 508 (industrial control equipment) approved

l  BS EN/EN6 1000-6-2 (BS EN/EN50082-2) industrial immunity level

l  Single and two phase wide input range 180~550VAC

l  Built-in active PFC circuit compliance to BS EN/EN61 000-3-2

l  High efficiency 93% and low power dissipation

l  Protections:Short circuit/Overload/Over voltage/Over temperature

Meanwell WDR-480-48 Features

Meanwell WDR-480-48 Mechanical Diagram
