UHP-750-48
157.16

UHP-750-48

$157.16

Meanwell 750W Slim Type with PFC Switching Supply with 48V15.7A753.6W250mVp-p48~57.6V±1.0%±0.5%±0.5%

- +
Availability:In stock
SKU Meanwell UHP-750-48
Brand Meanwell
Details

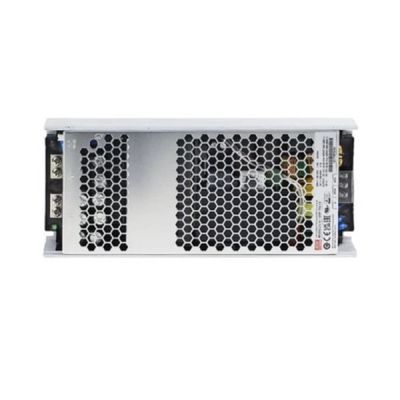

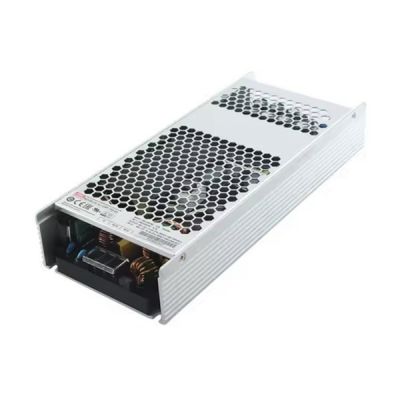

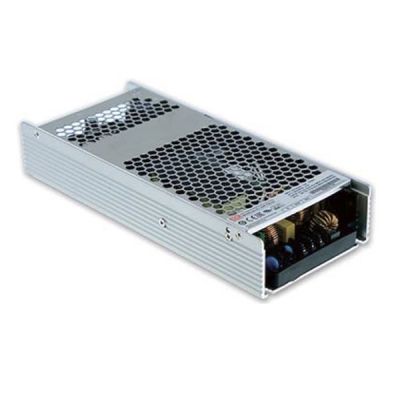

Meanwell UHP-750-48 is a 750W single-output slim type power supply with 41mm low -profile design, and adopts the full range 90~264 VAC input. This unit offers an output 48 V voltage. Apart from its high efficiency reaching up to 95.5%, it also works from -30℃~70℃ under air convection without fan. In addition, UHP-750-48 provides the complete protection functions and 5G anti-vibration capability, and at the same time, It is complied with the international safety regulations such as TUV EN62368-1 and UL62368-1.and design refers to EN6 1558-1 and EN60335-1. In view of these functions, Meanwell UHP-750-48 is a high-performance power supply solution for various industrial applications.

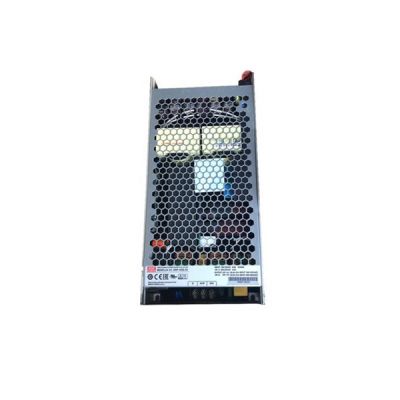

UHP-750-48 Meanwell UHP-750-48 Price and datasheet YCICT

Meanwell UHP-750-48 Specifications

Model UHP-750-48
Output DC VOLTAGE 48V
RATED CURRENT 15.7A
RATED POWER  753.6W
RIPPLE & NOISE (max.)  250mVp-p
VOLTAGE ADJ. RANGE 48~57.6V
VOLTAGE TOLERANCE ±1.0%
LINE REGUL ATION ±0.5%
LOAD REGULATION ±0.5%
SETUP, RISE TIME 1000ms, 50ms/230VAC 1000ms,50ms/115VAC at full load
HOLD UP TIME  12ms/230VAC 12ms/115VAC
Input VOLTAGE RANGE 90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE 47 - 63Hz
POWER FACTOR PF>0.95/230VAC PF>0.98/115VAC at full load
EFFICIENCY (Typ.)  95.00%
AC CURRENT (Typ.) 7.5A/115VAC 3.8A/230VAC
INRUSH CURRENT (Typ. ) Cold start 20A/115VAC 40A/230VAC
LEAKAGE CURR ENT <0.75mA / 240VAC
PROTECTION OVERLOAD 105~125% rated output power
Protection type: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 59 ~ 66V
Protection type: Shut down O/P voltage, re-power on to recover
OVER TEMPERATURE Protection type: Shut down O/P voltage, recovers automatically after temperature goes down
FUNCTION DC OK SIGNAL Contact rating(max.): 30Vdc/1A resistive load
ENVIRONMENT WORKING TEMP -30 ~ +70(Refer to “Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY &EMC SAFETY STANDARDS UL62368-1,TUV BS EN/EN62368-1, EAC TP TC 004 approved; design refer to BS EN/EN61558-1, BS EN/EN60335-1
WITHSTAND VOLTAGE I/P-O/P: 3.75KVAC I/P-FG: 2KVAC O/P-FG: 1.25KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC/25/ 70%RH
EMC IMMUNITY BS EN/EN55024, BS EN/EN61000-6-2
Others MTBF 279.97K hrs min. Telcordia SR-332 (Bellcore); 104.86K hrs min. MIL-HDBK-217F (25)
DIMENSION 237*100*41mm (L*W*H)
PACKING 1.4kg; 10pcs/15kg/0.8CUFT

Meanwell UHP-750-48 Features

l  3 years warranty

l  DC OK relay contact

l  LED indicator for power on

l  Slim and Low profile (41mm)

l  Built-in active PFC function

l  -30℃~+70℃ working temperature

l  Operating altitude up to 5000 meter

l  Fanless and conduction-cooled design

l  Withstand 300 VAC surge input for 5 seconds

l  Protections: Short circuit/Overload/Over voltage/Over temperature

Meanwell UHP-750-48 Features

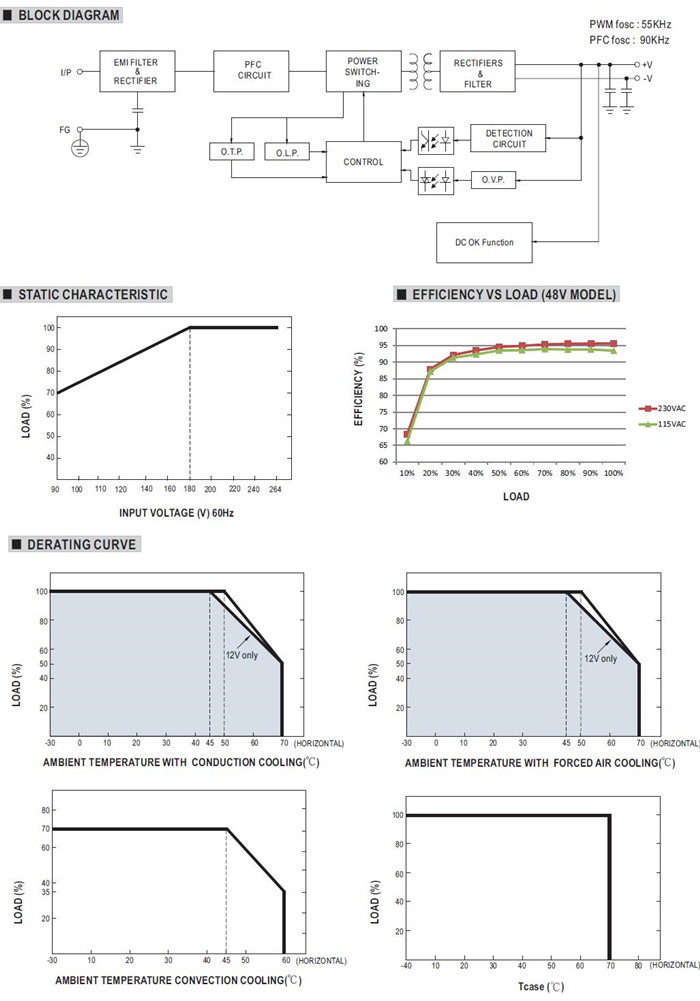

Meanwell UHP-750-48 Applications

l  Household appliances

l  Industrial control system

l  Industrial automation machinery

l  Mechanical and electrical equipment

l  Electronic instruments, equipment or apparatus

l  Power Sourcing Equipment of PoE(48V model: DC O/P range 48~57.6V)

Meanwell UHP-750-48 Applications

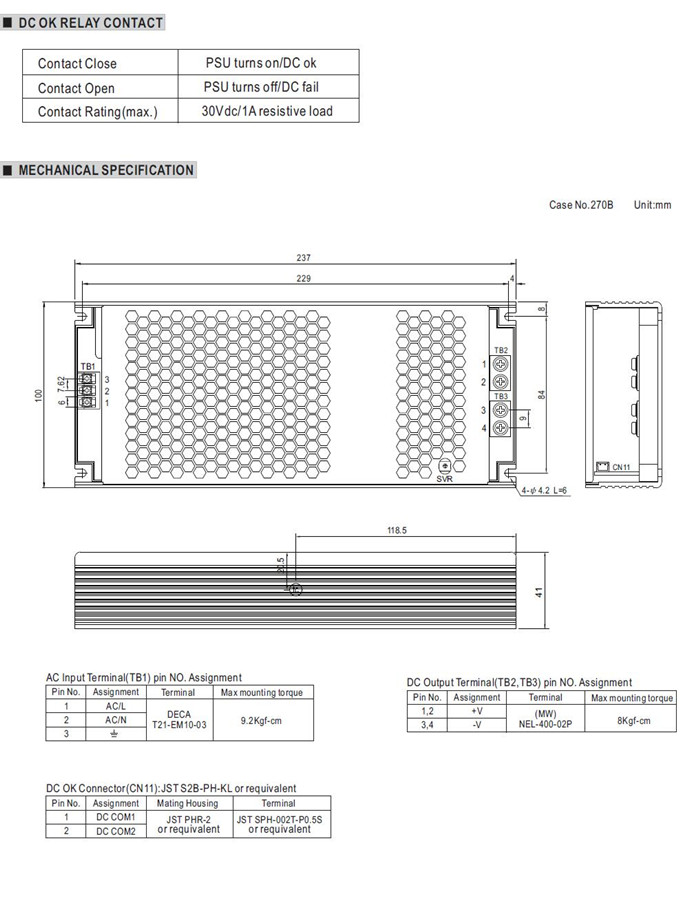

Meanwell UHP-750-48 Mechanical Diagram

Meanwell UHP-750-48 Mechanical DiagramMeanwell UHP-750-48 Mechanical Diagram
