Meanwell UHP-1500-24 is a 1500W single-output slim type power supply with 41mm of low-profile design, and adopts the full range 90~264VAC input. This model offers an output 24v voltage. In addition to the high efficiency up to 96%, it also runs from -30'C ~ 70C under air convection without fan. At the same time, Meanwell UHP- 1500-24 has the complete protection functions and 5G anti-vibration capability. It is complied with the international safety regulations such as TUV EN62368-1, UL62368-1, and the design refers to EN61558-1 and EN60335-1. thanks to these functions, UHP-1500-24 acts as a high-performance power supply solution for various industrial applications.

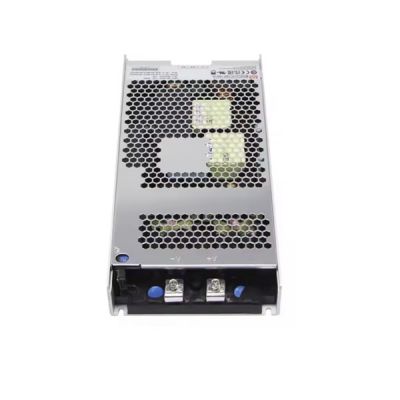

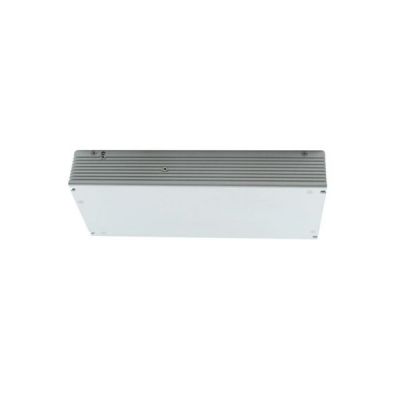

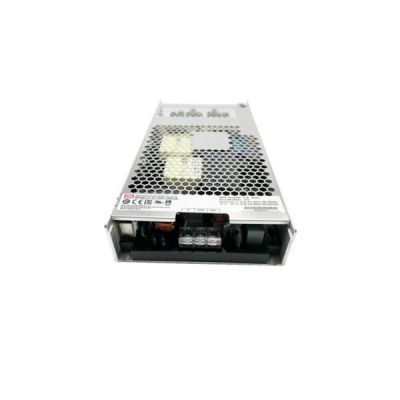

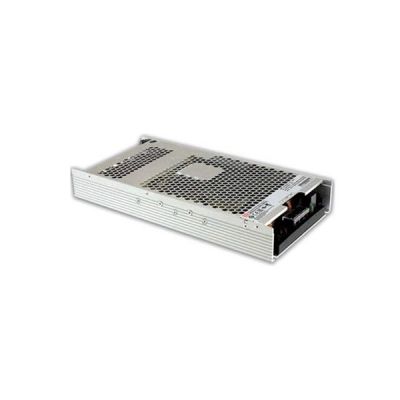

Meanwell UHP-1500-24

Meanwell UHP-1500-24 Specifications

Model UHP-1500-24
Output DC VOLTAGE 24V
RATED CURRENT 62.5A
RATED POWER  1500W
RIPPLE & NOISE (max.)  240mVp-p
VOLTAGE ADJ. RANGE 11-14V
VOLTAGE TOLERANCE By built-in potentiometer, SVR
24~28.8V
VOLTAGE TOLERANCE ±1.0%
LINE REGUL ATION ±0.5%
LOAD REGULATION ±0.5%
SETUP, RISE TIME 1800ms, 60ms/230VAC 1800ms, 60ms/115VAC at full load
HOLD UP TIME  16ms/230VAC at 75% load 10ms/230VAC at full load ; 16ms/115VAC at 75% load 10ms/115VAC at full load
Input VOLTAGE RANGE 90 ~ 264VAC 250 ~ 370VDC
FREQUENCY RANGE 47 - 63Hz
POWER FACTOR PF>0.95/230VAC PF>0.99/115VAC at full load
EFFICIENCY (Typ.)  96.00%
AC CURRENT (Typ.) 11A/115VAC 8A/230VAC
INRUSH CURRENT (Typ. ) Cold start 30A/115VAC 60A/230VAC
LEAKAGE CURR ENT <0.75mA / 240VAC
PROTECTION OVERLOAD 105 ~ 115% rated output power
Protection type : Constant current limiting, unit will shutdown after 5 sec, re-power on to recover
OVER VOLTAGE 60 ~ 67V
Protection type :Shut down O/P voltage,re-power on to recover
OVER TEMPERATURE Protection type :Shut down O/P voltage, recovers automatically after temperature goes down
FUNCTION DC OK SIGNAL The TTL signal out, PSU turn on = 4.4 ~ 5.5V ; PSU turn off = -0.5 ~ 0.5V. Please refer to the Function Manual.
AUXILIARY POWER 12V @ 0.4A tolerance ±10%, ripple=150mVp-p
REMOTE ON/OFF CONTROL Power ON : Short circuit Power OFF : Open circuit
OUTPUT VOLTAGE
PROGRAMMABLE(PV)
Adjustment of output voltage is allowable to 50 ~ 120% of nominal output voltage
Please refer to the Function Manual
OUTPUT CURRENT
PROGRAMMABLE(PC)
Adjustment of constant current level is allowable to 20 ~ 100% of rated current.
Please refer to the Function Manual
ENVIRONMENT WORKING TEMP -30 ~ +70(Refer to “Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY &EMC SAFETY STANDARDS UL62368-1, Dekra seal BS EN/EN62368-1, EAC TP TC 004 approved; Design refers to BS EN/EN61558-1, BS EN/EN60335-1(by request
WITHSTAND VOLTAGE I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.25KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG,O/P-FG:100M Ohms/500VDC/25/ 70%RH
EMC IMMUNITY BS EN/EN55024, BS EN/EN61000-6-2
Others MTBF 181.47K hrs min. Telcordia SR-332 (Bellcore) ; 56.72K hrs min. MIL-HDBK-217F (25)
DIMENSION 290*140*41mm (L*W*H)
PACKING 2.51kg ; 6pcs/16.06kg/0.86CUFT

Meanwell UHP-1500-24 Features

l  DC OK active signal

l  Operating altitude up to 5000 meters

l  LED indicator for power on

l  Optional PMBus or CANBus protocol

l  5 years warranty

l  Slim and Low profile (41mm)

l  Fanless and conduction-cooled design

l  Built-in active PFC function

l  -30℃~+ 70℃ working temperature

l  Output voltage and constant current level programmable

l  Protections: Short circuit/Overload/Over voltage/Over temperature

l  Built-in remote ON-OFF control

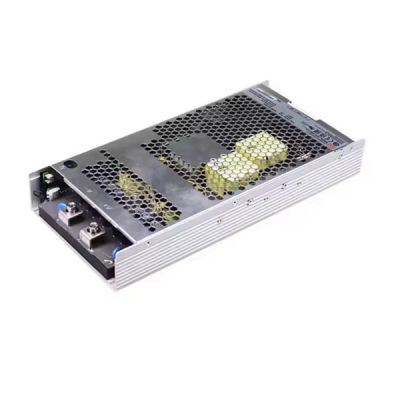

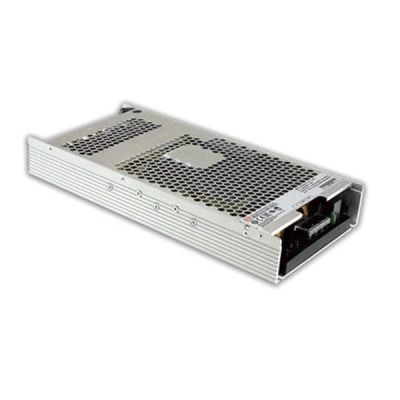

Meanwell UHP-1500-24

Meanwell UHP-1500-24 Applications

l  Laser related machine

l  Charging related equipment

l  Household appliances

l  Industrial automation machinery

l  Industrial control system

l  Mechanical and electrical equipment

l  Electronic instruments, equipment or apparatus

l  Test and measurement instrument

l  Power Sourcing Equipment of PoE(48V model: DC O/P range 48~57.6V)

Meanwell UHP-1500-24 Applications

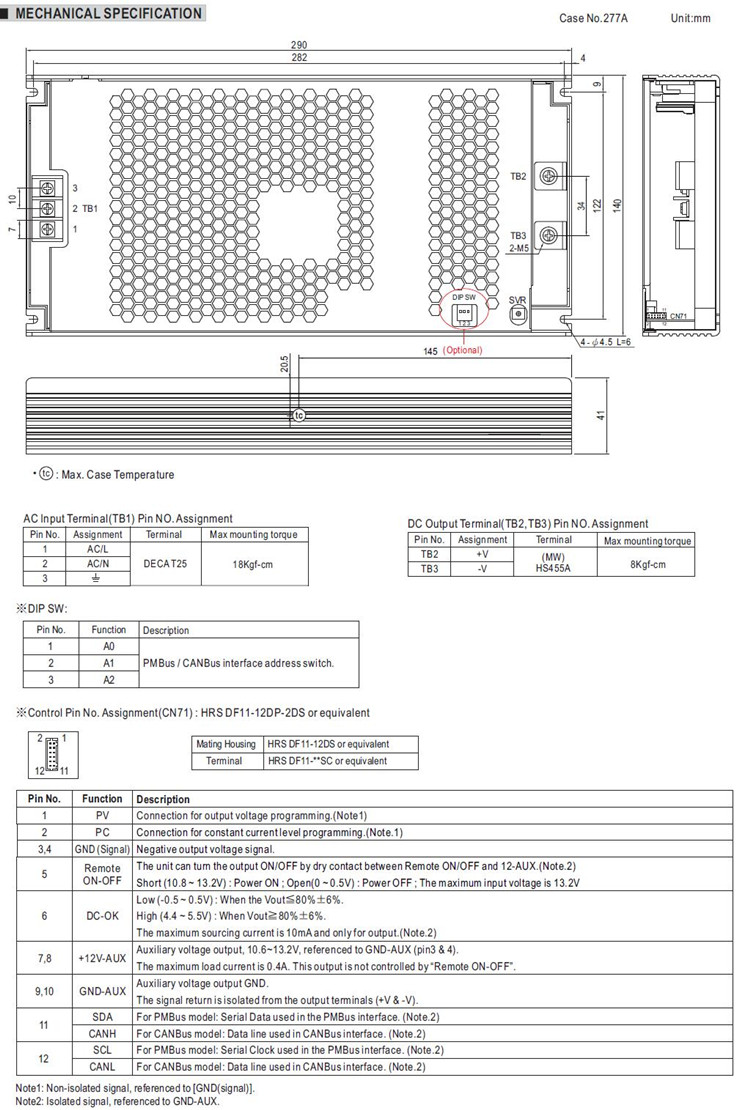

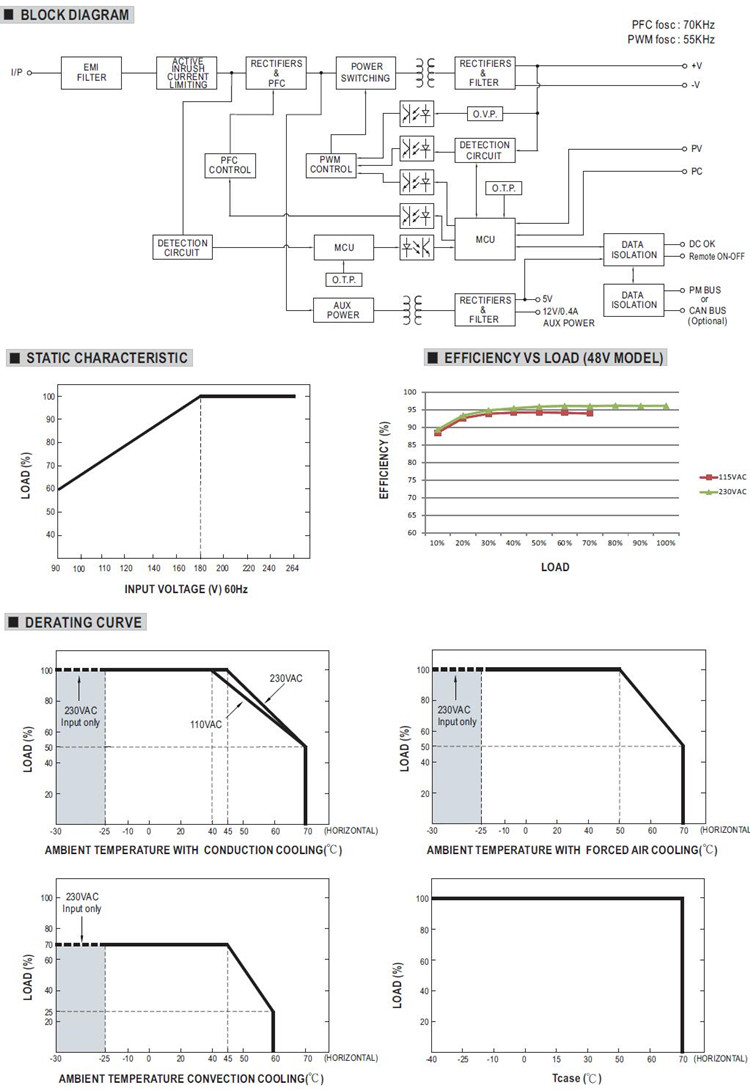

Meanwell UHP-1500-24 Mechanical Diagram

Meanwell UHP-1500-24Meanwell UHP-1500-24 mechanical diagram ycict
