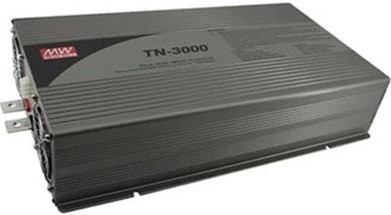

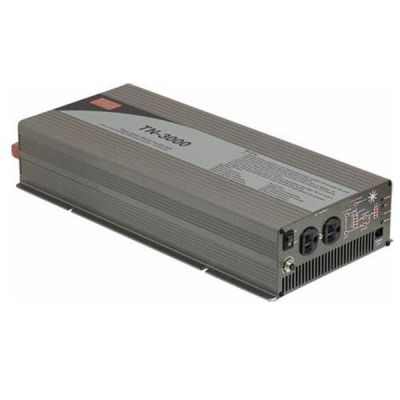

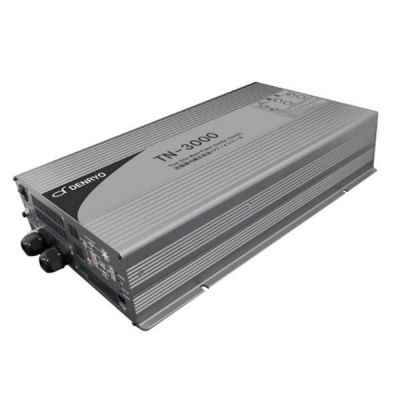

TN-3000-224
958.89
Details
Meanwell TN-3000 Series Model Specifications
| MODEL NO | TN-3000-112□ | TN-3000-124□ | TN-3000-148□ | TN-3000-212□ | TN-3000-224□ | TN-3000-248□ | |
| □=A, F, G | □=B, C, D, G | ||||||
| OUTPUT | RATED POWER (Continuous) | 3000W | |||||
| MAXIMUM OUTPUT POWER (Typ.) | 3450W for 180 sec./4500W for 10 sec./surge power 6000W for 30 cycles | ||||||
| AC VOLTAGE | Factory setting set at 110VAC | Factory setting set at 230VAC | |||||
| 100/110/115/120VAC selectable by setting button S.W | 200/220/230/240VAC selectable by setting button S.W | ||||||
| FREQUENCY | 60±0.1Hz 50/60Hz selectable by setting button S.W | 50±0.1Hz 50/60Hz selectable by setting button S.W | |||||
| WAVEFORM | True sine wave (THD<3%) | ||||||
| AC REGULATION (Typ.) | ±3% | ||||||
| TRANSFER TIME (Typ.) | 10ms inverter ←→ by pass | ||||||
| SAVING MODE (Typ.) | Default disabled. Load<=5W will be changed to standby mode | ||||||

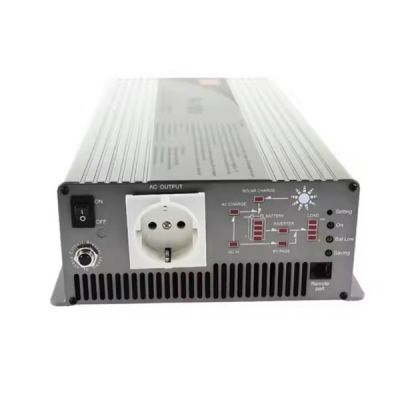

| FRONT PANEL INDICATOR | Battery voltage level, output load level, saving mode, fault and operation status | ||||||
| INPUT | BAT. VOLTAGE | 12Vdc | 24Vdc | 48Vdc | 12Vdc | 24Vdc | 48Vdc |
| VOLTAGE RANGE (Typ.) | 10.5~15VDC | 21~30VDC | 42-60VDC | 10.5~15VDC | 21~30VDC | 42-60VDC | |
| DC CURRENT (Typ.) | 300A | 150A | 75A | 300A | 150A | 75A | |
| NO LOAD DISSIPATION (Typ.) | <=10W @ standby saving mode | ||||||
| OFF MODE CURRENT DRAW | <=1mA | ||||||
| EFFICIENCY (Typ.) | 88.00% | 90.00% | 91.00% | 89.00% | 91.00% | 92.00% | |
| BATTERY TYPES | Open&sealed lead acid battery | ||||||
| BATTERY INPUT PROTECTION | FUSE | 40A*12 | 40A*6 | 20A*6 | 40A*12 | 40A*6 | 20A*6 |
| BAT. LOW ALARM | 11.3V | 22.5V | 45V | 11.3V | 22.5V | 45V | |
| BAT. LOW SHUTDOWN | 10.5V | 21V | 42V | 10.5V | 21V | 42V | |
| REVERSE POLARITY | By internal fuse open | ||||||
| OUTPUT PROTECTION | OVER TEMPERATURE | 90℃±5℃ | 85℃±5℃ | 85℃±5℃ | 80℃±5℃ | 75℃±5℃ | 75℃±5℃ |
| Protection type: Shut down o/p voltage, re-power on to recover | |||||||
| OUTPUT SHORT | Protection type: Shut down o/p voltage, re-power on to recover | ||||||
| OVER LOAD (Typ.) | 105 ~ 115% load for 180 sec., 115% ~ 150% load for 10 sec. | ||||||
| Protection type : Shut down o/p voltage, re-power on to recover | |||||||
| CIRCUIT BREAKER | AC output: 40A, AC receptacle:15A | AC output: 20A, AC receptacle: 15A | |||||
| GFCI PROCTECTION | Optional (Only type F) | NONE | |||||
| ENVIRONMENT | WORKING TEMP. | 0 ~ +40℃@100% load ; 60℃@50% load | |||||
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | ||||||
| STORAGE TEMP., HUMIDITY | -30~+70℃/-22~+158 F, 10~95% RH non-condensing | ||||||
| VIBRATION | 10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axes | ||||||
| SAFETY&EMC | SAFETY STANDARDS | UL458 (only for Type G ), EAC TP TC 004 | EAC TP TC 004 | IEC62368-1 CB, EAC TP TC 004 approved; Design refer to BS EN/EN62368-1 | |||
| WITHSTAND VOLTAGE | Bat I/P - AC I/P:3.0KVAC Bat I/P - AC O/P:3.0KVAC AC O/P - FG:1.5KVAC | ||||||
| ISOLATION RESISTANCE | Bat I/P - AC O/P, Bat I/P - FG, AC O/P - FG: 100M ohms / 500VDC / 25℃/ 70% RH | ||||||
| EMC EMISSION | Compliance to FCC class A, EAC TP TC 020 | Compliance to BS EN/EN55032 class A, 72/ 245/ CEE, 95/ 54/ CE, E-Mark, EAC TP TC 020 | |||||
| EMC IMMUNITY | Compliance to EAC TP TC 020 | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, EAC TP TC 020 | |||||
| AC CHARGER | CHARGE CURRENT (Typ.) | 25A | 12A | 6A | 25A | 12A | 6A |
| CHARGE VOLTAGE | 14.3V | 28.5V | 57V | 14.3V | 28.5V | 57V | |
| SOLAR CHARGER | MAX OPEN CIRCUIT VOLTAGE | 25V | 45V | 75V | 25V | 45V | 75V |
| CHARGE CURRENT (max.) | 30A | ||||||
| OTHERS | CONTROL WIRING | RJ11 -RS232 | |||||
| MTBF | 186.9K hrs min. Telcordia SR-332 (Bellcore) ; 26.7K hrs min. MIL-HDBK-217F (25℃) | ||||||
| DIMENSION | 466.8*283.5*100mm (L*W*H) | ||||||
| PACKING | 12.9Kg; 1pcs/14Kg/1.49CUFT | ||||||
Meanwell TN-3000 Series Features
l True sine wave output (THD<3%)
l High surge power up to 6000W
l U.P.S. mode and energy saving mode (selectable )
l High efficiency up to 92%
l Power ON-OFF switch
l Standby saving mode can be selectable
l Front panel indicator for operation status
l Thermostatically controlled cooling fan
l Protections: Bat. low alarm/Bat. low shutdown/Over voltage/Over temp./Output short/Input polarity reverse/Overload/ AC circuit breaker
l Application: Home appliance, power tools, office and portable equipment, vehicle and yacht ...etc.
l Built-in solar/AC charger
l Support RS-232 communication (Communication cable RJ1 1-RS232 included)
l 3 years warranty
Meanwell TN-3000 Series Mechanical Diagram
