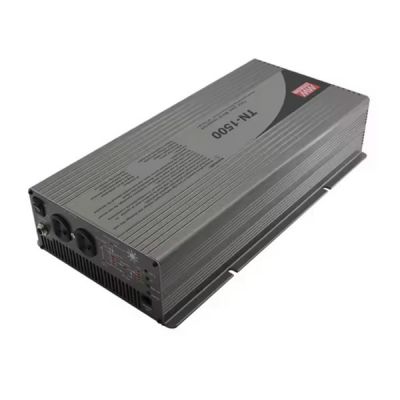

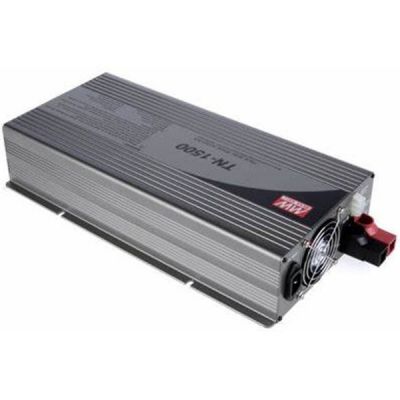

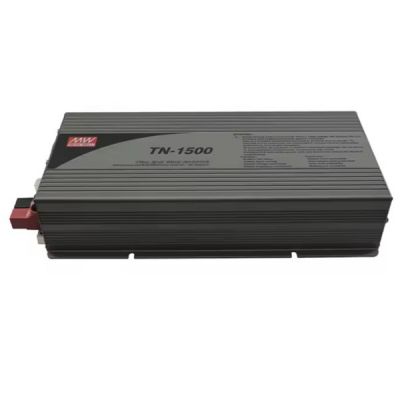

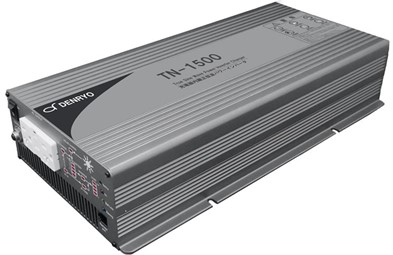

TN-1500-224
488.29
Details
Meanwell TN-1500 Series Model Specifications
| MODEL NO | TN-1500-112□ | TN-1500-124□ | TN-1500-148□ | TN-1500-212□ | TN-1500-224□ | TN-1500-248□ | |
| □=A, F | □=B, C, D | ||||||
| OUTPUT | RATED POWER (Continuous) | 1500W | |||||
| MAXIMUM OUTPUT POWER (Typ.) | 1725W for 180 sec./1875W for 10 sec./surge power 3000W for 30 cycles | ||||||
| AC VOLTAGE | Factory setting set at 110VAC | Factory setting set at 230VAC | |||||
| 100/110/115/120VAC selectable by setting button S.W | 200/220/230/240VAC selectable by setting button S.W | ||||||
| FREQUENCY | 60±0.1Hz 50/60Hz selectable by setting button S.W | 50±0.1Hz 50/60Hz selectable by setting button S.W | |||||
| WAVEFORM | True sine wave (THD<3%) | ||||||
| AC REGULATION (Typ.) | ±3.0% | ||||||
| TRANSFER TIME (Typ.) | 10ms inverter ←→ by pass | ||||||
| SAVING MODE (Typ.) | Default disabled. Load<=5W will be changed to standby mode | ||||||
| FRONT PANEL INDICATOR | Battery voltage level, output load level, saving mode, fault and operation status | ||||||
| INPUT | BAT. VOLTAGE | 12Vdc | 24Vdc | 48Vdc | 12Vdc | 24Vdc | 48Vdc |
| VOLTAGE RANGE (Typ.) | 10.5~15VDC | 21~30VDC | 42-60VDC | 10.5~15VDC | 21~30VDC | 42-60VDC | |
| DC CURRENT (Typ.) | 150A | 75A | 37.5A | 150A | 75A | 37.5A | |
| NO LOAD DISSIPATION (Typ.) | <=18W @ standby saving mode | ||||||
| OFF MODE CURRENT DRAW | <=1mA | ||||||
| EFFICIENCY (Typ.) | 87.00% | 89.00% | 89.00% | 88.00% | 90.00% | 91.00% | |
| BATTERY TYPES | Open & sealed Lead Acid | ||||||
| BATTERY INPUT PROTECTION | FUSE | 40A*5 | 30A*3 | 30A*2 | 40A*5 | 30A*3 | 30A*2 |
| BAT. LOW ALARM | 11.3±4% | 22.5±4% | 45±4% | 11.3±4% | 22.5±4% | 45±4% | |
| BAT. LOW SHUTDOWN | 10.5±4% | 21±4% | 42±4% | 10.5±4% | 21±4% | 42±4% | |
| REVERSE POLARITY | By internal fuse open | ||||||
| OUTPUT PROTECTION | OVER TEMPERATURE | 82℃±5℃ | 82℃±5℃ | 96℃±5℃ | 68℃±5℃ | 68℃±5℃ | 68℃±5℃ |
| Protection type : Shut down o/p voltage, re-power on to recover ; by internal RTH3 detect on heatsink of power transistor | |||||||
| OUTPUT SHORT | Protection type: Shut down o/p voltage, re-power on to recover | ||||||
| OVER LOAD (Typ.) | 105~115% load for 180 sec., 115%~125% load for 10 sec. | ||||||
| Protection type: Shut down o/p voltage, re-power on to recover | |||||||
| CIRCUIT BREAKER | 15A | 10A | |||||
| GFCI PROCTECTION | Optional (Only type F) | NONE | |||||
| ENVIRONMENT | WORKING TEMP. | 0~+40℃@ 100% load ; 60℃@ 50% load | |||||
| WORKING HUMIDITY | 20%~90% RH non-condensing | ||||||
| STORAGE TEMP., HUMIDITY | -30~+70℃/ -22~+158oF, 10~95% RH non-condensing | ||||||
| VIBRATION | 10~500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axes | ||||||
| SAFETY&EMC | SAFETY STANDARDS | UL458 (only for "GFCI" receptacle-Type F ), EAC TP TC 004 | EAC TP TC 004 | IEC62368-1 CB, EAC TP TC 004 approved; Design refer to BS EN/EN62368-1 | |||
| WITHSTAND VOLTAGE | Bat I/P - AC I/P:3.0KVAC Bat I/P - AC O/P:3.0KVAC AC O/P - FG:1.5KVAC | ||||||
| ISOLATION RESISTANCE | Bat I/P - AC O/P, Bat I/P - FG, AC O/P - FG: 100M ohms / 500VDC / 25℃/ 70% RH | ||||||
| EMC EMISSION | Compliance to FCC class A, EAC TP TC 020 | Compliance to BS EN/EN55032 class B, 72/ 245/ CEE, 95/ 54/ CE, E-Mark, EAC TP TC 020 | |||||
| EMC IMMUNITY | Compliance to EAC TP TC 020 | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, EAC TP TC 020 | |||||
| AC CHARGER | CHARGE CURRENT (Typ.) | 5.5A | 2.7A | 1.35A | 5.5A | 2.7A | 1.35A |
| CHARGE VOLTAGE | 14.3V±4% | 28.5V±4% | 57V±4% | 14.3V±4% | 28.5V±4% | 57V±4% | |
| SOLAR CHARGER | MAX OPEN CIRCUIT VOLTAGE | 25V | 45V | 75V | 25V | 45V | 75V |
| CHARGE CURRENT (max.) | 30A | ||||||
| CHARGE VOLTAGE | 14.3V±4% | 28.5V±4% | 57V±4% | 14.3V±4% | 28.5V±4% | 57V±4% | |
| OTHERS | CONTROL WIRING | RJ11 -RS232 | |||||
| MTBF | 229.1K hrs min. Telcordia SR-332 (Bellcore) ; 38.1K hrs min. MIL-HDBK-217F (25℃) | ||||||
| DIMENSION | 420*220*88mm (L*W*H) | ||||||
| PACKING | 6.85Kg; 2pcs/15.7Kg/1.61CUFT | ||||||
Meanwell TN-1500 Series Features
l True sine wave output (THD<3%)
l High surge power up to 3000W
l U.P.S. mode and energy saving mode (selectable)
l High efficiency upto 91%
l Power ON-OFF switch
l Standby saving mode can be selectable
l Front panel indicator for operation status
l Thermostatically controlled cooling fan
l Protections: Bat. low alarm/Bat. low shutdown/Over voltage/Over temp./Output short/ Input polarity reverse/Overload/AC circuit breaker
l Application : Home appliance, power tools, office and portable equipment, vehicle and yacht ...etc.
l Built-in solar/AC charger
l Support RS-232 communication (communication cable RJ11-RS232 included)
l 3 years warranty
Meanwell TN-1500 Series Mechanical Diagram
