SGAS15U24-P1J
11.05
Details

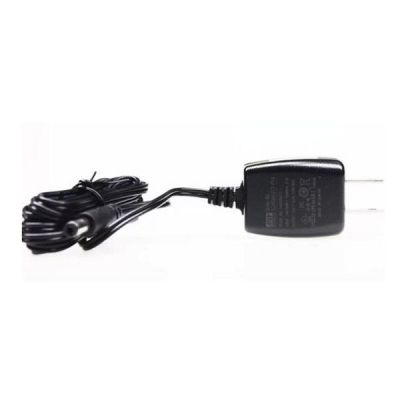

Meanwell SGAS15U24 is a 15W highly reliable wall-mounted style green adaptor with 24V0.625A0-0.625A15W100mVp-p. The product highlights compact size and single-output, which is convenient for carry. It is a classⅡpower unit (no FG) with standard 2-Pin U.S. plug, and accepts input range from 90VAC to 264VAC. Meanwhile, SGAS15U24 provides the model with output voltages 24VDC, so that it can meet the demands for various types of consumer electronic devices. Since the efficiency reaches high up to 86% and extremely low no-load power consumption below 0.075W, Meanwell SGAS15U24 complies with the latest U. S. energy regulation EISA 2007/DoE (LeveI VI). The supreme feature allows the adaptor to save energy when it is under either operating mode or standby mode. Furthermore, it is approved for international safety regulations, and adopts the 94V-0 flame retardant plastic case, which can effectively prevent users from electric hazards. As a result of its high safety, high reliability and high quality, Meanwell SGAS15U24 serves as a high performance power supply solution for various types of consumer electronic devices.
Meanwell SGAS15U24-P1J Encoding
| SGAS | Series Name |
| 15 | Rated Wattage |
| U | US 2pin AC Plug |
| 24 | Output Voltage |
| P1J DC plug type | Р1J: Рlug fоr ѕtаndаrd mоdеl, 2.1 ѱ Х5. 5ѱ Х 11 mm,C+ tuning fork type |
| Other Options available by customer requested |
Meanwell SGAS15U24-P1J Specifications
| ORDER NO. | SGAS15U24-P1J | |
| OUTPUT | SAFETY MODEL NO. | SGAS15U24 |
| DC VOLTAGE | 24V | |
| RATED CURRENT | 0.625A | |
| CURRENT RANGE | 0-0.625A | |
| RATED POWER | 15W | |
| RIPPLE & NOISE (max.) | 100mVp-p | |
| VOLTAGE TOLERANCE | ±2.0% | |
| LINE REGULATION | ±0.5% | |
| LOAD REGULATION | ±2.0% | |
| SETUP, RISE, HOLD UP TIME | 3000ms, 50ms, 10ms at full load | |
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 86.00% | |
| AC CURRENT | 0.4A / 100VAC | |
| INRUSH CURRENT (max.) | Cold start 30A / 115VAC 50A / 230VAC | |
| LEAKAGE CURRENT(max.) | 0.25mA / 240VAC | |
| PROTECTION | OVERLOAD | 105 ~ 250% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | >120% rated output voltage | |
| Protection type : Clamp by zener diode | ||
| ENVIRONMENT | WORKING TEMP. | -20 ~ +70℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -20 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03% / ℃ (0 ~ 40℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| SAFETY & EMC | SAFETY STANDARDS | UL62368-1, CSA C22.2 NO. 62368-1 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| Others | Life | 3 years : 100% load 40℃, 12hours / day |
| MTBF | 507Khrs min. MIL-HDBK-217F(25℃) | |
| DIMENSION | 57.6*42.1*24.7mm (L*W*H) | |
| PACKING | 120g ; 72pcs / 10Kg / CARTON | |
Meanwell SGAS15U24-P1J Features
l Pass LPS
l 3 years warranty
l Energy efficiency Level VI
l Comply with EISA 2007/DoE
l Fully enclosed plastic case
l Universal AC input/Full range
l 2 pole USA plug, ClassⅡpower unit
l No load power consumption<0.075W
l Protections: Short circuit/Overload/Over voltage
l 7.5V/18V/48V models available (by request)
l Various DC plug quick adapter accessory available
l Extreme small and space-saving, takes up one spot on power strip
Meanwell SGAS15U24-P1J Applications
l Office facilities
l Industrial equipment
l Telecommunication devices
l Consumer electronic devices
Meanwell SGAS15U24-P1J Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
