SGAS15B15-P1J
13.07

SGAS15B15-P1J

$13.07

Meanwell 15W AC-DC High Reliable Extreme Small Desktop Industrial Adaptor with 15V1.00A0-1.00A15W80mVp-p±3.0%±0.5%±3.0%

- +
Availability:In stock
SKU Meanwell SGAS15B15-P1J
Brand Meanwell
Details

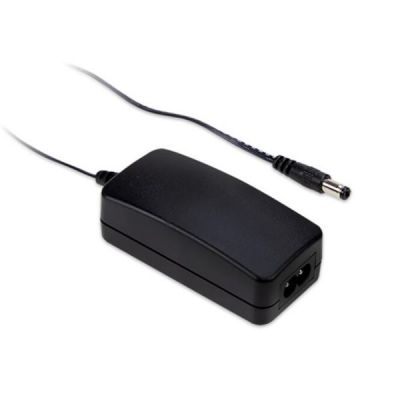

Meanwell SGAS15B15-P1J is a 15W desktop style single-output green adaptor with 15V1.00A0-1.00A15W80mVp-p. The model features compact, highly reliable, and convenient for carry. It is a class I power unit (no FG) with standard IEC320-C8 AC inlet, and accepts the input ranging from 90VAC to 264VAC. The unit offers output voltages 15VDC, which can satisfy the demands for various types of consumer electronic devices. Additionally, the efficiency reaches high up to 86% and the extremely low no-load power consumption below 0.075W. SGAS15B15 also complies with USA EISA 2007DoE, EU ErP, and fit Code of Conduct (CoC) Version 5. Apart from them, the supreme feature allows the adaptor to save the energy when it is under either operating mode or standby mode. It is approved for international safety regulations as well. Meanwell SGAS15B15-P1J adopts the 94V-0 flame retardant plastic case that it can effectively prevent users from electric hazards.

Meanwell SGAS15B15 Price and Specs High Reliable Extreme Small Desktop Industrial Adaptor 15W 15V 1A AC-DC YCICT

Meanwell SGAS15B15-P1J Encoding

SGAS Series Name
15 Rated Wattage
B IEC320-C8 AC Inlet
12 Output Voltage
P1J DC Plug Type Р1J: Рlug fоr ѕtаndаrd mоdеl, 2.1 ѱ Х5. 5ѱ Х1 1mm, C+ tuning fork type
DC Plug Type Other options available by customer requested

Meanwell SGAS15B15-P1J Specifications

ORDER NO. SGAS15B15-P1J
OUTPUT SAFETY MODEL NO. SGAS15B15
DC VOLTAGE 15V
RATED CURRENT 1.00A
CURRENT RANGE 0-1.00A
RATED POWER 15W
RIPPLE & NOISE (max.) 80mVp-p
VOLTAGE TOLERANCE ±3.0%
LINE REGULATION ±0.5%
LOAD REGULATION ±3.0%
SETUP, RISE, HOLD UP TIME 3000ms, 50ms, 10ms at full load
INPUT VOLTAGE RANGE 90 ~ 264VAC 135 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 85.00%
AC CURRENT 0.4A / 100VAC
INRUSH CURRENT (max.) Cold start 30A/ 115VAC 50A / 230VAC
LEAKAGE CURRENT(max.) 0.25mA / 240VAC
PROTECTION OVERLOAD 105 ~ 250% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE >120% rated output voltage
Protection type : Clamp by zener diode
ENVIRONMENT WORKING TEMP. -20 ~ +70 (Refer to "Derating Curve")
WORKING HUMIDITY 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -20 ~ +85, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03% / (0 ~ 40)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS UL62368-1, CSA C22.2 , TUV B NO. 62368-1 S EN/EN62368-1 approved
WITHSTAND VOLTAGE I/P-O/P:3KVAC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
Others LIFE 3 years : 100% load 40, 12hours / day
MTBF 507Khrs min. MIL-HDBK-217F(25)
DIMENSION 80*39*27.7mm (L*W*H)
PACKING 130g ; 72pcs / 11Kg / CARTON

Meanwell SGAS15B15-P1J Features

l  Pass LPS

l  Extreme small

l  3 years warranty

l  Universal AC input/Full range

l  Energy efficiency Level VI

l  Fully enclosed plastic case

l  No load power consumption<0.075W

l  2 pole AC inlet lEC320-C8, Class I power unit

l  Protections: Short circuit/Overload/Over voltage

l  7.5V 1 18V 148V models available (by request)

l  Various DC plug quick adapter accessory available

l  Comply with EISA 2007/DoE, EU ErP and meet CoC Version 5

Meanwell SGAS15B15 Price and Specs High Reliable Extreme Small Desktop Industrial Adaptor 15W AC-DC LPS Pass YCICT

Meanwell SGAS15B15-P1J Applications

l  Consumer electronic devices

l  Telecommunication devices

l  Office facilities

l  Industrial equipment

Meanwell SGAS15B15 Price and Specs High Reliable Extreme Small Desktop Industrial Adaptor 15W 15V AC-DC LPS YCICT

Meanwell SGAS15B15-P1J Mechanical Diagram

Meanwell SGAS15B15 Price and Datasheet High Reliable Extreme Small Desktop Industrial Adaptor 15W 15V AC-DC LPS YCICT
