SGAS15A09-P1J
13.04

SGAS15A09-P1J

$13.04

Meanwell 15W AC-DC High Reliable Extreme Small Desktop Industrial Adaptor with 9V1.66A0-1.66A15W80mVp-p±5.0%±0.5%±5.0%

- +
Availability:In stock
SKU Meanwell SGAS15A09-P1J
Brand Meanwell
Details

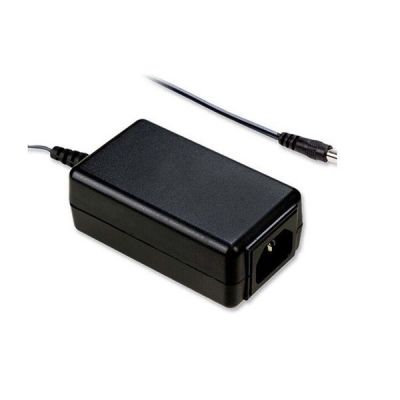

Meanwell SGAS15A09-P1J is a 15W desktop style single-output green adaptor with 9V1.66A0-1.66A15W80mVp-p. The unit outstands compact, highly reliable and convenient for carry. It is a classⅠpower unit (with FG) with the standard IEC320-C14 AC inlet and accepts the input range from 90VAC to 264VAC. SGAS15A09 offers with output voltages 9VDC, which can satisfy the demands for various types of consumer electronic devices. The efficiency reaches high up to 86%, and extremely low no-load power consumption below 0.075W. Additionally, SGAS15A09 complies with USA EISA 2007/DoE, EU ErP, and meets Code of Conduct (CoC) Version 5. The supreme feature allows the adaptor to save the energy when it is under either operating mode or standby mode. Meanwell SGAS15A09- P1J is approved for international safety regulations, and adopts 94V-0 flame retardant plastic case that it can effectively prevent users from electric hazards.

Meanwell SGAS15A09-P1J Price and Specs 15W High Reliable Extreme Small Desktop Industrial Adaptor AC-DC LPS Pass YCICT

Meanwell SGAS15A09-P1J Specifications

ORDER NO. SGAS15A09-P1J
OUTPUT SAFETY MODEL NO. SGAS15A09
DC VOLTAGE 9V
RATED CURRENT 1.66A
CURRENT RANGE 0-1.66A
RATED POWER 15W
RIPPLE & NOISE (max.) 80mVp-p
VOLTAGE TOLERANCE ±5.0%
LINE REGULATION ±0.5%
LOAD REGULATION ±5.0%
SETUP, RISE, HOLD UP TIME 3000ms, 50ms, 10ms at full load
INPUT VOLTAGE RANGE 90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 84.00%
AC CURRENT 0.4A / 100VAC
INRUSH CURRENT (max.) Cold start 30A/ 115VAC 50A / 230VAC
LEAKAGE CURRENT(max.) 0.25mA / 240VAC
PROTECTION OVERLOAD 105 ~ 250% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE >120% rated output voltage
Protection type : Clamp by zener diode
ENVIRONMENT WORKING TEMP. -20 ~ +70 (Refer to "Derating Curve")
WORKING HUMIDITY 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -20 ~ +85, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03% / (0 ~ 40)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS UL62368-1, CSA C22.2 NO. 62368-1, TUV BS EN/EN62368-1 approved
WITHSTAND VOLTAGE I/P-O/P:3KVAC , I/P-FG:1.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG:100M Ohms / 500VDC / 25/ 70% RH
Others LIFE 3 years : 100% load 40, 12hours / day
MTBF 507Khrs min. MIL-HDBK-217F(25)
DIMENSION 85.7*50.9*33.8mm (L*W*H)
PACKING 150g ; 90pcs / 14Kg / CARTON

Meanwell SGAS15A09-P1J Features

l  Pass LPS

l  Extreme small

l  3 years warranty

l  Fully enclosed plastic case

l  Energy efficiency Level VI

l  Universal AC input/ Full range

l  3pole AC inlet IEC320-C14, ClassⅠpower unit

l  No load power consumption<0.075W

l  Comply with EISA 2007/DoE, EU ErP and meet CoC Version 5

l  Protections: Short circuit/Overload/Over voltage

l  7.5V1 18V 1 48V models available (by request)

l  Various DC plug quick adapter accessory available

Meanwell SGAS15A09-P1J Price and Specs 15W High Reliable Extreme Small Desktop Industrial Adaptor AC-DC LPS YCICT

Meanwell SGAS15A09-P1J Applications

l  Consumer electronic devices

l  Telecommunication devices

l  Office facilities

l  Industrial equipment

Meanwell SGAS15A09-P1J Price and Datasheet 15W High Reliable Extreme Small Desktop Industrial Adaptor AC-DC LPS YCICT
