SGA60E48-P1J
42.48

SGA60E48-P1J

$42.48

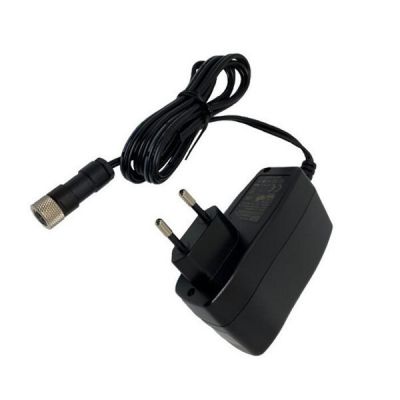

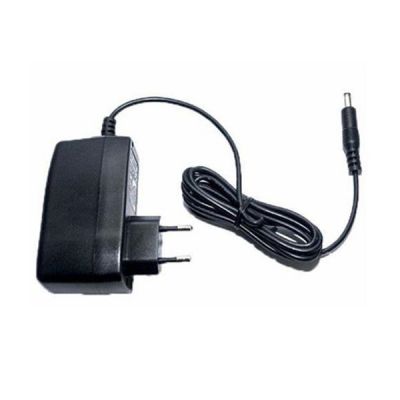

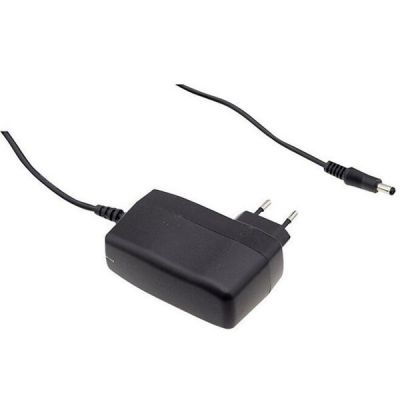

Meanwell 60W AC-DC High Reliability Slim Wall-mounted Adaptor with 48V1.25A0-1.25A60W120mVp-p±2.0%±1.0%±2.0%

- +
Availability:In stock
SKU Meanwell SGA60E48-P1J
Brand Meanwell
Details

Meanwell SGA60E48 is a 60W ultra slim single-output green adaptor with 48V1.25A0-1.25A60W120mVp-p. The product features compact, wall-mounted style and convenient for carry. It is a classⅡpower unit (no FG), equipped with standard 2-Pin European plug. SGA60E48 accepts input range from 90VAC to 264VAC with output voltage 48VDC. Therefore, it could meet the demands for various types of consumer electronic devices. As the efficiency reaches high up to 89.5% and extremely low no-load power consumption below 0.075W for 5~7.5V, below 0.15W for 9 ~48V, SGA60E48 is compliant with EU ErP and 9~48V meet CoC version 5. Furthermore, the supreme feature allows the adaptor to save energy when it is under either operating mode or standby mode. The item is also approved for international safety regulations, and adopts the 94V-0 flame retardant plastic case, which could effectively prevent users from electric hazards. Thanks to its high safety, high reliability and high quality, Meanwell SGA60E48 serves as a high performance power supply solution for various types of consumer electronic devices.

Meanwell SGA60E48 Price and Specs 60W AC-DC Slim Wall-mounted Adaptor SGA60E05 07 09 12 15 18 24 48 LPS 48V YCICT

Meanwell SGA60E48-P1J Encoding

SGA Series Name
60 Rated Wattage
E EURO 2 pin AC Plug
48 Output Voltage
P1J DC plug type Р1J: Рlug fоr ѕtаndаrd mоdеl, 2.1 ѱ Х5. 5ѱ Х 11 mm,C+ tuning fork type
Other Options available by customer requested

Meanwell SGA60E48-P1J Specifications

ORDER NO. SGA60E48-P1J
OUTPUT SAFETY MODEL NO. SGA60E48
DC VOLTAGE 48V
RATED CURRENT 1.25A
CURRENT RANGE 0-1.25A
RATED POWER 60W
RIPPLE & NOISE (max.) 120mVp-p
VOLTAGE TOLERANCE ±2.0%
LINE REGULATION ±1.0%
LOAD REGULATION ±2.0%
SETUP, RISE, HOLD UP TIME 2500ms, 50ms, 10ms/230VAC 2500ms, 50ms, 10ms/115VAC at full load
INPUT VOLTAGE RANGE 90 ~ 264VAC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 89.50%
AC CURRENT 1.5A / 115VAC 0.75A / 230VAC
INRUSH CURRENT (max.) Cold start 40A / 115VAC 80A / 230VAC
LEAKAGE CURRENT(max.) 0.25mA / 240VAC
PROTECTION OVERLOAD 110 ~ 200% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 110 ~ 140% rated output voltage
Protection type : Clamp by zener diode, output short
ENVIRONMENT WORKING TEMP. -20 ~ +50 (Refer to "Derating Curve")
WORKING HUMIDITY 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -20 ~ +85, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03% / (0 ~ 40)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE I/P-O/P:4242VDC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
Others Life 3 years : 100% load 40, 12hours / day
MTBF 400Khrs min. MIL-HDBK-217F(25)
DIMENSION 93.5*35*51.5mm (L*W*H)
PACKING 250g ; 60pcs / 17kg / CARTON

Meanwell SGA60E48-P1J Features

l  Pass LPS

l  Ultra slim

l  3 years warranty

l  Energy efficiency Level VI

l  Fully enclosed plastic case

l  LED indicator for power on

l  Universal AC input/Full range

l  2 pole EURO plug, ClassⅡpower unit

l  54V model available for PoE (optional)

l  Comply with EU ErP and meet CoC version 5

l  Protections: Short circuit/Overload/Over voltage

l  Various DC plug quick adapter accessory available

l  No load power consumption < 0.075W for 5~7.5V <0.15W for 9 ~48V

Meanwell SGA60E48 Price and Specs 60W AC-DC Slim Wall-mounted Adaptor SGA60E05 07 09 12 15 18 24 48 LPS 48V 1.25A YCICT

Meanwell SGA60E48-P1J Applications

l  Office facilities

l  Industrial equipment

l  Consumer electronic devices

l  Telecommunication devices

l  Power sourcing equipment of PoE

Meanwell SGA60E48 Price and Specs 60W AC-DC Slim Wall-mounted Adaptor SGA60E05 07 09 12 15 18 24 48 LPS Pass 1.25A YCICT

Meanwell SGA60E48-P1J Mechanical Diagram

Meanwell SGA60E48 Price and Datasheet 60W AC-DC Slim Wall-mounted Adaptor SGA60E05 07 09 12 15 18 24 48 LPS 1.25A YCICT
