SGA40U05-P1J
35.06

SGA40U05-P1J

$35.06

Meanwell 40W AC-DC High Reliability Slim Wall-mounted Adaptor with 5V5A0-5A25W120mVp-p±5.0%±1.0%±5.0%

- +
Availability:In stock
SKU Meanwell SGA40U05-P1J
Brand Meanwell
Details

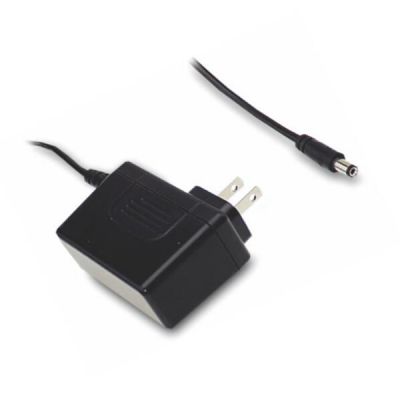

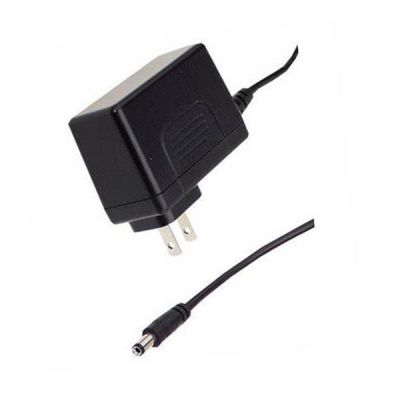

Meanwell SGA40U05 is a 40W ultra slim single-output green adaptor with 5V5A0-5A25W120mVp-p. The model is designed compact, wall-mounted style and convenient for carry. It is a classⅡ power unit (no FG), equipped with standard 2-Pin U.S. plug. At the same time, SGA40U05 accepts input range from 90VAC to 264VAC with output voltage 5VDC, so that it could satisfy the demands for various types of consumer electronic devices. As the efficiency reaches high up to 89% and extremely low no-load power consumption below 0.075W, Meanwell SGA40U05 is compliant with the latest U.S. energy regulation EISA 2007/DoE (Level VI). Additionally, the supreme feature allows the adaptor to save energy when it is under either operating mode or standby mode. The unit is also approved for international safety regulations. Moreover, it adopts the 94V-0 flame retardant plastic case, which can effectively prevent users from electric hazards. Due to its high safety, high reliability and high quality, Meanwell SGA40U05 serves as a high performance power supply solution for various types of consumer electronic devices.

Meanwell SGA40U05 Price and Specs 40W AC-DC Slim Wall-mounted Adaptor SGA40U05 09 12 15 18 24 48 LPS 5V 5A YCICT

Meanwell SGA40U05-P1J Encoding

SGA Series Name
40 Rated Wattage
U US 2 pin AC Plug
5 Output Voltage
P1J DC plug type Р1J: Рlug fоr ѕtаndаrd mоdеl, 2.1 ѱ Х5. 5ѱ Х 11 mm,C+ tuning fork type
Other Options available by customer requested

Meanwell SGA40U05-P1J Specifications

ORDER NO. SGA40U05-P1J
OUTPUT SAFETY MODEL NO. SGA40U05
DC VOLTAGE 5V
RATED CURRENT 5A
CURRENT RANGE 0-5A
RATED POWER 25W
RIPPLE & NOISE (max.) 120mVp-p
VOLTAGE TOLERANCE ±5.0%
LINE REGULATION ±1.0%
LOAD REGULATION ±5.0%
SETUP, RISE, HOLD UP TIME 1500ms, 100ms, 10ms/230VAC 1500ms, 100ms, 10ms/115VAC at full load
INPUT VOLTAGE RANGE 90 ~ 264VAC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 83.00%
AC CURRENT 1A / 115VAC 0.5A / 230VAC
INRUSH CURRENT (max.) Cold start 40A / 115VAC 70A / 230VAC
LEAKAGE CURRENT(max.) 0.25mA / 240VAC
PROTECTION OVERLOAD 110 ~ 250% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 110 ~ 140% rated output voltage
Protection type : Clamp by zener diode, output short
ENVIRONMENT WORKING TEMP. -20 ~ +50 (Refer to "Derating Curve")
WORKING HUMIDITY 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -20 ~ +85, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03% /  (0 ~ 40)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
Others Life 3 years : 100% load 40, 12hours / day
MTBF 400Khrs min. MIL-HDBK-217F(25)
DIMENSION 75.5*32*47.5mm (L*W*H)
PACKING 165g ; 60pcs / 13kg / CARTON

Meanwell SGA40U05-P1J Features

l  Ultra slim

l  Pass LPS

l  Universal AC input/ Full range

l  2 pole USA plug, ClassⅡpower unit

l  No load power consumption<0.075W

l  Energy efficiency Level VI

l  Comply with EISA 2007/DoE

l  Protections: Short circuit / Overload / Over voltage

l  Fully enclosed plastic case

l  54V model available for PoE (optional)

l  Various DC plug quick adapter accessory available

l  3 years warranty

Meanwell SGA40U05 Price and Specs 40W AC-DC Slim Wall-mounted Adaptor SGA40U05 09 12 15 18 24 48 LPS Pass ClassⅡ YCICT

Meanwell SGA40U05-P1J Applications

l  Office facilities

l  Industrial equipment

l  Telecommunication devices

l  Consumer electronic devices

l  Power sourcing equipment of PoE

Meanwell SGA40U05 Price and Specs 40W AC-DC Slim Wall-mounted Adaptor SGA40U05 09 12 15 18 24 48 LPS 5V 5A ClassⅡ YCICT

Meanwell SGA40U05-P1J Mechanical Diagram

Meanwell SGA40U05 Price and Datasheet 40W AC-DC Slim Wall-mounted Adaptor SGA40U05 09 12 15 18 24 48 LPS 5V 5A YCICT
