SGA25U07-P1J
14.93

SGA25U07-P1J

$14.93

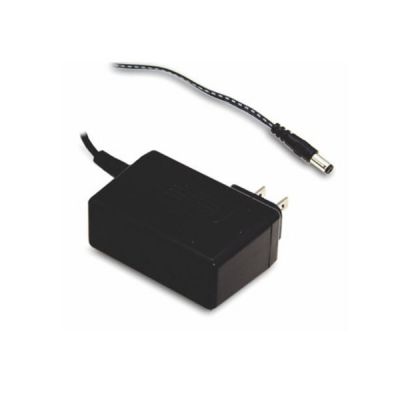

Meanwell 25W AC-DC High Reliability Slim Wall-mounted Adaptor with 7.5V2.93A0-2.93A22W80mVp-p±5.0%±1.0%±5.0%

- +
Availability:In stock
SKU Meanwell SGA25U07-P1J
Brand Meanwell
Details

Meanwell SGA25U07 is a 25W ultra slim single-output green adaptor with 7.5V2.93A0-2.93A22W80mVp-p. The item is designed compact, wall-mounted style and convenient for carry. It is a classⅡ power unit (no FG),equipped with standard 2-Pin U.S. plug. At the same time, SGA25U07 accepts input range from 90VAC to 264VAC. with output voltage 7.5VDC. Therefore, it could satisfy the demands for various types of consumer electronic devices. As the efficiency reaches high up to 88.5% and extremely low no-load power consumption below O.075W, Meanwell SGA25U07 is compliant with the latest U.S. energy regulation EISA 2007/DoE (Level VI). Apart from them, the supreme feature allows the adaptor to save energy when it is under either operating mode or standby mode. The model is also approved for international safety regulations, and adopts the 94V-0 flame retardant plastic case, which could effectively prevent users from electric hazards. Thanks to its high safety, high reliability and high quality, Meanwell SGA25U07 serves as a high performance power supply solution for various types of consumer electronic devices.Meanwell SGA25U07 Price and Specs 25W AC-DC Slim Wall-mounted Adaptor SGA25U05 07 09 12 15 18 24 48 LPS 7.5V 2.93A YCICT

Meanwell SGA25U07-P1J Encoding

SGA Series Name
25 Rated Wattage
U US 2 pin AC Plug
7 Output Voltage
P1J DC plug type Р1J: Рlug fоr ѕtаndаrd mоdеl, 2.1 ѱ Х5. 5ѱ Х 11 mm,C+ tuning fork type
Other Options available by customer requested

Meanwell SGA25U07-P1J Specifications

ORDER NO. SGA25U07-P1J
OUTPUT SAFETY MODEL NO. SGA25U07
DC VOLTAGE 7.5V
RATED CURRENT 2.93A
CURRENT RANGE 0-2.93A
RATED POWER 22W
RIPPLE & NOISE (max.) 80mVp-p
VOLTAGE TOLERANCE ±5.0%
LINE REGULATION ±1.0%
LOAD REGULATION ±5.0%
SETUP, RISE, HOLD UP TIME 1500ms, 60ms, 10ms/230VAC 1500ms, 60ms, 10ms/115VAC at full load
INPUT VOLTAGE RANGE 90 ~ 264VAC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 85.00%
AC CURRENT 0.7A / 115VAC 0.35A / 230VAC
INRUSH CURRENT (max.) Cold start 40A / 115VAC 60A / 230VAC
LEAKAGE CURRENT(max.) 0.25mA / 240VAC
PROTECTION OVERLOAD 120 ~ 180% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 110 ~ 140% rated output voltage
Protection type : Clamp by zener diode, output short
Others Life 3 years : 100% load 40, 8hours / day
MTBF 450Khrs min. MIL-HDBK-217F(25)
DIMENSION 75.5*32*47.5mm (L*W*H)
PACKING 158g ; 60pcs / 10.5kg / CARTON

Meanwell SGA25U07-P1J Features

l  Ultra slim

l  Pass LPS

l  3 years warranty

l  Universal AC input/Full range

l  2 pole USA plug, ClassⅡ power unit

l  No load power consumption<0.075W

l  Energy efficiency Level VI

l  Comply with EISA 2007/DoE

l  Protections: Short circuit/Overload/Over voltage

l  Fully enclosed plastic case

l  54V model available for PoE (optional)

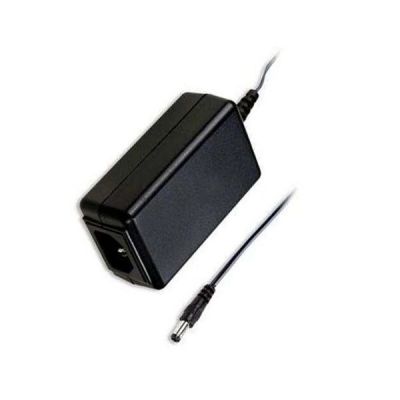

Meanwell SGA25U07 Price and Specs 25W AC-DC Slim Wall-mounted Adaptor SGA25U05 07 09 12 15 18 24 48 7.5V 2.93A YCICT

Meanwell SGA25U07-P1J Applications

l  Consumer electronic devices

l  Telecommunication devices

l  Office facilities

l  Industrial equipment

l  Power sourcing equipment of PoE

Meanwell SGA25U07 Price and Specs 25W AC-DC Slim Wall-mounted Adaptor SGA25U05 07 09 12 15 18 24 48 LPS 2.93A YCICT

Meanwell SGA25U07-P1J Mechanical Diagram

Meanwell SGA25U07 Price and Datasheet 25W AC-DC Slim Wall-mounted Adaptor SGA25U05 07 09 12 15 18 24 48 LPS 2.93A YCICT
