SGA25E09-P1J
15.29

SGA25E09-P1J

$15.29

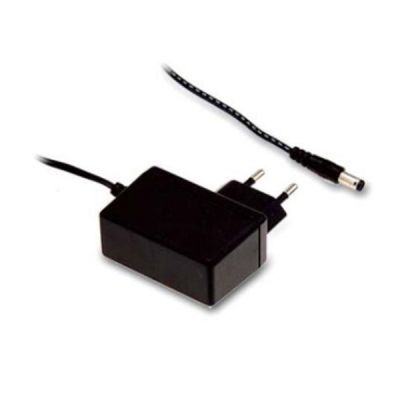

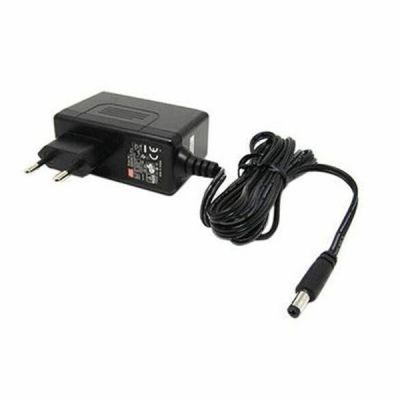

Meanwell 25W AC-DC High Reliability Slim Wall-mounted Adaptor with 9V2.77A0-2.77A25W80mVp-p±5.0%±1.0%±5.0%

- +
Availability:In stock
SKU Meanwell SGA25E09-P1J
Brand Meanwell
Details

Meanwell SGA25E09 is a 25W ultra slim single-output green adaptor with 9V2.77A0-2.77A25W80mVp-p. The item outstands compact, wall-mounted style and convenient for carry. It is a classⅡpower unit (no FG) with standard 2-Pin European plug. SGA25E09 accepts input range from 90VAC to 264VAC, provided with output voltage 9VDC, so that this could meet the demands for various types of consumer electronic devices. As the efficiency reaches high up to 89% and extremely low no-load power consumption below 0.075W, Meanwell SGA25E09 is compliant with EU ErP and meet CoC version 5. Additionally, the supreme feature allows the adaptor to save energy when it is under either operating mode or standby mode. The model is also approved for international safety regulations. Apart from them, It adopts the 94V-0 flame retardant plastic case, which can effectively prevent users from electric hazards. In light of its high safety, high reliability and high quality, Meanwell SGA25E09 serves as a high performance power supply solution for various types of consumer electronic devices.

Meanwell SGA25E09 Price and Specs 25W AC-DC Slim Wall-mounted Adaptor SGA25E05 07 09 12 15 18 24 48 LPS 9V YCICT

Meanwell SGA25E09-P1J Encoding

SGA Series Name
25 Rated Wattage
E EURO 2pin AC Plug
9 Output Voltage
P1J DC plug type Р1J: Рlug fоr ѕtаndаrd mоdеl, 2.1 ѱ Х5. 5ѱ Х 11 mm,C+ tuning fork type
Other Options available by customer requested

Meanwell SGA25E09-P1J Specifications

ORDER NO. SGA25E09-P1J
OUTPUT SAFETY MODEL NO. SGA25E09
DC VOLTAGE 9V
RATED CURRENT 2.77A
CURRENT RANGE 0-2.77A
RATED POWER 25W
RIPPLE & NOISE (max.) 80mVp-p
VOLTAGE TOLERANCE ±5.0%
LINE REGULATION ±1.0%
LOAD REGULATION ±5.0%
SETUP, RISE, HOLD UP TIME 1500ms, 60ms, 10ms/230VAC 1500ms, 60ms, 10ms/115VAC at full load
INPUT VOLTAGE RANGE 90 ~ 264VAC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 85.50%
AC CURRENT 0.7A / 115VAC 0.35A / 230VAC
INRUSH CURRENT (max.) Cold start 40A / 115VAC 60A / 230VAC
LEAKAGE CURRENT(max.) 0.25mA / 240VAC
PROTECTION OVERLOAD 120 ~ 180% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 110 ~ 140% rated output voltage
Protection type : Clamp by zener diode, output short
ENVIRONMENT WORKING TEMP. -20 ~ +60 (Refer to "Derating Curve")
WORKING HUMIDITY 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -20 ~ +85, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03% / (0 ~ 40)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE I/P-O/P:4242VDC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
Others Life 3 years : 100% load 40, 8hours / day
MTBF 450Khrs min. MIL-HDBK-217F(25)
DIMENSION 75.5*32*47.5mm (L*W*H)

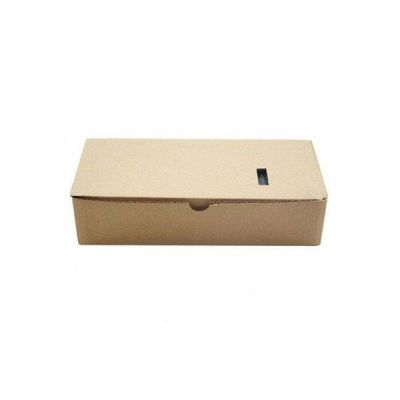

PACKING 158g ; 60pcs / 10.5kg / CARTON

Meanwell SGA25E09-P1J Features

l  Ultra slim

l  Pass LPS

l  3 years warranty

l  Energy efficiency Level VI

l  Universal AC input/Full range

l  2 pole EURO plug, ClassⅡpower unit

l  No load power consumption<0.075W

l  Comply with EU ErP and meet CoC version 5

l  Protections: Short circuit/Overload/Over voltage

l  Fully enclosed plastic case

l  54V model available for PoE (optional)

Meanwell SGA25E09 Price and Specs 25W AC-DC Slim Wall-mounted Adaptor SGA25E05 07 09 12 15 18 24 48 LPS 9V 2.77A YCICT

Meanwell SGA25E09-P1J Applications

l  Consumer electronic devices

l  Telecommunication devices

l  Office facilities

l  Industrial equipment

l  Power sourcing equipment of PoE

Meanwell SGA25E09 Price and Specs 25W AC-DC Slim Wall-mounted Adaptor SGA25E05 07 09 12 15 18 24 48 LPS Pass 2.77A YCICT

Meanwell SGA25E09-P1J Mechanical Diagram

Meanwell SGA25E09 Price and Datasheet 25W AC-DC Slim Wall-mounted Adaptor SGA25E05 07 09 12 15 18 24 48 LPS 2.77A YCICT
