SGA12E07-P1J
12.92

SGA12E07-P1J

$12.92

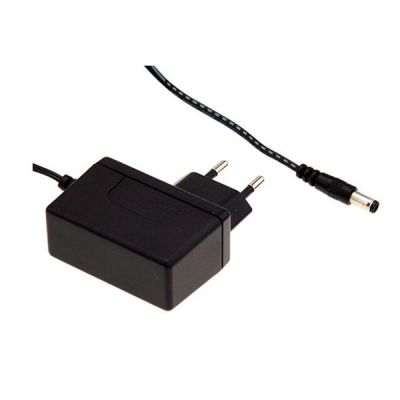

Meanwell 12W AC-DC High Reliability Slim Wall-mounted Adaptor with 7.5V1.6A0-1.6A12W50mVp-p±5.0%±1.0%±5.0%

- +
Availability:In stock
SKU Meanwell SGA12E07-P1J
Brand Meanwell
Details

Meanwell SGA12E07 is a 12W ultra slim single-output green adaptor with 7.5V1.6A0-1.6A12W50mVp-p. The unit highlights compact, wall-mounted style and convenient for carry. It is a classⅡpower unit (no FG), equipped with standard 2-Pin European plug. Meanwhile, SGA12E07 accepts input range from 90VAC to 264VAC with output voltages 7.5VDC, so that this could meet the demands for various types of consumer electronic devices. As the efficiency reaches high up to 86% and extremely low no-load power consumption below 0.075W, SGA12E07 is compliant with EU ErP and meet CoC version 5. Moreover, the supreme feature allows the adaptor to save energy when it is under either operating mode or standby mode. SGA12E07 is also approved for international safety regulations, and adopts 94V-0 flame retardant plastic case, which could effectively prevent users from electric hazards. Thanks to its high safety, high reliability and high quality, Meanwell SGA12E07 serves as a high performance power supply solution for various types of consumer electronic devices.

Meanwell SGA12E07 Price and Specs 12W AC-DC Slim Wall-mounted Adaptor  SGA12E05 07 09 12 15 18 24 48 2.4A LPS Pass YCICT

Meanwell SGA12E07-P1J Encoding

SGA Series Name
12 Rated Wattage
E EURO 2pin AC Plug
7 Output Voltage
P1J DC plug type Р1J: Рlug fоr ѕtаndаrd mоdеl, 2.1 ѱ Х5. 5ѱ Х 11 mm,C+ tuning fork type
USB: USB (type A0 for 5V standard model Only
Other Options available by customer requested

Meanwell SGA12E07-P1J Specifications

ORDER NO. SGA12E07-P1J
OUTPUT SAFETY MODEL NO. SGA12E07
DC VOLTAGE 7.5V
RATED CURRENT 1.6A
CURRENT RANGE 0-1.6A
RATED POWER 12W
RIPPLE & NOISE (max.) 50mVp-p
VOLTAGE TOLERANCE ±5.0%
LINE REGULATION ±1.0%
LOAD REGULATION ±5.0%
SETUP, RISE, HOLD UP TIME 1500ms, 50ms, 10ms/230VAC 1500ms, 50ms, 10ms/115VAC at full load
INPUT VOLTAGE RANGE 90 ~ 264VAC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 83.00%
AC CURRENT 0.4A / 115VAC 0.2A / 230VAC
INRUSH CURRENT (max.) Cold start 30A / 115VAC 60A / 230VAC
LEAKAGE CURRENT(max.) 0.25mA / 240VAC
PROTECTION OVERLOAD 110 ~ 200% rated output power
 Protection type : Clamp by zener diode, output short
OVER VOLTAGE 110 ~ 140% rated output voltage
Protection type : Clamp by zener diode, output short
ENVIRONMENT WORKING TEMP. -20 ~ +60 (Refer to "Derating Curve")
WORKING HUMIDITY 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -20 ~ +85, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03% / (0 ~ 40)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE I/P-O/P:4242VDC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
Others Life 3 years : 100% load 40, 8hours / day
MTBF 265Khrs min. MIL-HDBK-217F(25)
DIMENSION 62.2*27.4*39.7mm (L*W*H)
PACKING 100g ; 90pcs / 10kg / CARTON for cable connection ; 59.5g ; 90pcs / 8kg / CARTON for USB connection

Meanwell SGA12E07-P1J Features

l  Pass LPS

l  Ultra slim

l  3 years warranty

l  Universal AC input/Full range

l  2 pole EURO plug, ClassⅡpower unit

l  No load power consumption<0.075W

l  Energy efficiency Level VI

l  Comply with EU ErP and meet CoC version 5

l  Protections: Short circuit/Overload/Over voltage

l  Fully enclosed plastic case

l  54V model available for PoE (optional)

l  Various DC plug quick adapter accessory available

Meanwell SGA12E07 Price and Specs 12W AC-DC Slim Wall-mounted Adaptor  SGA12E05 07 09 12 15 18 24 48 1.6A LPS YCICT

Meanwell SGA12E07-P1J Applications

l  Consumer electronic devices

l  Telecommunication devices

l  Office facilities

l  Industrial equipment

l  Power sourcing equipment of PoE

Meanwell SGA12E07 Price and Specs 12W AC-DC Slim Wall-mounted Adaptor  SGA12E05 07 09 12 15 18 24 48 7.5V 1.6A YCICT

Meanwell SGA12E07-P1J Mechanical Diagram

Meanwell SGA12E07 Price and Datasheet 12W AC-DC Slim Wall-mounted Adaptor  SGA12E05 07 09 12 15 18 24 48 7.5V 1.6A YCICT
