SE-600-27
48.69

SE-600-27

$48.69

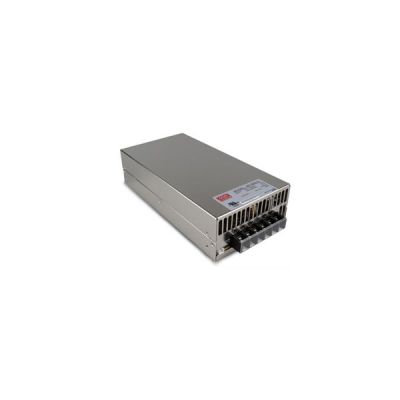

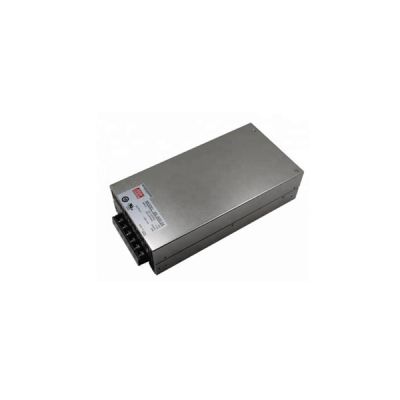

Meanwell 600W Single Output Power Supply 27V22.2A0-22.2A599.4W15024-30V±1%±0.5%±0.5%

- +
Availability:In stock
SKU Meanwell SE-600-27
Brand Meanwell
Details

Meanwell SE-600-27 is economical medium and high-power switching power supply with 27V22.2A0-22.2A599.4W. It is produced with a lead-free process, which meets environmental protection requirements, and international UL/CUL safety certification. Furthermore, SE-600-27 offers complete protection functions like short-circuit protection, overload protection, overvoltage protection and Overheating protection. The entire series is an enhanced version of NE series power supply. Meanwell SE-600-27 is equipped with built-in remote detection function (with line loss compensation function) and built-in DC fan forced ventilation cooling. Additionally, the product has LED lights indicating the working status, and 100% full load aging test. Considering its High power density, High-cost performance and high longevity, Meanwell SE-600-27 functions as a high price-to-performance power supply solution for various industrial fields.

Meanwell SE-600-27 Specifications

Meanwell SE-600-27 Specifications

Model SE-600-27
Output DC VOLTAGE 27V
RATED CURRENT 22.2A
CURRENT RANGE 0-22.2A
RATED POWER 599.4W
RIPPLE & NOISE (max.) mVp-p 150
VOLTAGE ADJ. RANGE 24-30V
VOLTAGE TOLERANCE ±1%
LINE REGUL ATION ±0.5%
LOAD REGULATION ±0.5%
SETUP, RISE TIME 1000ms, 50ms/230VAC 1000ms, 50ms/115VAC at full load
HOLD UP TIME  20ms/230VAC 16ms/115VAC at full load
Input VOLTAGE RANGE 90 ~ 132VAC / 180 ~ 264VAC selected by SW 254 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.)  87.00%
AC CURRENT (Typ.) 12A/115VAC 7.5A/230VAC
INRUSH CURRENT (Typ. ) 30A/115VAC 60A/230VAC
LEAKAGE CURR ENT <2.0mA / 240VAC
PROTECTION OVERLOAD 105 ~ 125% rated output power
Protection type : Shut down o/p voltage, re-power on to recover
OVER VOLTAGE 31-36.5V
Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE 85±5 (TSW1) detect on heatsink of power transistor
Shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENT WORKING TEMP -20 ~ +60 (Refer to output load derating curve)
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.05%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY SAFETY STANDARDS CB IEC62368-1, UL60950-1,UL62368-1, EAC TP TC 004, BSMI CNS14336-1, KC K60950-1(for 12V,24V only) approved
WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
Others MTBF 521.7K hrs min. Telcordia TR/SR-332 (Bellcore) ; 197K hrs min. MIL-HDBK-217F (25)
DIMENSION 247*127*63.5mm (L*W*H)
PACKING 2.1Kg; 6pcs/13.4Kg/1.03CUFT

Meanwell SE-600-27 Features

l  AC input range selected by switch

l  Protection type: short circuit/overload/overvoltage/over temperature

l  Forced air cooling by built-in DC fan

l    High power density: 4.9w/in³

l  Built-in remote sensing function

l  Passed UL certification

l  Cost Competitive

2-year warranty

Meanwell SE-600-27 Features

Meanwell SE-600-27 Mechanical Diagram

Meanwell SE-600-27 Mechanical Diagram
