SE-450-36
47.96
Details

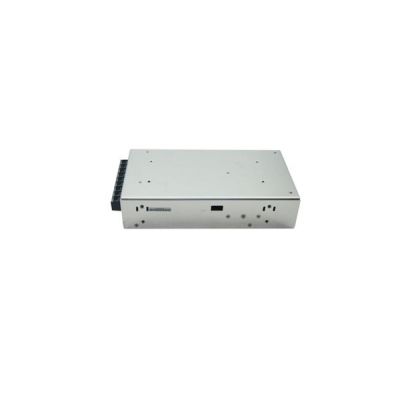

Meanwell SE-450-36 is a small and medium -size high-power switching power supply which is produced with a lead-free process. This way fulfills the environmental protection requirements and also has complete protection functions and meanwhile 100% full load aging test. Furthermore, Meanwell SE-450-36 is an enhanced version of the NE series power supply with built-in DC fan forced ventilation cooling and LED indicators showing the working status of the power supply. Because of the high performance, good warranty and long longevity, Meanwell SE-450-36 functions as a high price-to-performance power supply solution for various industrial fields.
Meanwell SE-450-36 Specifications
| Model | SE-450-36 | |
| Output | DC VOLTAGE | 36V |
| RATED CURRENT | 12.5A | |
| CURRENT RANGE | 0-12.5A | |
| RATED POWER | 450W | |
| RIPPLE & NOISE (max.) mVp-p | 200 | |
| VOLTAGE ADJ. RANGE | 32.4-39.6V | |
| VOLTAGE TOLERANCE | ±1% | |
| LINE REGUL ATION | ±0.2% | |
| LOAD REGULATION | ±0.5% | |
| SETUP, RISE TIME | 1500ms, 50ms/230VAC 1500ms, 50ms/115VAC at full load | |
| HOLD UP TIME | 16ms/230VAC 12ms/115VAC at full load | |
| Input | VOLTAGE RANGE | 90 ~ 132VAC / 180 ~ 264VAC selected by SW 254 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 86.00% | |
| AC CURRENT (Typ.) | 10A/115VAC 6A/230VAC | |
| INRUSH CURRENT (Typ. ) | 35A/115VAC 55A/230VAC | |
| LEAKAGE CURR ENT | <2.5mA / 240VAC | |
| PROTECTION | OVERLOAD | 105 ~ 150% rated output power |
| Protection type : Shut down o/p voltage, re-power on to recovery | ||
| OVER VOLTAGE | 45 ~ 52V | |
| Protection type : Shut down o/p voltage, re-power on to recovery | ||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |
| ENVIRONMENT | WORKING TEMP | -10 ~ +60℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃,10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.05%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | |
| SAFETY | SAFETY STANDARDS | UL62368-1, EAC TP TC 004, BSMI CNS14336-1 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| Others | MTBF | 200K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 225*124*50mm (L*W*H) | |
| PACKING | 1.25Kg;12PCS/16Kg/1CUF | |
Meanwell SE-450-36 Features
l Forced air cooling by built-in DC ball bearing fan
l Built-in remote sense function
l LED indicator for power on
l UL approved
l 2 years warranty
l AC input range selected by switch
l Protections: Short circuit/Overload/Overvoltage/Over temperature
Meanwell SE-450-36 Mechanical Diagram
