SE-450-15
46.69

SE-450-15

$46.69

Meanwell 450W Single Output Power Supply 15V30A0-30A450W20013.5-16.5V±1%±0.3%±0.5%

- +
Availability:In stock
SKU Meanwell SE-450-15
Brand Meanwell
Details

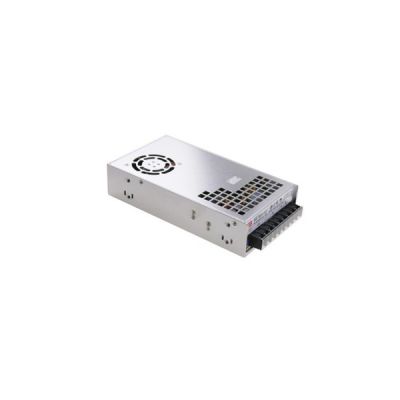

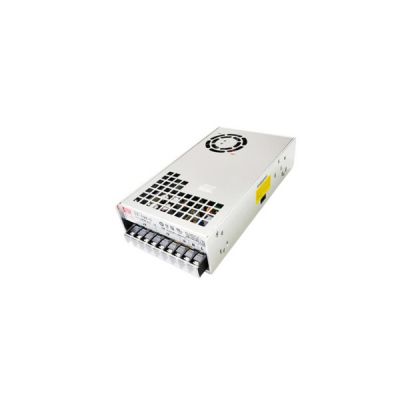

Meanwell SE-450-15 is a small and medium -size high-power switching power supply manufactured with a lead-free process. It fulfills the environmental protection requirements and has complete protection functions and at the same time 100% full load aging test. Moreover, SE-450-15 is an enhanced version of the NE series power supply with built-in DC fan forced ventilation cooling and LED indicators showing the working status of the power supply. Thanks to the high performance, good warranty and long longevity, Meanwell SE-450-15 acts as a high price-to-performance power supply solution for various industrial fields.

Meanwell SE-450-15 Specifications

Meanwell SE-450-15 Specifications

Model SE-450-15
Output DC VOLTAGE 15V
RATED CURRENT 30A
CURRENT RANGE 0-30A
RATED POWER 450W
RIPPLE & NOISE (max.) mVp-p 200
VOLTAGE ADJ. RANGE 13.5-16.5V
VOLTAGE TOLERANCE ±1%
LINE REGUL ATION ±0.3%
LOAD REGULATION ±0.5%
SETUP, RISE TIME 1500ms, 50ms/230VAC 1500ms, 50ms/115VAC at full load
HOLD UP TIME  16ms/230VAC 12ms/115VAC at full load
Input VOLTAGE RANGE 90 ~ 132VAC / 180 ~ 264VAC selected by SW 254 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.)  84.00%
AC CURRENT (Typ.) 10A/115VAC 6A/230VAC
INRUSH CURRENT (Typ. ) 35A/115VAC 55A/230VAC
LEAKAGE CURR ENT <2.5mA / 240VAC
PROTECTION OVERLOAD 105 ~ 150% rated output power
Protection type : Shut down o/p voltage, re-power on to recovery
OVER VOLTAGE 18 ~ 21V
Protection type : Shut down o/p voltage, re-power on to recovery
OVER TEMPERATURE Shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENT WORKING TEMP -10 ~ +60 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85,10 ~ 95% RH
TEMP. COEFFICIENT ±0.05%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY SAFETY STANDARDS UL62368-1, EAC TP TC 004, BSMI CNS14336-1 approved
WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
Others MTBF 200K hrs min. MIL-HDBK-217F (25)
DIMENSION 225*124*50mm (L*W*H)
PACKING 1.25Kg;12PCS/16Kg/1CUF

Meanwell SE-450-15 Features

l  UL approved

l  2 years warranty

l  AC input range selected by switch

l  Built-in remote sense function

l  LED indicator for power on

l  Protections: Short circuit/Overload/Overvoltage/Over temperature

l  Forced air cooling by built-in DC ball bearing fan

Meanwell SE-450-15 Features

Meanwell SE-450-15 Mechanical Diagram

Meanwell SE-450-15 Mechanical Diagram
