RT-125C
23.46

RT-125C

$23.46

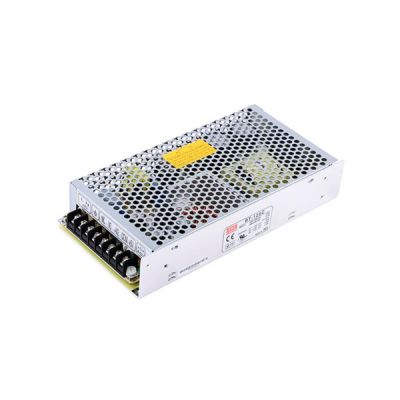

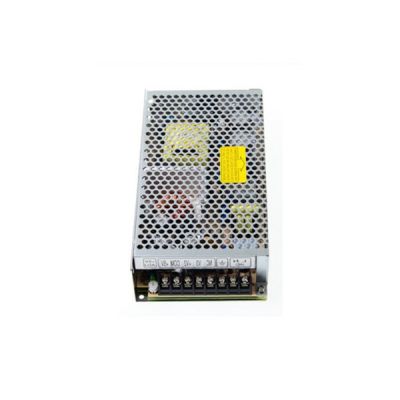

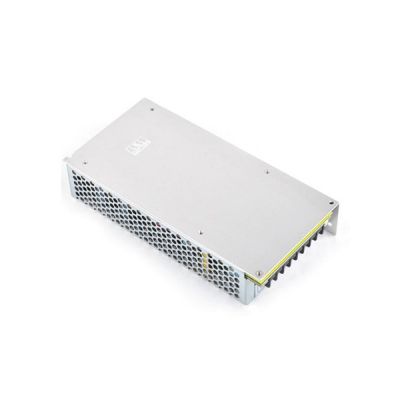

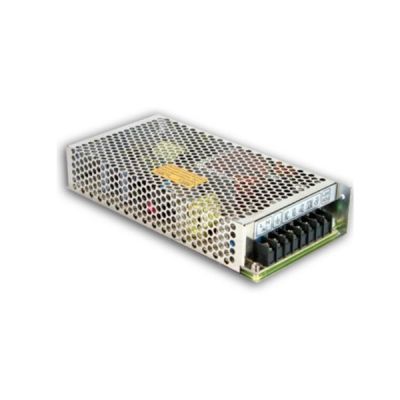

Meanwell 125W Triple Output Switching Power Supply CH1CH2CH35V15V-15V10A 4.5A1A0-12A0-6A0-1A132W

- +
Availability:In stock
SKU Meanwell RT-125C
Brand Meanwell
Details

Meanwell RT-125C is 125W Triple Output Miniature size, non-PFC Switching Power Supply (CH1CH2CH35V15V-15V10A 4.5A1A0-12A0-6A0-1A132W). It is able to withstand 300VAC surge input for 5 seconds and 5G vibration test as well. By adopting 105℃ long life electrolytic capacitors and cooling by free air convection. This can work at temperature up to 70℃. Considering its high efficiency, long life and high reliability, Meanwell RT-125C is suitable to use in harsh environments.

Meanwell RT-125C Specifications

Meanwell RT-125C Specifications

Model RT-125C
Output OUTPUT NUMBER CH1 CH2 CH3
DC VOLTAGE 5V 15V -15V
RATED CURRENT 10A 4.5A 1A
CURRENT RANGE 0-12A 0-6A 0-1A
RATED POWER 132W
RIPPLE & NOISE (max.) mVp-p 80 150 150
VOLTAGE ADJ. RANGE CH1: 4.75-5.5V
VOLTAGE TOLERANCE ±2% +8,-5% ±6%
LINE REGUL ATION ±0.5% ±1% ±1%
LOAD REGUL ATION ±1% ±4% ±6%
SETUP, RISE TIME 500ms, 20ms/230VAC 1200ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.) 25ms/230VAC 30ms/115VAC at full load
Input VOLTAGE RANGE 88 ~ 132VAC / 176 ~ 264VAC selected by switch 248 ~ 373VDC(Withstand 300VAC surge for 5sec. Without damage)
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 79%
AC CURRENT (Typ.) 3A/115VAC 2A/230VAC
INRUSH CURRENT (Typ.) COLD START 50A/230VAC
LEAKAGE CURRENT <2mA / 240VAC
PROTECTION OVERLOAD 110 ~ 150% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
UL62368-1,
OVER VOLTAGE CH1: 5.75 ~ 6.75V
Protection type : Hiccup mode, recovers automatically after fault condition is removed
ENVIRONMENT WORKING TEMP. -25 ~ +70 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)on CH1 output
VIBRATION 10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY &EMC SAFETY STANDARDS UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level, criteria A, EAC TP TC 020
Others MTBF 209.3Khrs min. MIL-HDBK-217F (25)
DIMENSION 199*98*38mm (L*W*H)
PACKING 0.7Kg; 20pcs/14Kg/0.85CUFT

Meanwell RT-125C Features

l  Protections: Short circuit/Overload/Over voltage

l  Cooling by free air convection

l  LED indicator for power on

l  100% full load burn-in test

l  All using 105 ℃long life electrolytic capacitors

l  Withstand 300V AC surge input for 5 second

l  High operating temperature up to 70℃

l  Withstand 5G vibration test

l  High efficiency, long life and high reliability

l  3 years warranty

Meanwell RT-125C Features

Meanwell RT-125C Mechanical Diagram

Meanwell RT-125C Mechanical Diagram
