RST-7K5-230
1266.79
Details

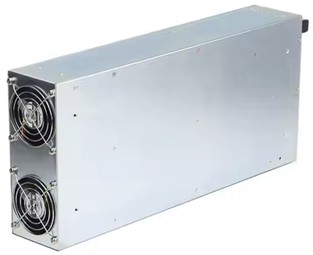

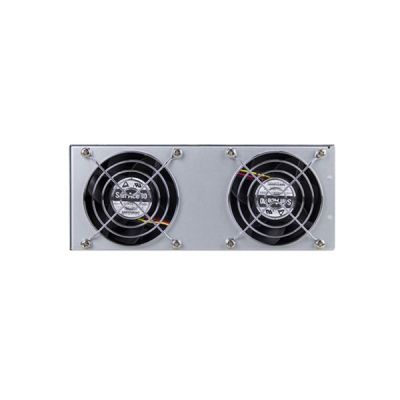

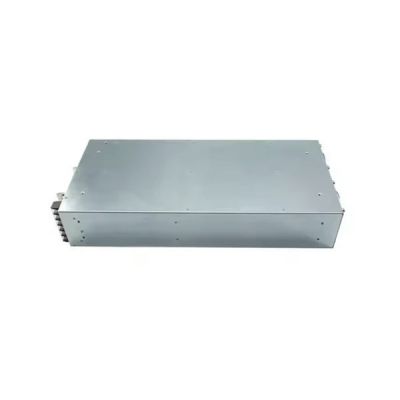

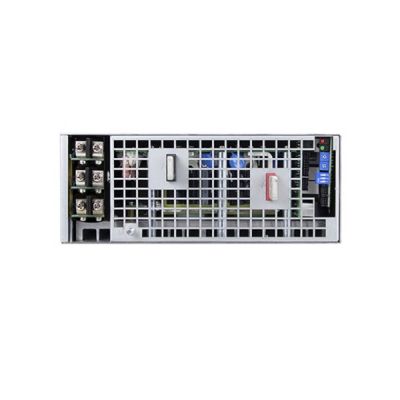

Meanwell RST-7K5-230 is a 7.5KW 3 ф input enclosed type AC/DC power supply with 230V32.4A0-34.5A7452W216-260V2Vp-p. The unit operates for the wide range three phase AC input and offers the model with the high voltage DC output(115V/230V/380V), which mostly demanded from the industry. In addition, two types of cooling methods, forced air and water cooling, that can be working at ambient temperature up to 70℃. Furthermore, RST-7K5-230 provides vast design flexibility by equipping various built-in functions such as output programming, active current sharing, remote ON-OFF control, alarm signals....etc.
Meanwell RST-7K5-230Encoding
| RST | Series Name |
| 7K5 | Output Wattage |
| 115 | Output Voltage ( 115V/230V/380V) |
| □ | L: Water Cooling |
| Blank: Forced Air Cooling |
Meanwell RST-7K5-230 Specifications
| Model | RST-7K5-115 | RST-7K5-230 | RST-7K5-380 | |
| Output | DC VOLTAGE (factory default) | 115V | 230V | 380V |
| CURRENT (factory default) | 65A | 32.4A | 19.77A | |
| CURRENT RANGE | 0-65A | 0-34.5A | 0-22.5A | |
| RATED POWER | 7475W | 7452W | 7515W | |
| FULL POWER VOLTAGE RANGE | 115-138V | 216-260V | 334-400V | |
| RIPPLE & NOISE (max.) | 1Vp-p | 2Vp-p | 4Vp-p | |
| VOLTAGE ADJ. RANGE | 90 ~ 138V | 170 ~ 260V | 260 ~ 400V | |
| Can be adjusted via built-in potentiometer | ||||
| VOLTAGE TOLERANCE | ±1.0% | ±1.0% | ±1.0% | |
| LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | |
| LOAD REGULATION | ±0.5% | ±0.5% | ±0.5% | |
| SETUP, RISE TIME | 3000ms, 200ms at full load | |||
| HOLD UP TIME (Typ.) | 16ms 230VAC/400VAC at 75% load 10ms / 230VAC/400VAC at full load | |||
| Input | VOLTAGE RANGE | 3ψ 3W/△196~305VAC or 3ψ 4W/Y 340~530VAC | ||
| FREQUENCY RANGE | 47 ~ 63Hz | |||
| POWER FACTOR (Typ.) | >=0.98/230VAC(400VAC)/>=0.97/277VAC(480VAC) at full load | |||
| EFFICIENCY (Typ.) | 94.00% | 95.00% | 95.00% | |
| AC CURRENT (Typ.) | 22.5A/230VAC(3ψ 3-wire /△) 13A/400VAC(3ψ 4-wire / Y) | |||
| INRUSH CURRENT (Typ. ) | 75A/230VAC(3ψ 3-wire /△) 50A/400VAC(3ψ 4-wire / Y) | |||
| LEAKAGE CURR ENT | <3.5mA/Y 530VAC <10mA /△305VAC | |||
| PROTECTION | OVERLOAD | 100 ~ 107% of rated current | ||
| Protection type : Constant current limiting, unit will shutdown after 5 sec. re-power on to recover | ||||
| OVER VOLTAGE | 145 ~ 166V | 273 ~ 312V | 420 ~ 480V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |||
| FUNCTION | CURRENT SHARING | Up to 4 units. Please refer to the Function Manual | ||
| OUTPUT VOLTAGE PROGRAMMABLE | Adjustment of output voltage is allowable between 1 ~ 120% of nominal output voltage. Please refer to the PV curve Function Manual | |||
| CONSTANT CURRENT LEVEL PROGRAMMABLE | Adjustment of constant current level is allowable between 20 ~ 100% of rated current. Please refer to the Function Manual | |||
| REMOTE ON-OFF CONTROL | Please refer to the Function Manual | |||
| ALARM SIGNAL OUTPUT | AC fail, DC OK, fan fail, OTP. Please refer to the Function Manual | |||
| ENVIRONMENT | WORKING TEMP | -30 ~ +70℃ (Refer to "Derating Curve") | ||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | |||
| SAFETY &EMC | SAFETY STANDARDS | UL62368-1, CAN/CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved | ||
| WITHSTAND VOLTAGE | I/P-O/P:4.3KVDC I/P-FG:2.8KVDC O/P-FG:2.8KVDC | |||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||
| EMC EMISSION | Parameter | Standard | Test Level | |
| Conducted | BS EN/EN55032 (CISPR32) / BS EN/EN55011 (CISPR11) | Class A | ||
| Radiated | BS EN/EN55032 (CISPR32) / BS EN/EN55011 (CISPR11) | Class A | ||
| Harmonic Current | BS EN/EN61000-3-2 | ---- | ||
| Voltage Flicker | BS EN/EN61000-3-3 | ---- | ||
| EMC IMMUNITY | BS EN/EN55024 , BS EN/EN61204-3, BS EN/EN61000-6-2 | |||
| Parameter | Standard | Test Level | ||
| ESD | BS EN/EN61000-4-2 | Level 3, 8KV air ; Level 2, 4KV contact | ||
| Radiated | BS EN/EN61000-4-3 | Level 3 | ||
| EFT / Burst | BS EN/EN61000-4-4 | Level 3 | ||
| Surge | BS EN/EN61000-4-5 | Level 4, 4KV/Line-Earth ; Level 3, 2KV/Line-Line | ||
| Conducted | BS EN/EN61000-4-6 | Level 3 | ||
| Magnetic Field | BS EN/EN61000-4-8 | Level 4 | ||
| Voltage Dips and Interruptions | BS EN/EN61000-4-11 | >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods |
||
| Others | MTBF | 234.5K hrs min. Telcordia SR-332 (Bellcore) ; 27.1K hrs min. MIL-HDBK-217F (25℃) | ||
| DIMENSION | RST-7K5: 460*211*83.5mm (L*W*H) RST-7K5-L: 460*216*83.5mm (L*W*H) | |||
| PACKING | RST-7K5: 12Kg; 1pcs/13Kg/1.25CUFT RST-7K5-L: 12Kg; 1pcs/13Kg/1.05CUFT | |||
Meanwell RST-7K5-230 Features
l Зψ З-wіrе/△196~З05VАС оr Зψ 4-wіrе / Y З40~5З0VАС
l High efficiency up to 95%
l 5 years warranty
l Water/forced air cooling selectable
l Wide voltage adjustment range 1~120%
l Active current sharing up to 4 units (28.5KW)
l Built-in remote ON-OFF control/Alarm signal
l Output voltage and constant current level programmable
l Protections: Short circuit/Overload/Over voltage /Over temperature/Fan fail
Meanwell RST-7K5-230 Applications
l Energy & power system
l U.V or laser diode application
l Electrolysis system
l Factory control or automation apparatus
l Burn-in facility
l RF application
l EV charging station
Meanwell RST-7K5-230 Mechanical Diagram
