RSP-150-7.5
34.58

RSP-150-7.5

$34.58

Meanwell 150W Single Output enclosed type AC/DC power supply with PFC Function and 7.5V20A0-20A150W1007.13-8.25V±2%±0.5%±1%

- +
Availability:In stock
SKU Meanwell RSP-150-7.5
Brand Meanwell
Details

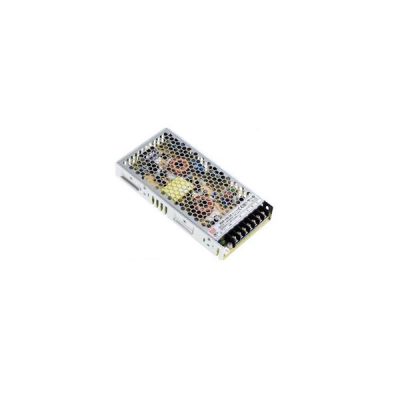

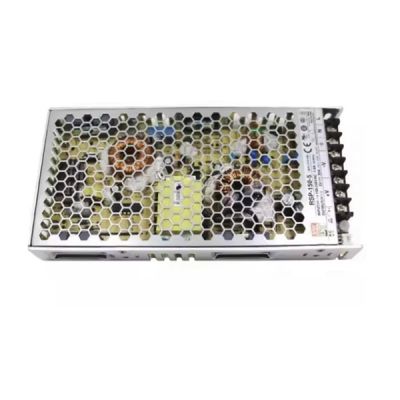

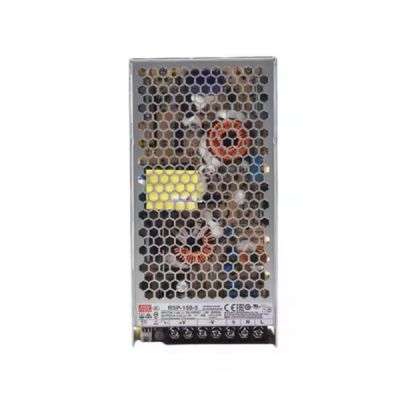

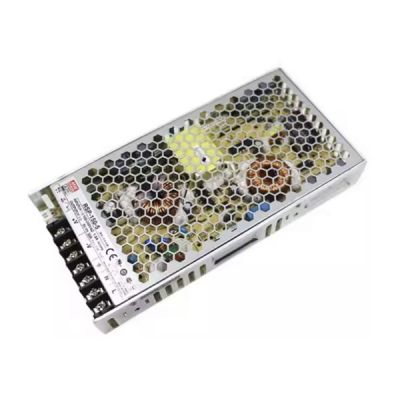

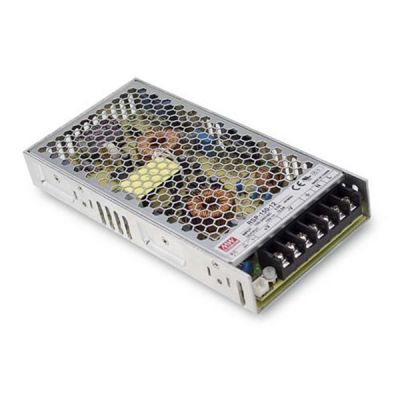

Meanwell RSP-150-7.5 is a 150W single output enclosed type AC/DC power supply with 7.5V20A0-20A150W. it runs for 85-264 VAC input voltage and gives with the DC output mostly demanded from the industry. RSP-150-7.5 power supply is cooled by free air convection, and operates for the temperature up to 70C. In light of its high efficiency, long longevity and high reliability, Meanwell RSP-150-7.5 functions as a high price-to-performance power supply solution for various fields.

Meanwell RSP-150-7.5

Meanwell RSP-150-7.5 Specifications

Model RSP-150-7.5
Output DC VOLTAGE 7.5V
RATED CURRENT 20A
CURRENT RANGE 0-20A
RATED POWER 150W
RIPPLE & NOISE (max.) mVp-p 100
VOLTAGE ADJ. RANGE 7.13-8.25V
VOLTAGE TOLERANCE ±2%
LINE REGUL ATION ±0.5%
LOAD REGULATION ±1%
SETUP, RISE TIME 600ms, 30ms at full load
HOLD UP TIME  16ms at full load
Input VOLTAGE RANGE 85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR PF>0.93/230VAC PF>0.98/115VAC at full load
EFFICIENCY (Typ.)  88.50%
AC CURRENT (Typ.) 1.6A/115VAC 0.8A/230VAC
INRUSH CURRENT (Typ. ) COLD START 45A/230VAC
LEAKAGE CURR ENT <2mA / 240VAC
PROTECTION OVERLOAD 105 ~ 135% rated output power
Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE 8.25-10.13V
Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE Protection type : Shut down o/p voltage, recovers automatically after temperature goes down
FUNCTION REMOTE CONTROL CN1: < 0~0.8VDC POWER ON , 4~10VDC POWER OFF
ENVIRONMENT WORKING TEMP -30 ~ +70(Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.05%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
OVER VOLTAGE CATEGORY ;According to EN61558, EN50178,EN60664-1, EN62477-1;altitude up to 2000 meters
SAFETY &EMC SAFETY STANDARDS UL62368-1, TUV BS EN/EN62368-1, BS EN/EN61558-1, BS EN/EN61558-2-16, EAC TP TC 004, CCC GB4943.1, BSMI CNS14336-1 approved, Design refer to AS/NZS 62368.1
WITHSTAND VOLTAGE I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020, GB9254 Class B, GB17625.1,CNS13438 Class B
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, light industry level, criteria A, EAC TP TC 020
Others MTBF 290.7K hrs min. MIL-HDBK-217F (25)
DIMENSION 199*99*30mm (L*W*H)
PACKING 0.6Kg; 24pcs/15.4Kg/0.89CUFT

Meanwell RSP-150-7.5 Features

l  3 years warranty

l  Built-in active PFC function

l  High efficiency up to 90%

l  Cooling by free air convection

l  Built-in remote ON-OFF control

l  LED indicator for power on

l  Universal AC input/ Full range

l  Protections: Short circuit / Overload / Over voltage/ Over temperature

Meanwell RSP-150-7.5 Features

Meanwell RSP-150-7.5 Applications

l  Factory control or automation apparatus

l  Test and measurement instrument

l  Laser related machine

l  Burn-in facility

l  RF application

Meanwell RSP-150-7.5 Applications

Meanwell RSP-150-7.5 Mechanical Diagram

Meanwell RSP-150-7.5 Mechanical Diagram
