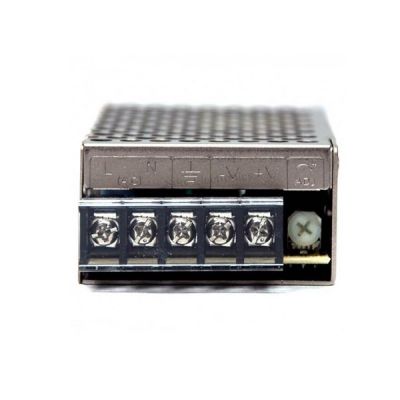

Meanwell 75W Single Output Switching Power Supply with 12V6A0-6A72W120mVp-p10.8-13.2V±1%±0.5%±0.5%

- +
Availability:In stock
SKU Meanwell RS-75-12
Brand Meanwell
Details

Meanwell RS-75-12 is 75W Single Miniature size, non-PFC Output Switching Power Supply with 12V6A0-6A72W120mVp-p10.8-13.2V. This model can stand 5G vibration and operate under 70°C high ambient temperature. By all using 105 ℃ long life electrolytic capacitors and passing 100% full load burn-in test, Meanwell RS-75-12 is able to withstand 300 VAC surge input for 5 seconds. At the same time, 2 outputs are isolated for RID series. What’s more, this model is cooled by free air convection, and with No load power consumption. In addition, RS-75-12 provides the complete protection modes such as Short circuit, Over load and Over voltage. In view of its high efficiency, long life and high reliability Meanwell RS-75-12 is suitable for use in in the critical applications.

Meanwell RS-75-12 Specifications

Meanwell RS-75-12 Specifications

Model RS-75-12
Output DC VOLTAGE 12V
RATED CURRENT 6A
CURRENT RANGE 0-6A
RATED POWER 72W
RIPPLE & NOISE (max.)  120mVp-p
VOLTAGE ADJ. RANGE 10.8-13.2V
VOLTAGE TOLERANCE ±1%
LINE REGUL ATION ±0.5%
LOAD REGUL ATION ±0.5%
SETUP, RISE TIME 500ms, 30ms/230VAC 1200ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.) 60ms/230VAC 14ms/115VAC at full load
Input VOLTAGE RANGE 88 ~ 264VAC 125 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage)
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 84.50%
AC CURRENT (Typ.) 2A/115VAC 1.2A/230VAC
INRUSH CURRENT (Typ.) COLD START 40A/230VAC
LEAKAGE CURRENT <2mA / 240VAC
ENVIRONMENT WORKING TEMP. -25 ~ +70 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes
PROTECTION OVERLOAD 110 ~ 150% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 13.8-16.2
Protection type : Hiccup mode, recovers automatically after fault condition is removed
SAFETY &EMC SAFETY STANDARDS UL62368-1, TUV BS EN/EN62368-1, AS/NZS 62368.1, EAC TP TC 004 approved
WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level, criteria A, EAC TP TC 020
Others MTBF 265Khrs min. MIL-HDBK-217F (25)
DIMENSION 129*98*38mm (L*W*H)
PACKING 0.41Kg; 30pcs/13.3Kg/0.86CUFT

Meanwell RS-75-12 Features

l  3 years warranty

l  Universal AC input/Full range

l  Cooling by free air convection

l  LED indicator for power on

l  100% full load burn-in test

l  Withstand 5G vibration test

l  All using 105℃ long life electrolytic capacitors

l  Withstand 300V AC surge input for 5 second

l  High operating temperature up to 70℃

l  No load power consumption<0. 5W

l  High efficiency, long life and high reliability

l  Protections: Short circuit/Overload/Over voltage

Meanwell RS-75-12 Features

Meanwell RS-75-12 Mechanical Diagram

Meanwell RS-75-12 Mechanical Diagram
