RS-25-48
12.01

RS-25-48

$12.01

Meanwell 25W Single Output Switching Power Supply with 48V0.57A0-0.57A27.36W200mVp-p42-54V±1%±0.5%±0.5%

- +
Availability:In stock
SKU Meanwell RS-25-48
Brand Meanwell
Details

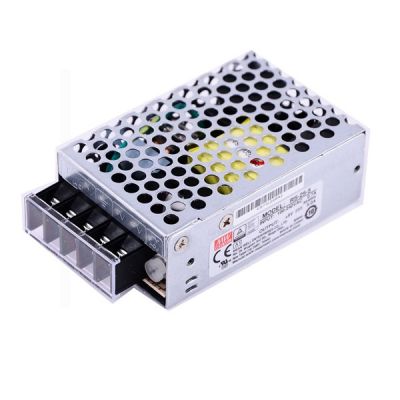

Meanwell RS-25-48 is 25W Single Miniature size, non-PFC Output Switching Power Supply with 48V0.57A0-0.57A27.36W200mVp-p42-54V. This model could withstand 5G vibration and run at 70°C high ambient temperature. With using 105 ℃ long life electrolytic capacitors and passing through 100% full load burn-in test, RS-25-48 is able to withstand 300 VAC surge input for 5 seconds. Additionally, 2 outputs are isolated for RID series. Moreover, RS-25-48 provides the complete protection types such as Short circuit, Over load and Over voltage. Considering its high efficiency, long life, high reliability and No load power consumption. Meanwell RS-25-48 is ideal for use in harsh working environments.

Meanwell RS-25-48 Price and Specs 25W Power Supply YCICT

Meanwell RS-25-48 Specifications

Model RS-25-48
Output DC VOLTAGE 48V
RATED CURRENT 0.57A
CURRENT RANGE 0-0.57A
RATED POWER 27.36W
RIPPLE & NOISE (max.)  200mVp-p
VOLTAGE ADJ. RANGE 42-54V
VOLTAGE TOLERANCE ±1%
LINE REGUL ATION ±0.5%
LOAD REGUL ATION ±0.5%
SETUP, RISE TIME 1800ms, 23ms/230VAC 4000ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.) 80ms/230VAC 14ms/115VAC at full load
Input VOLTAGE RANGE 88 ~ 264VAC 125 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage)
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 85%
AC CURRENT (Typ.) 0.7A/115VAC 0.4A/230VAC
INRUSH CURRENT (Typ.) COLD START 45A/230VAC
LEAKAGE CURRENT <2mA / 240VAC
ENVIRONMENT WORKING TEMP. -20 ~ +70'C (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40~ +85C, 10~ 95% RH
TEMP. COEFFICIENT ±0.03%/C (O ~ 50'C)
VIBRATION 0 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along x, Y, Z axes
PROTECTION OVERLOAD 110 ~ 180% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed3.8~4.45V
OVER VOLTAGE 55.2-64.8V
Protection type : Shut off o/p voltage, clamping by zener diode
SAFETY &
EMC
SAFETY STANDARDS UL62368-1, TUV BS EN/EN62368-1 , AS/NZS 62368.1, EAC TP TC 004, Ccc GB4943.1, BSMI CNS14336-1,BIS IS13252(Part1):2010/IEC 60950-1: 2005 approved
WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3,GB9254 class B,GB17625.1, EAC TP TC 020, CNS13438 Class B
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, light industry level, criteria A, EAC TP TC 020
OTHERS MTBF 309.7Khrs min. MIL-HDBK-217F (25)
DIMENSION 78*51*28mm (L*W*H)
PACKING 0.2Kg; 60pcs/13Kg/0.46CUFT

Meanwell RS-25-48 Features

l  3-year warranty

l  Natural air cooling

l  LED power indicator

l  100% full load aging

l  Working temperature up to 70°C

l  Withstand 5G vibration test

l  No-load consumption<0.5W

l  All use 105°C long-life electrolytic capacitors

l  Can withstand 300VAC surge input for 5 seconds

l  High efficiency, long life and high reliability

l  International universal full range AC input

l  Protection type: short circuit/overload/overvoltage

Meanwell RS-25-48 Price and Specs 25W Single Output Switching Power Supply RS-25-3.3/5/12/15/24/48 AC/DC G3 series YCICT

Meanwell RS-25-48 Mechanical Diagram

Meanwell RS-25-48 Price and Specs 25W Single Output Switching Power Supply RS-25-3.3/5/12/15/24/48 AC/DC G3 48v YCICT
