RS-150-3.3
15.88

RS-150-3.3

$15.88

Meanwell 150W Single Output Switching Power Supply with 3.3V30A0-30A99W80mVp-p3.2-3.5V±3.0%±0.5%±2%

- +
Availability:In stock
SKU Meanwell RS-150-3.3
Brand Meanwell
Details

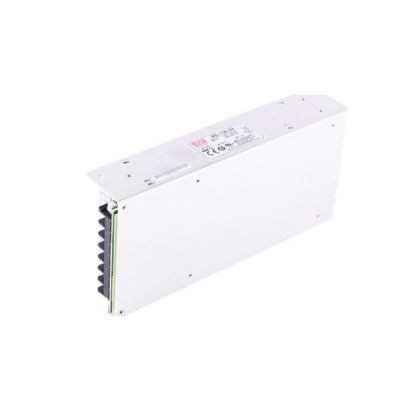

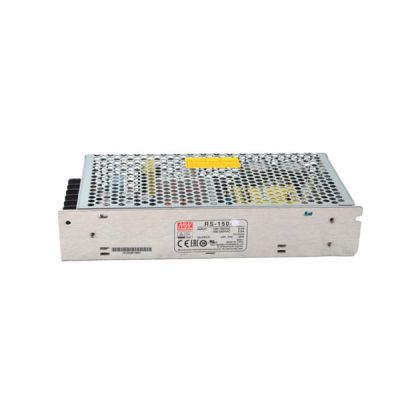

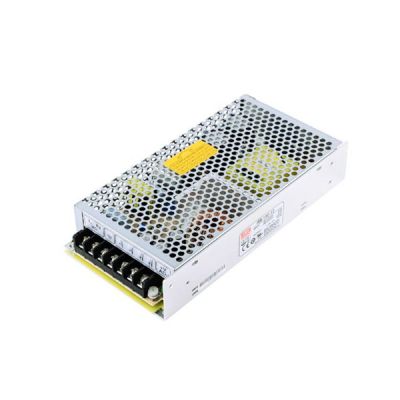

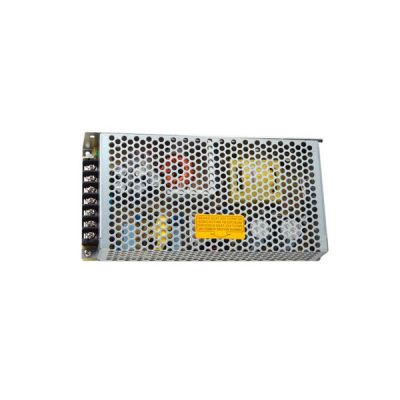

Meanwell RS-150-3.3 is 150W Single Miniature size, non-PFC Output Switching Power Supply with 3.3V30A0-30A99W80mVp-p3.2-3.5V. The model can also withstand 5G vibration and work at 70°C high ambient temperature. With adopting 105 ℃ long life electrolytic capacitors and passing 100% full load burn-in test,RS-150-3.3 could withstand 300VAC surge input for 5 second. 2 outputs are isolated for RID series. What’s more, RS-150-3.3 provides the complete protection modes such as Short circuit, Over load, Over voltage and Over temperature. Thank to the high efficiency, long life and high reliability. Meanwell RS-150-3.3 is fit for use in harsh working conditions.

Meanwell RS-150-3.3 Specifications

Meanwell RS-150-3.3 Specifications

Model RS-150-3.3
Output DC VOLTAGE 3.3V
RATED CURRENT 30A
CURRENT RANGE 0-30A
RATED POWER 99W
RIPPLE & NOISE (max.)  80mVp-p
VOLTAGE ADJ. RANGE 3.2-3.5V
VOLTAGE TOLERANCE ±3.0%
LINE REGUL ATION ±0.5%
LOAD REGUL ATION ±2%
SETUP, RISE TIME 800ms, 20ms/230VAC 1200ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.) 28ms/230VAC 20ms/115VAC at full load
Input VOLTAGE RANGE 88 ~ 132VAC / 176 ~ 264VAC selected by switch 248 ~ 373VDC(Withstand 300VAC surge for 5sec. Without damage)
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 74.00%
AC CURRENT (Typ.) 3A/115VAC 2A/230VAC
INRUSH CURRENT (Typ.) COLD START 40A/230VAC
LEAKAGE CURRENT <2mA / 240VAC
PROTECTION OVERLOAD 110 ~ 150% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 3.8-4.45V
Protection type : Hiccup mode, recovers automatically after fault condition is removed
ENVIRONMENT WORKING TEMP. -25 ~ +70 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY &EMC SAFETY STANDARDS UL62368-1, TUV BS EN/EN62368-1, AS/NZS 62368.1, EAC TP TC 004 approved
WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level, criteria A, EAC TP TC 020
Others MTBF 244KHrs min. MIL-HDBK-217F (25)
DIMENSION 199*98*38mm (L*W*H)
PACKING 0.7Kg; 20pcs/14Kg/0.85CUFT

Meanwell RS-150-3.3 Features

l  3 years warranty

l  Cooling by free air convection

l  LED indicator for power on

l  100% full load burn-in test

l  All using 105℃ long life electrolytic capacitors

l  Withstand 300VAC surge input for 5 second

l  High operating temperature up to 70℃

l  Withstand 5G vibration test

l  Protections: Short circuit/Overload/Over voltage

l  High efficiency, long life and high reliability

Meanwell RS-150-3.3 Features

Meanwell RS-150-3.3 Mechanical Diagram

Meanwell RS-150-3.3 Mechanical Diagram
