RS-15-15
10.29
Details

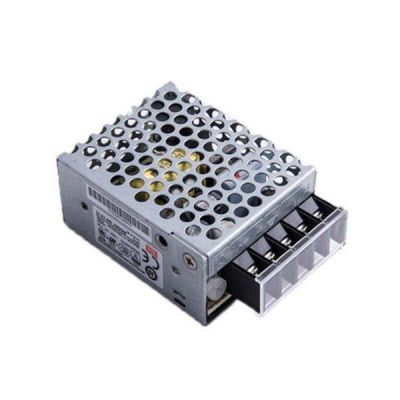

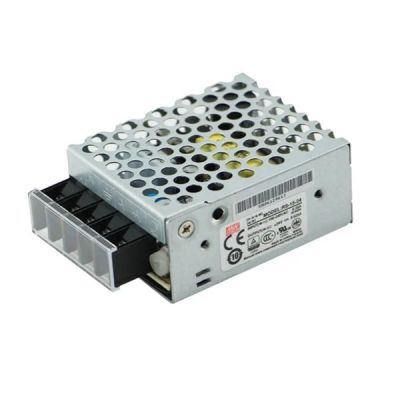

Meanwell RS-15-15 is 15W Single Mini Output Switching Power Supply with 15V1A0-1A15W120mVp-p13.5-16.5. The model is able to withstand 5G vibration and work at 70°C high ambient temperature by free air convection. with adopting 105 ℃ long life electrolytic capacitors and undergoing 100% full load burn-in test, RS-15-15 can withstand 300VAC surge input for 5 seconds. Furthermore, it offers the complete protection types such as Short circuit, Over load, Over voltage and Over temperature. Because of its high efficiency, long life and high reliability. Meanwell RS-15-15 is suitable for use in harsh working conditions.
Meanwell RS-15-15 Specifications
| Model | RS-15-15 | |
| Output | DC VOLTAGE | 15V |
| RATED CURRENT | 1A | |
| CURRENT RANGE | 0-1A | |
| RATED POWER | 15W | |
| RIPPLE & NOISE (max.) | 120mVp-p | |
| VOLTAGE ADJ. RANGE | 13.5-16.5V | |
| VOLTAGE TOLERANCE | ±1% | |
| LINE REGUL ATION | ±0.5% | |
| LOAD REGUL ATION | ±0.5% | |
| SETUP, RISE TIME | 1000ms, 30ms/230VAC 1000ms, 30ms/115VAC at full load | |
| HOLD UP TIME (Typ.) | 70ms/230VAC 12ms/115VAC at full load | |
| Input | VOLTAGE RANGE | 85 ~ 264VAC 120 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 81% | |
| AC CURRENT (Typ.) | 0.35A/115VAC 0.25A/230VAC | |
| INRUSH CURRENT (Typ.) | COLD START 65A/ 230VAC | |
| LEAKAGE CURRENT | <2mA/ 240VAC | |
| ENVIRONMENT | WORKING TEMP. | -20 ~ +70'C (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40~ +85C, 10~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/C (O ~ 50'C) | |
| VIBRATION | 0 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along x, Y, Z axes | |
| PROTECTION | OVERLOAD | Above 105% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed3.8~4.45V | ||
| OVER VOLTAGE | 17.25-20.25V | |
| Protection type : Shut off o/p voltage, clamping by zener diode | ||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |
| OTHERS | MTBF | 1608.8Khrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 62.5*51*28mm (L*W*H) | |
| PACKING | 0.13Kg; 108pcs/15Kg/0.8CUFT | |
Meanwell RS-15-15 Features
l Universal AC input 1 Full range .
l Cooling by free air convection
l LED indicator for power on
l 100% full load burn-in test
l No load power consumption<0. 5W
l All using 105'C long life electrolytic capacitors
l Withstand 300V AC surge input for 5 second
l High operating temperature up to 70'C
l 'Withstand 5G vibration test
l High efficiency, long life and high reliability
l Protections: Short circuit / Overload 1 Over voltage 1 Over temperature
l 3 years warranty
Meanwell RS-15-15 Mechanical Diagram
