RS-15-12
11.48
Details

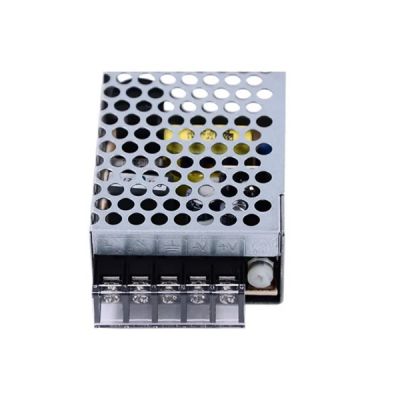

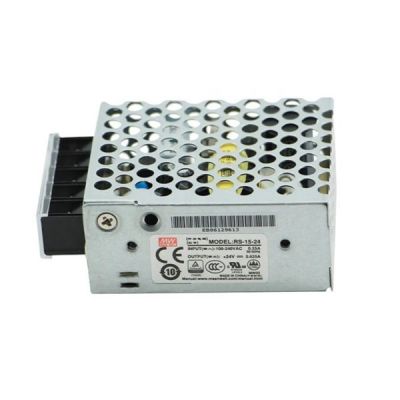

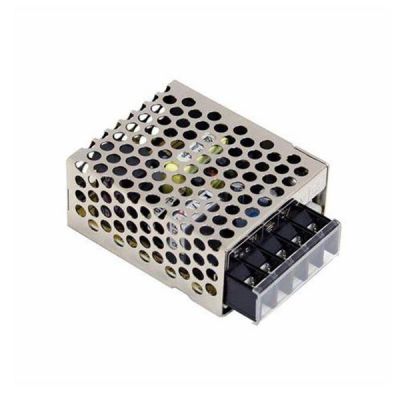

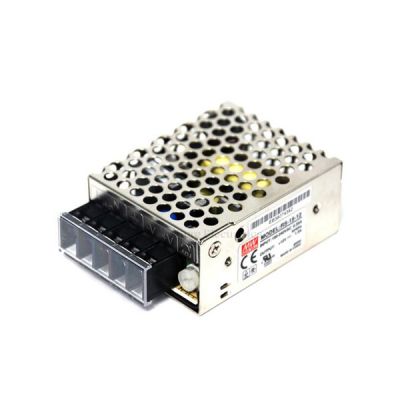

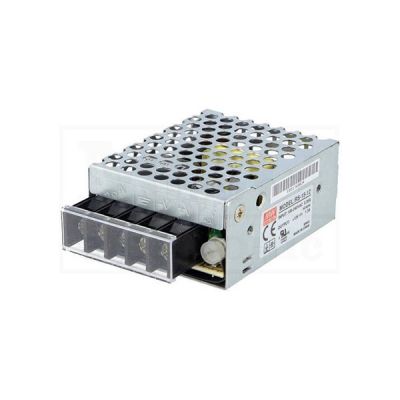

Meanwell RS-15-12 is 15W Single Mini Output Switching Power Supply with 12V1.3A0~ 1.3A15.6W120mVp-p10.8-13.2V. The model could withstand 5G vibration and work at 70°C high ambient temperature by free air convection. with adopting 105 ℃ long life electrolytic capacitors, RS-15-12 is able to withstand 300VAC surge input for 5 seconds. Moreover, it provides the complete protection types like Short circuit, Over load, Over voltage and Over temperature. In light of its high efficiency, long life and high reliability. Meanwell RS-15-12 is suitable for use in harsh working conditions.
Meanwell RS-15-12 Specifications
| Model | RS-15-12 | |
| Output | DC VOLTAGE | 12V |
| RATED CURRENT | 1.3A | |
| CURRENT RANGE | 0~ 1.3A | |
| RATED POWER | 15.6W | |
| RIPPLE & NOISE (max.) | 120mVp-p | |
| VOLTAGE ADJ. RANGE | 10.8-13.2V | |
| VOLTAGE TOLERANCE | ±1% | |
| LINE REGUL ATION | ±0.5% | |
| LOAD REGUL ATION | ±0.5% | |
| SETUP, RISE TIME | 1000ms, 30ms/230VAC 1000ms, 30ms/115VAC at full load | |
| HOLD UP TIME (Typ.) | 70ms/230VAC 12ms/115VAC at full load | |
| Input | VOLTAGE RANGE | 85 ~ 264VAC 120 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 81% | |
| AC CURRENT (Typ.) | 0.35A/115VAC 0.25A/230VAC | |
| INRUSH CURRENT (Typ.) | COLD START 65A/ 230VAC | |
| LEAKAGE CURRENT | <2mA/ 240VAC | |
| ENVIRONMENT | WORKING TEMP. | -20 ~ +70'C (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40~ +85C, 10~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/C (O ~ 50'C) | |
| VIBRATION | 0 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along x, Y, Z axes | |
| PROTECTION | OVERLOAD | Above 105% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed3.8~4.45V | ||
| OVER VOLTAGE | 13.8-16.2 | |
| Protection type : Shut off o/p voltage, clamping by zener diode | ||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |
| OTHERS | MTBF | 1608.8Khrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 62.5*51*28mm (L*W*H) | |
| PACKING | 0.13Kg; 108pcs/15Kg/0.8CUFT | |
Meanwell RS-15-12 Features
l 3 years warranty
l Universal AC input/Full range
l Cooling by free air convection
l LED indicator for power on
l 100% full load burn-in test
l Withstand 5G vibration test
l No load power consumption<0.5W
l All using 105 ℃ long life electrolytic capacitors
l Withstand 300VAC surge input for 5 second
l High operating temperature up to 70 ℃
l High efficiency, long life and high reliability
l Protections: Short circuit/Over load/Over voltage/Over temperature
Meanwell RS-15-12 Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
