RQ-65B
16.14

RQ-65B

$16.14

Meanwell 65W Quad Output Switching Power Supply CH1CH2CH3CH45V12V-5V-12V6A2A0.5A0.5A0-8A0-3A0-1A0-1A62.5W

- +
Availability:In stock
SKU Meanwell RQ-65B
Brand Meanwell
Details

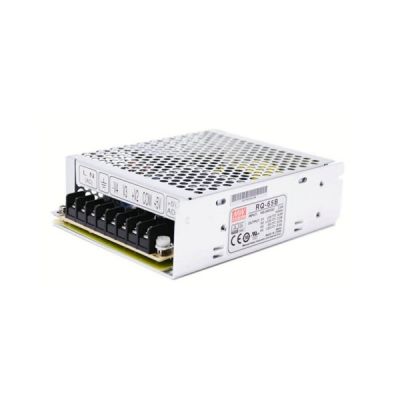

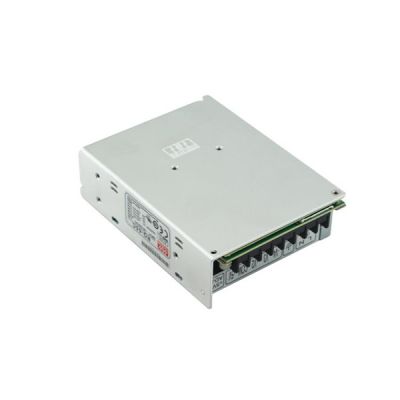

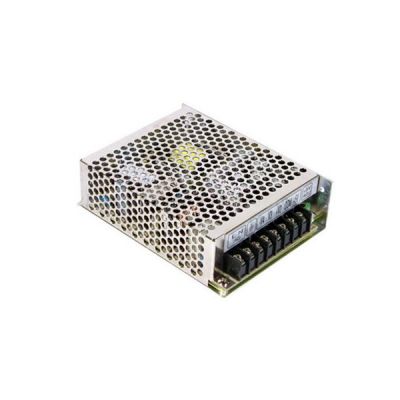

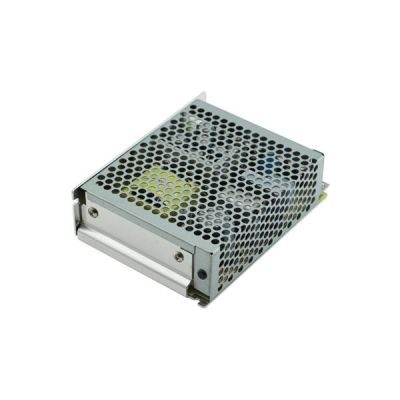

Meanwell RQ-65B is 65W Quad Output Mini size, non-PFC Switching Power Supply (CH1CH2CH3CH45V12V-5V-12V6A2A0.5A0.5A0-8A0-3A0-1A0-1A62.5W)This power supply is able to withstand 300VAC surge input for 5 seconds and 5G vibration test as well. By using 105℃ long life electrolytic capacitors and cooling by free air convection. RQ-65B can operate at temperature up to 70℃and 100% full load burn-in test. Considering its high efficiency, long life and high reliability, Meanwell RQ-65B is suitable to use in critical conditions.

Meanwell RQ-65B Specifications

Meanwell RQ-65B Specifications

Model RQ-65B
Output OUTPUT NUMBER CH1 CH2 CH3 CH4
DC VOLTAGE 5V 12V -5V -12V
RATED CURRENT 6A 2A 0.5A 0.5A
CURRENT RANGE 0-8A 0-3A 0-1A 0-1A
RATED POWER 62.5W
RIPPLE & NOISE (max.) mVp-p 80 120 80 80
VOLTAGE ADJ. RANGE CH1: 4.75-5.5V
VOLTAGE TOLERANCE ±2% +9,-5% ±5% ±5%
LINE REGUL ATION ±0.5% ±1.5% ±0.5% ±0.5%
LOAD REGUL ATION ±0.5% ±3% ±1% ±1%
SETUP, RISE TIME 500ms, 20ms/230VAC 1200ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.) 60ms/230VAC 14ms/115VAC at full load
Input VOLTAGE RANGE 88 ~ 264VAC 125 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage)
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 75.00%
AC CURRENT (Typ.) 2A/115VAC 1.2A/230VAC
INRUSH CURRENT (Typ.) COLD START 50A/230VAC
LEAKAGE CURRENT <2mA / 240VAC
PROTECTION OVERLOAD 110 ~ 150% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
UL62368-1,
OVER VOLTAGE CH1: 5.75 ~ 6.75V
Protection type : Hiccup mode, recovers automatically after fault condition is removed
ENVIRONMENT WORKING TEMP. -25 ~ +70 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)on CH1 output
VIBRATION 10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY &EMC SAFETY STANDARDS UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level, criteria A, EAC TP TC
Others MTBF 245.5Khrs min. MIL-HDBK-217F (25)
DIMENSION 129*98*38mm (L*W*H)
PACKING 0.44Kg; 30pcs/13.2Kg/0.72CUFT

Meanwell RQ-65B Features

l  3 years warranty

l  Universal AC input / Full range

l  Cooling by free air convection

l  LED indicator for power on

l  100% full load burn-in test

l  Withstand 300V AC surge input for 5 second

l  High operating temperature up to 70℃

l  Withstand 5G vibration test

l  High efficiency, long life and high reliability

l  Protections: Short circuit / Overload / Over voltage

l  All using 105℃ long life electrolytic capacitors

Meanwell RQ-65B Features

Meanwell RQ-65B Mechanical Diagram

Meanwell RQ-65B Mechanical Diagram
