RPS-30-3.3
10.14

RPS-30-3.3

$10.14

Meanwell 30W Reliable Green Medical Power Supply with 3.3V6A0-6.6A19.8W21.8W80mVp-p±2.0%±0.5%±1.0%

- +
Availability:In stock
SKU Meanwell RPS-30-3.3
Brand Meanwell
Details

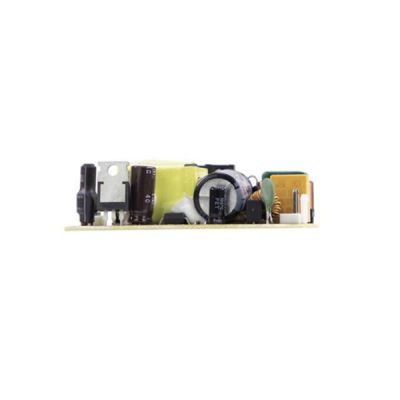

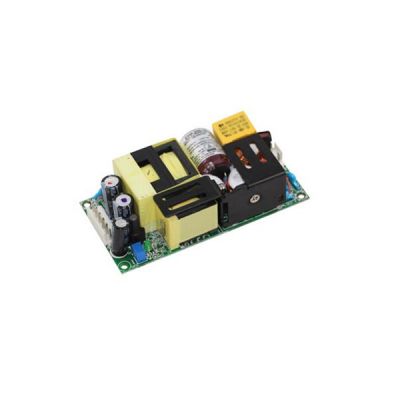

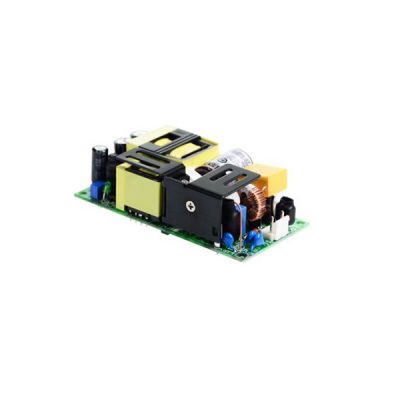

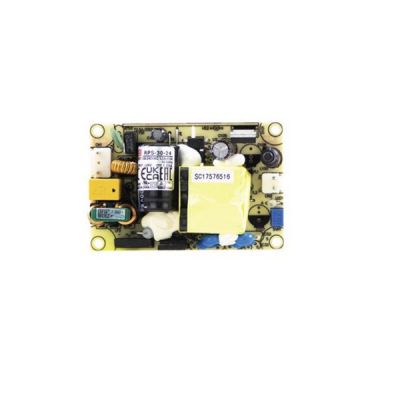

Meanwell RPS-30-3.3 is a 30W highly reliable green PCB type medical power supply with 3.3V6A0-6.6A19.8W21.8W80mVp-p. The product is designed with high power density on 3*2 footprint. At the same time, It accepts 80~264VAC input, and features high working efficiency up to 92%, extremely low no load power consumption down below 0.1W and operating altitude up to 4000 meters, so it is able to be uѕеd fоr СlаѕѕⅡ(nо FG) ѕуѕtеm d. Тhе ехtrеmеlу lоw lеаkаgе сurrеnt іѕ less than 80 uA, and conforms to international medical regulations (2*MOPP) and EMC BS EN/EN55011. Due to its high lifespan, outstanding reliability, excellent quality, Meanwell RSP-30-3.3 is a very suitable solution for all kinds of BF rated patient contact medical system equipment.

Meanwell RPS-30-3.3 Encoding

Meanwell RPS-30-3.3 Encoding

RPS Series Name
30 Rated Wattage
3.3 Output Voltage

Meanwell RPS-30-3.3 Specifications

Model RPS-30-3.3
OUTPUT DC VOLTAGE 3.3V
RATED CURRENT 6A
CURRENT RANGE 0-6.6A
RATED POWER 19.8W
PEAK LOAD(10sec.) 21.8W
RIPPLE & NOISE (max.) 80mVp-p
VOLTAGE TOL ERANCE  ±2.0%
LINE REGULATION ±0.5%
LOAD REGUL .ATION ±1.0%
SETUP, RISE TIME 200ms, 30ms / 230VAC 200ms, 30ms / 115VAC at full load
HOLD UP TIME (Typ.) 30ms / 230VAC 16ms / 115VAC at full load
INPUT VOLTAGE RANGE 80 ~ 264VAC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 80.00%
AC CURRENT (Typ.) 1A / 115VAC 0.5A / 230VAC
INRUSH CURRENT(Typ.) СOLD STAR 30A/115VAC 60A/230VAC
LEAKAGE CURRENT Touch current< 80 A/264VAC
PROTECTION OVERL OAD 115 ~ 150% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 3.9-5V
Protection type : Shut down o/p voltage, re-power on to recove
ENVIRONMENT WORKING TEMP. -30 ~ +70 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03%/(0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
OPERATING ALTITUDE 4000 meters
SAFETY & EMC SAFETY STANDARDS Note.6,9 IEC60601-1, TUV BS EN/EN60601-1, EAC TP TC 004, UL ANSI / AAMI ES60601-1 (3.1 version), CAN/CSA-C22.2 No. 60601-1:14 - Edition 3 approved; Design refer to BS EN/EN60335-1
ISOLATION LEVEL Primary-Secondary: 2xMOPP
WITHSTAND VOLTAGE I/P-O/P:4KVAC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
EMC IMMUNITY BS EN/EN60601-1-2
OTHERS MTBF 3550.0K hrs min. Telcordia SR-332 (Bellcore) ; 628.7K hrs min. MIL-HDBK-217F (25)
DIMENSION 76.2*50.8*24mm or 3" * 2" *0.945" inch
PACKING 0.09Kg; 120pcs/11.8Kg/0.94CUFT

Meanwell RPS-30-3.3 Features

l  3"x2" compact size

l  Cooling by free air convection

l  EMI class B for classⅡconfiguration

l  No load power consumption<O.1W

l  Extremely low leakage current

l  Protections: Short circuit/Overload/Over voltage

l  Lifetime>105K hours

l  Operating altitude up to 4000 meters

l  3 years warranty

l  Suitable for BF application with appropriate system consideration

l  Medical safety approved (2 X MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1

Meanwell RPS-30-3.3 Features

Meanwell RPS-30-3.3 Applications

l  Oral irrigator

l  Sleep apnea devices

l  Hemodialysis machine

l  Medical computer monitors

Meanwell RPS-30-3.3 Applications

Meanwell RPS-30-3.3 Mechanical Diagram

Meanwell RPS-30 Series Mechanical DiagramMeanwell RPS-30 Series Mechanical Diagram
