RPD-65C
15.02

RPD-65C

$15.02

Meanwell 65W Dual Output Switching Power Supply with CH1 CH212V 5V4.5A1.2A0-5.8A0-1.5A7.5ARated Load60W120mVp-p50mVp-pCH1:11.4 ~ 12.8V±2.0%±5.0%±1.0%±1.0%±2.0%±5.0%

- +
Availability:In stock
SKU Meanwell RPD-65C
Brand Meanwell
Details

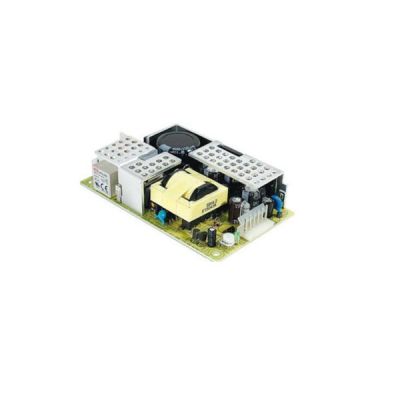

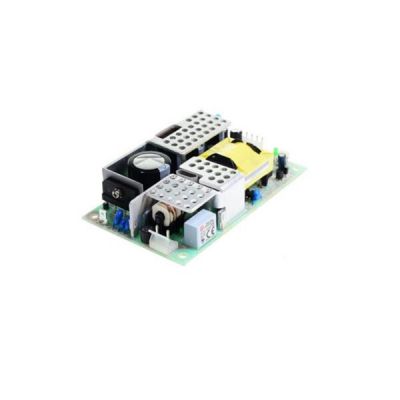

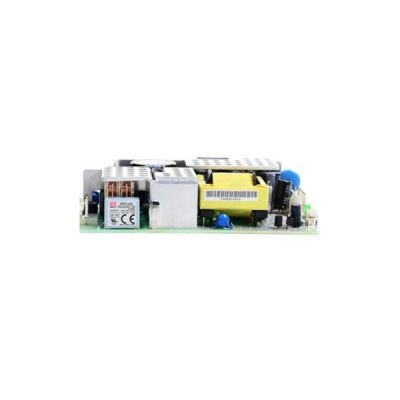

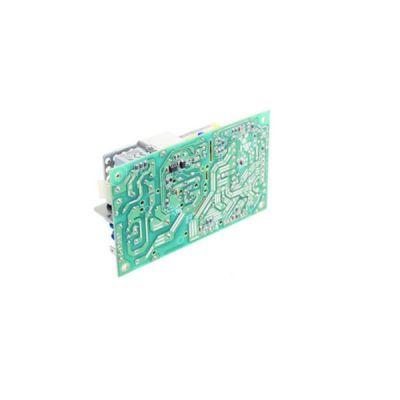

Meanwell RPD-65C is 65W Dual Output Switching Power Supply with CH1CH212V 5V4.5A1.2A0-5.8A0-1.5A7.5ARated Load60W120mVp-p50mVp-pCH1:11.4 ~ 12.8V. The product highlights with Universal AC input/Full range and Fixed switching frequency at 65KHz. At the same time, the working efficiency reaches up to 81% and operate from -20 ℃through 60 ℃ under free air convection. In addition, RPD-65C provides the various protections types such as Short circuit, Overload and Over voltage. As the item has extremely low leakage current down below 1mA, 100% full load burn-in test and 12V or 24V high peak output current capability, this make it  able to meet the international safety regulations such as UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004. Due to its low cost, high efficiency and high reliability, Meanwell RPD-65C is a high price-to-performance power supply solution for various industrial applications in harsh working environment.

Meanwell RPD-65C Specifications

Meanwell RPD-65C Specifications

Model RPD-65C
OUTPUT OUTPUT NUMBER CH1 CH2
DC VOLTAGE 12V 5V
RATED CURRENT 4.5A 1.2A
CURRENT RANGE 0-5.8A 0-1.5A
PEAK LOAD 7.5A Rated Load
RATED POWER 60W
OUTPUT POWER (max.) Rated output power for convection; 77.1W with 18CFM min. forced air
RIPPLE & NOISE (max.) 120mVp-p 50mVp-p
VOLTAGE ADJ. RANGE CH1:11.4 ~ 12.8V
VOLTAGE TOL ERANCE  ±2.0% ±5.0%
LINE REGULATION ±1.0% ±1.0%
LOAD REGUL .ATION ±2.0% ±5.0%
SETUP, RISE TIME 800ms, 20ms at full load
HOLD UP TIME (Typ.) 20ms at full load
INPUT VOLTAGE RANGE 90 ~ 264VAC 127 ~370VDC
FREQUENCY RANGE 47 ~ 440Hz
EFFICIENCY (Typ.) 79.00%
AC CURRENT (Typ.) 1.5A/115VAC 0.9A/230VAC
INRUSH CURRENT(Typ.) COLD START 25A/115VAC 50A/230VAC
LEAKAGE CURRENT <1mA
PROTECTION OVERL OAD 90 ~ 125W output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed.
OVER VOLTAGE CH1:13.8 ~ 16.2V
Protection type : Hiccup mode, recovers automatically after fault condition is removed
ENVIRONMENT WORKING TEMP. -20 ~ +60(Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.04%/(0 ~ 50) on +5V output
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS  UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMS IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, light industry level, criteria A, EAC TP TC 020
OTHERS MTBF 288.1K hrs min. MIL-HDBK-217F (25)
DIMENSION 127*76*29mm (L*W*H)
PACKING 0.24Kg; 63pcs/16Kg/1.28CUFT

Meanwell RPD-65C Features

l  2 years warranty

l  100% full load burn-in test

l  Fixed switching frequency at 65KHz

l  Universal AC input/Full range

l  12V or 24V high peak output current capability

l  Low leakage current<1mA

l  Protections: Short circuit/Overload/Over voltage

l  60W free air convection, 7 7.1 W with 1 8 CFM forced air

Meanwell RPD-65C Features

Meanwell RPD-65C Mechanical Diagram

Meanwell RPD-65C Mechanical DiagramMeanwell RPD-65C Mechanical Diagram
