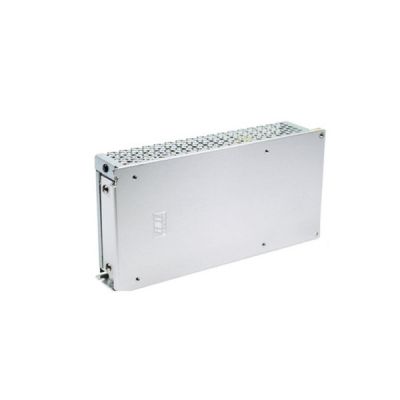

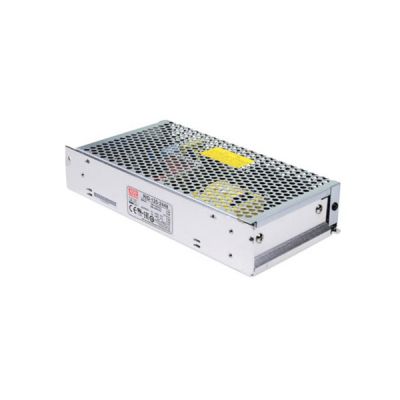

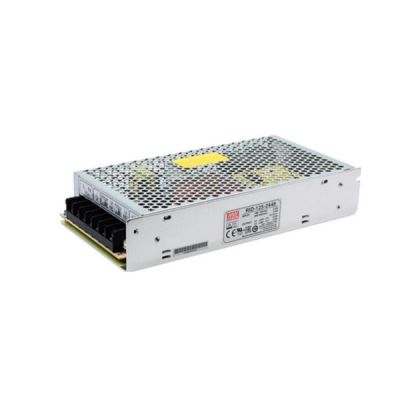

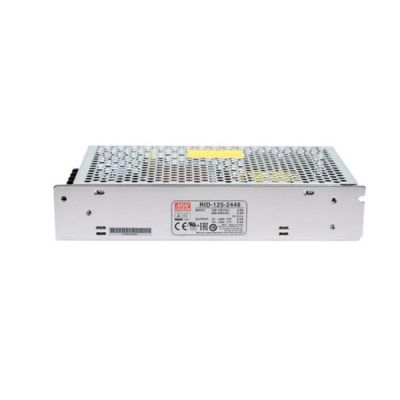

Meanwell 125W Dual Output Switching Power Supply CH124V2A0-4ACH248V2A0-2.5A144W

- +
Availability:In stock
SKU Meanwell RID-125-2448
Brand Meanwell
Details

Meanwell RID-125-2448 is 125W Dual Output Switching Power Supply with CH124V2A0-4ACH248V2A0-2.5A144W.This power supply uses 105℃long life electrolytic capacitors, and withstands 300V AC surge input for 5 seconds, and at the same time, also 5G vibration test and 100% full load burn-in test. RID-125-2448 can work at temperature up to 70℃. Considering its high efficiency, long life and high reliability. Meanwell RID-125-2448 is suitable for use in critical working environments

Meanwell RID-125-2448  Specificatioons

Meanwell RID-125-2448  Specificatioons

Model RID-125-2448
Output OUTPUT NUMBER CH1 CH2
DC VOLTAGE 24V 48V
RATED CURRENT 2A 2A
CURRENT RANGE 0-4A 0-2.5A
RATED POWER 144W
RIPPLE & NOISE (max.)  200mVp-p 240mVp-p
VOLTAGE ADJ. RANGE CH1: 22.8-26.4V
VOLTAGE TOLERANCE ±1.0% ±6.0%
LINE REGUL ATION ±0.5% ±1%
LOAD REGUL ATION ±1% ±5%
SETUP, RISE TIME 500ms, 20ms/230VAC 1200ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.) 36ms/230VAC 30ms/115VAC at full load
Input VOLTAGE RANGE 88 ~ 132VAC / 176 ~ 264VAC selected by switch 248 ~ 373VDC(Withstand 300VAC surge for 5sec. Without damage
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 86%
AC CURRENT (Typ.) 3A/115VAC 2A/230VAC
INRUSH CURRENT (Typ.) COLD START 50A/230VAC
LEAKAGE CURRENT <2mA / 240VAC
PROTECTION OVERLOAD 110 ~ 150% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
UL62368-1,
OVER VOLTAGE CH1: 27.6 ~ 32.4V
Protection type : Hiccup mode, recovers automatically after fault condition is removed
ENVIRONMENT WORKING TEMP. -20 ~ +70 (Refer to "Derating Curve
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)on CH1 output
VIBRATION 10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY &EMC SAFETY STANDARDS UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level, criteria A, EAC TP TC 020
Others MTBF 218.2Khrs min. MIL-HDBK-217F (25)
DIMENSION 199*98*38mm (L*W*H)
PACKING 0.7Kg; 20pcs/15Kg/0.85CUFT

Meanwell RID-125-2448 Features

l  High reliability

l  3 years warranty

l  LED indicator for power on

l  100% full load burn-in test

l  Withstand 5G vibration test

l  AC input range selectable by switch

l  Isolated output & GND for CH1 ,CH2

l  Withstand 300VAC surge input for 5 seconds

l  All using 105`C long life electrolytic capacitors

l  Protections: Short circuit / Overload / Over voltage

Meanwell RID-125-2448 Features

Meanwell RID-125-2448 Mechanical Diagram

Meanwell RID-125-2448 Mechanical Diagram
