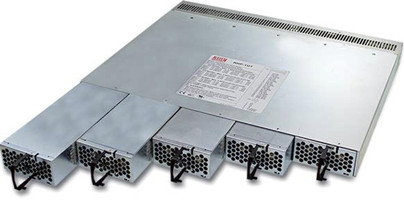

RHP-8K1U
368.32
Details

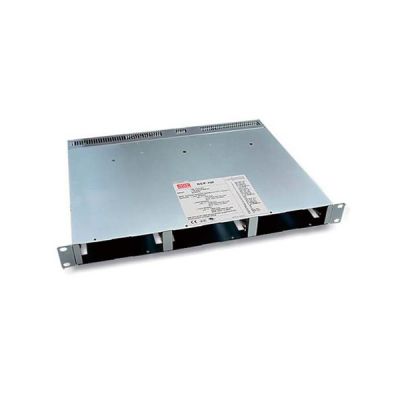

Meanwell RHP-1U rack power system and RHB-1U rack charger system are the complete solutions for the power distribution utilizing the rack configuration with the 1U low profile. Starting with a single unit of 1600W. RCP-1600 is the front end rectifier (or, power supply) and RCB-1 600 is the charger module. Due to the design of the active parallel function, the rectifier or charger can provide up to 8000W of power when paired with a single-layer 19 inch rack-mounted chassis RHP-1U. When the rectifier is stacked with three layers, it can provide up to 24000W of power.
Meanwell RHP-8K1U Series Model Encoding
| Rack Shelf | |
| RHP | Series Name |
| 1U | Profile of the system |
| I | I : AC Inlet ( IEC320-C14) |
| T: Terminal block | |
| A | Rack Shelf for 1600W unit |
| *** | Communication protocol option |
| Whole System | |
| RHP | Series Name RHP: Power Supply System |
| Series Name RHB: Charger System | |
| 8K | 8K: Maximum wattage with fully populated shelf |
| 1U: Profile of the system | |
| I | I : AC Inlet ( IEC320-C14) |
| T: Terminal block | |
| 12 | Output Voltage |
| *** | Communication protocol option |
| Blank | PMBuc Protocol In stock |
| CAN | CANBus Protocol By Request |
Meanwell RHP-8K1U Series Model Specifications

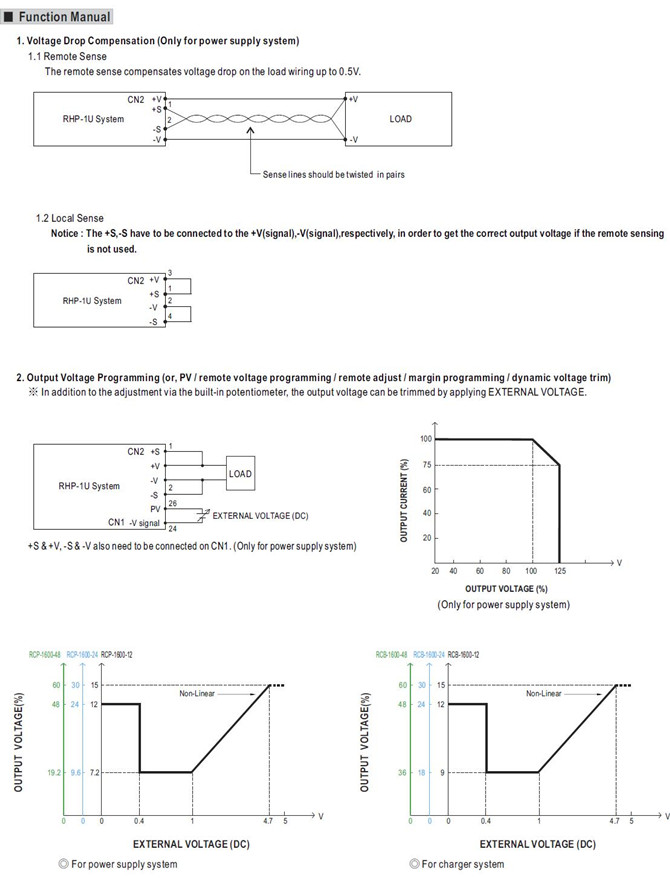

| Model | RHP-8K1U-12 | RHP-8K1U-24 | RHP-8K1U-48 | |
| Output | Rectifier | RCP-1600-12 | RCP-1600-24 | RCP-1600-48 |
| Rack Shelf | RHP-1UI-A or RHP-1UT-A | |||
| Output Voltage | 12V | 24V | 48V | |
| Max Output Current | 625A | 335A | 167.5A | |
| Max Output Power | 7500W | 8040W | 8040W | |
| Input | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC | ||
| FREQUENCY RANGE | 47 ~ 63Hz | |||
| AC CURRENT (Typ.)PER MODULE | 14A/115VAC 8A/230VAC | 15A/115VAC 8.5A/230VAC | 15A/115VAC 8.5A/230VAC | |
| LEAKAGE CURR ENT | <1.5mA / 230VAC | |||
| FUNCTION | OUTPUT VOLTAGE PROGRAMMABLE(PV) | Adjustment of output voltage is allowable to 40 ~ 125% of nominal output voltage(60~125% for 12V). | ||
| CONSTANT CURRENT LEVEL PROGRAMMABLE(PC) | Adjustment of constant current level is allowable to 20 ~ 100% of rated current | |||
| REMOTE ON-OFF CONTROL | By electrical signal or dry contact ON:short OFF:open | |||
| REMOTE SENSE | Compensate voltage drop on the load wiring up to 0.5V | |||
| AUXILIARY POWER | 5V @ 0.3A, 12V @ 0.8A | |||
| ALARM SIGNAL | Isolated TTL signal output for T-Alarm, AC-OK and DC-OK | |||
| ENVIRONMENT | WORKING TEMP | -30 ~ +70℃(Refer to "Derating Curve") | ||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |||
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 50℃) | |||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | |||
| SAFETY &EMC | SAFETY STANDARDS | UL62368-1, CAN/CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved | ||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC (0.5KVAC for 12V) | |||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||
| EMC EMISSION | Parameter | Standard | Test Level | |
| Conducted | BS EN/EN55032 (CISPR32) | Class B | ||
| Radiated | BS EN/EN55032 (CISPR32) | Class A | ||
| Harmonic Current | BS EN/EN61000-3-2 | ---- | ||
| Voltage Flicker | BS EN/EN61000-3-3 | ---- | ||
| EMC IMMUNITY | BS EN/EN55024, BS EN/EN61000-6-2 | |||
| Parameter | Standard | Test Level | ||
| ESD | BS EN/EN61000-4-2 | Level 3, 8KV air ; Level 2, 4KV contact | ||
| Radiated | BS EN/EN61000-4-3 | Level 3 | ||
| EFT / Burst | BS EN/EN61000-4-4 | Level 3 | ||
| Surge | BS EN/EN61000-4-5 | Level 4, 2KV/Line-Line 4KV/Line-Earth | ||
| Conducted | BS EN/EN61000-4-6 | Level 3 | ||
| Magnetic Field | BS EN/EN61000-4-8 | Level 4 | ||
| Voltage Dips and Interruptions | BS EN/EN61000-4-11 | >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods |
||
| DIMENSION | Rack 365*482.6*44(L*W*H, with mounting bracket) ; 365*440*44(L*W*H, without mounting bracket | |||
| PACKING | 5.5Kg; 3pcs/17.5Kg/2.11CUFT | |||
Meanwell RHP-8K1U Series Features
l Universal AC input/ Full range
l 1U profile 19" rack shelf, fitting five 1 600W modules up to 8000W with active current sharing
l Output voltage and current programmable
l Support hot swap (hot plug)
l Built-in PMBus protocol (Optional CANBus protocol)
l 5 years warranty
Meanwell RHP-8K1U Series Applications
l Distributed power architecture system
l Wireless/telecommunication solution
l Electric vehicle or marine charger station
l DC UPS or emergency backup
l Wastewater treatment system
l Electrolysis system

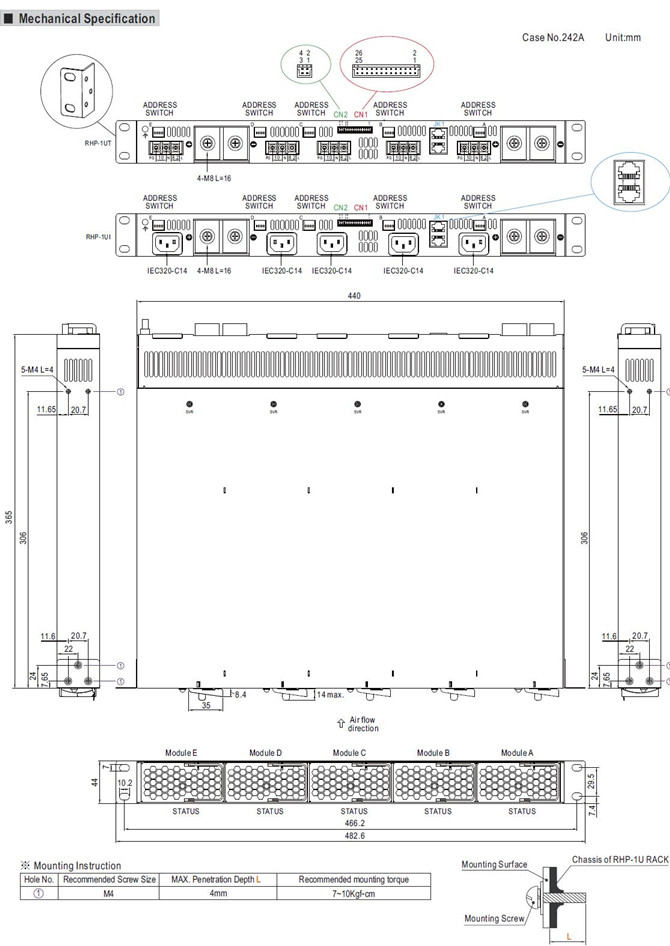

Meanwell RHP-8K1U Series Mechanical Diagram
More Information
