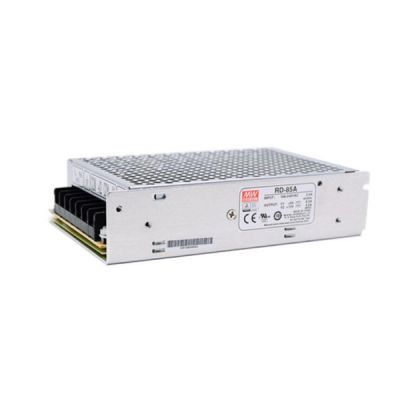

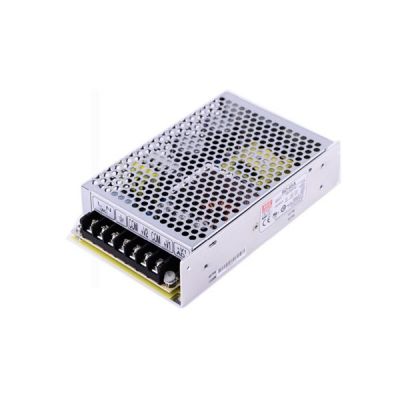

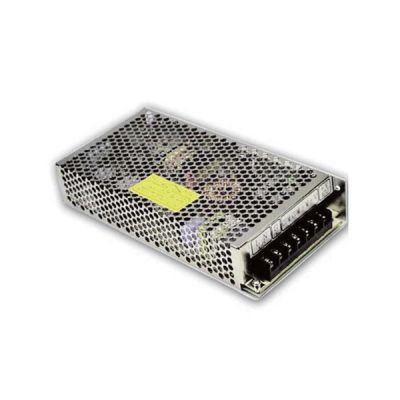

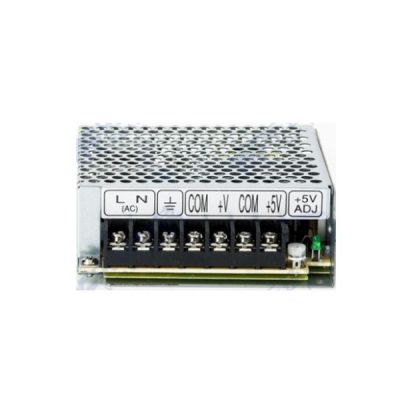

Meanwell 85W Dual Output Switching Power Supply

- +
Availability:In stock
SKU Meanwell RD-85A
Brand Meanwell
Details

Meanwell RD-85A is 85W Dual Output Miniature size, non-PFC Switching Power Supply. The model can withstand 300V AC surge input for 5 second and 5G vibration test. RD-85A adopts105℃long life electrolytic capacitors and can work at 70°C high ambient temperature .2 outputs are isolated for RID series. Considering its high efficiency, long life and high reliability, RD-85A is fit for critical applications.

Meanwell RD-85A Specifications

Meanwell RD-85A Specifications

Model RD-85A
Output OUTPUT NUMBER CH1 CH2
DC VOLTAGE 5V 12V
RATED CURRENT 8A 4A
CURRENT RANGE 0-10A 0-5A
RATED POWER 88W
RIPPLE & NOISE (max.)  80mVp-p 120mVp-p
VOLTAGE ADJ. RANGE CH1: 4.75-5.5V
VOLTAGE TOLERANCE ±2.0% ±5%
LINE REGUL ATION ±0.5% ±1%
LOAD REGUL ATION ±1% ±3%
SETUP, RISE TIME 500ms, 20ms/230VAC 1200ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.) 100ms/230VAC 18ms/115VAC at full load
Input VOLTAGE RANGE 88 ~ 264VAC 125 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage)
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 78.00%
AC CURRENT (Typ.) 2.5A/115VAC 1.5A/230VAC
INRUSH CURRENT (Typ.) COLD START 50A/230VAC
LEAKAGE CURRENT <2mA / 240VAC
PROTECTION OVERLOAD 110 ~ 150% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
UL62368-1,
OVER VOLTAGE CH1: 5.75 ~ 6.75V
Protection type : Hiccup mode, recovers automatically after fault condition is removed
ENVIRONMENT WORKING TEMP. -25 ~ +70 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)on CH1 output
VIBRATION 10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY &EMC SAFETY STANDARDS UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level, criteria A, EAC TP TC 020
Others MTBF 239.4Khrs min. MIL-HDBK-217F (25)
DIMENSION 159*97*38mm (L*W*H)
PACKING 0.6Kg; 24pcs/15.4Kg/0.83CUFT

Meanwell RD-85A Features

l  3 years warranty

l  Withstand 5G vibration test

l  Universal AC input/ Full range

l  Cooling by free air convection

l  L ED indicator for power on

l  1 00% full load burn-in test

l  High operating temperature up to 70C

l  High efficiency, long life and high reliability

l  All using 105C long life electrolytic capacitors

l  Withstand 300V AC surge input for 5 second

l  Protections: Short circuit/Overload /Over voltage

Meanwell RD-85A Features

Meanwell RD-85A Mechanical Diagram
