QP-150D
83.25
Details

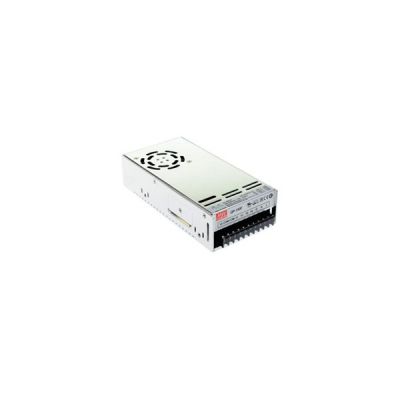

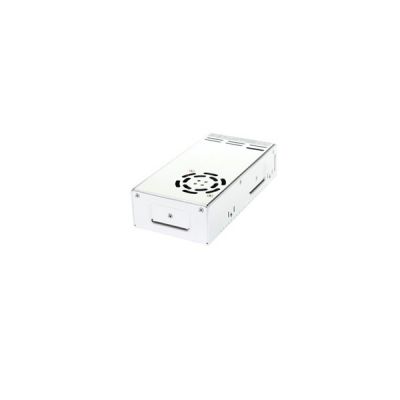

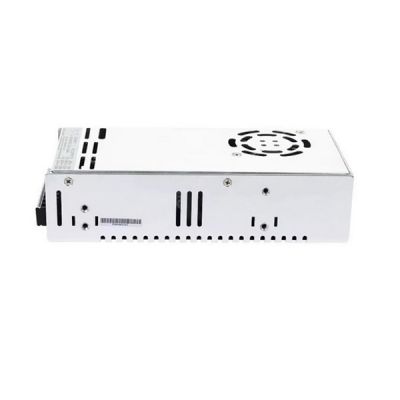

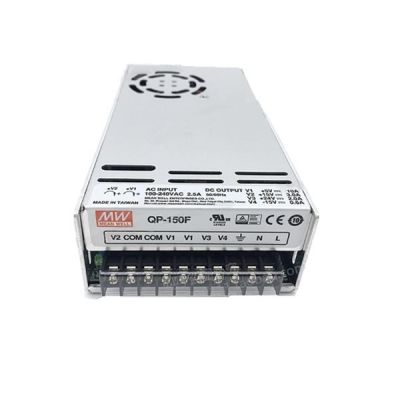

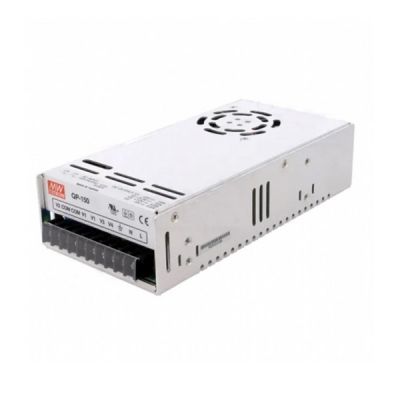

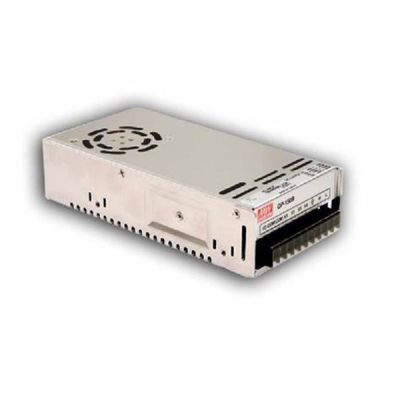

Meanwell QP-150D is AC/DC Enclosed Switching Power Supply. It is with Built-in active PFC function, and benefit to increase energy efficiency and reduce harmonic interference. Furthermore, the full functions like Short circuit, Overload and Over voltage makes QP-150D as a high-performance power supply solution for various industrial areas.
Meanwell QP-150D Specifications
| Model | QP-150D | ||||
| Output | OUTPUT NUMBER | CH1 | CH2 | CH3 | CH4 |
| DC VOLTAGE | 5V | 15V | 24V | -12V | |
| RATED CURRENT | 10A | 4A | 2A | 0.6A | |
| CURRENT RANGE | 3-15A | 0-5A | 0.4-3A | 0-1A | |
| RATED POWER | 153.2W | ||||
| RIPPLE & NOISE (max.) mVp-p | 120 | 150 | 200 | 150 | |
| VOLTAGE ADJ. RANGE | CH1: 4.75 ~ 5.5V | CH2: 11.4-13.2V | |||
| VOLTAGE TOLERANCE | ±3% | ±3% | ±6% | ±5% | |
| LINE REGULATION | ±1% | ±1% | ±2% | ±1% | |
| LOAD REGUL ATION | ±2% | ±2% | ±6% | ±2% | |
| SETUP, RISE TIME | 800ms, 50ms/230VAC 1800ms, 50ms/115VAC at full load | ||||
| HOLD UP TIME (Typ.) | 24ms/230VAC 24ms/115VAC at full load | ||||
| Input | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC | |||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||
| POWER FACTOR | PF>0.95/230VAC PF>0.98/115VAC at full load | ||||
| EFFICIENCY (Typ.) | 78% | ||||
| AC CURRENT (Typ.) | 2.5A/115VAC 1.2A/230VAC | ||||
| INRUSH CURRENT (Typ.) | COLD START<=40A/230V | ||||
| LEAKAGE CURRENT | <3.5mA / 240VAC | ||||
| PROTECTION | OVERLOAD | 105 ~ 150% rated output power | |||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||||
| OVER VOLTAGE | CH1:5.75 ~ 6.75V | CH2:13.8 ~ 16.2V | |||
| Shut down o/p voltage, recovers automatically after temperature goes down | |||||
| OVER TEMPERATURE(OPTION | Shut down o/p voltage, recovers automatically after temperature goes down | ||||
| ENVIRONMENT | WORKING TEMP. | -10 ~ +60℃ (Refer to "Derating Curve") | |||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||
| STORAGE TEMP., HUMIDITY | -20 ~ +85℃, 10 ~ 95% RH non-condensing | ||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0~50℃) | ||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | ||||
| SAFETY &EMC | SAFETY STANDARDS | UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved | |||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | ||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||||
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020 | ||||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, light industry level, criteria A, EAC TP TC 020 | ||||
| Others | MTBF | 141.5K hrs min. MIL-HDBK-217F (25℃) | |||
| DIMENSION | 199*99*50mm (L*W*H) | ||||
| PACKING | 0.93Kg; 20pcs/19.6Kg/1.21CUFT | ||||
Meanwell QP-150D Features
l 3 years warranty
l Universal AC input/ Full range
l Forced air cooling by built-in DC fan
l Fixed switching frequency at 100KHz
l Built-in active PFC function, PF>0.95
l Protections: Short circuit/Overload/Over voltage
Meanwell QP-150D Mechanical Diagram
