QP-150-3C
82.49

QP-150-3C

$82.49

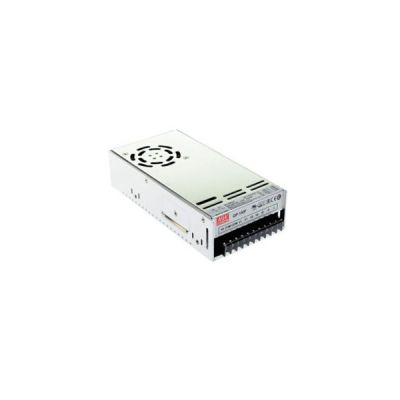

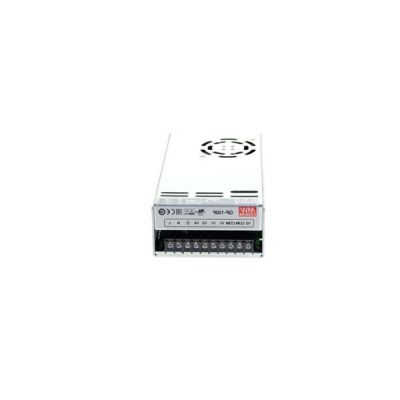

Meanwell 150W Quad Output Power Supply with PFC Function

- +
Availability:In stock
SKU Meanwell QP-150-3C
Brand Meanwell
Details

Meanwell QP-150-3C is AC/DC Enclosed Switching Power Supply. The model is with Built-in active PFC function, and it benefits to improve energy efficiency and reduce harmonic interference. Besides, the complete functions like Short circuit, Overload and Over voltage makes it a high-performance power supply solution for various industrial fields.

Meanwell QP-150-3C Specifications

Meanwell QP-150-3C Specifications

Model QP-150-3C
Output OUTPUT NUMBER CH1 CH2 CH3 CH4
DC VOLTAGE 5V 15V 24V -15V
RATED CURRENT 10A 3A 2A 0.6A
CURRENT RANGE 3-15A 0-5A 0.4-3A 0-1A
RATED POWER 152W
RIPPLE & NOISE (max.) mVp-p 120 150 200 150
VOLTAGE ADJ. RANGE CH1: 4.75 ~ 5.5V CH2: 3.14 ~ 3.63V
VOLTAGE TOLERANCE ±3% ±3% ±6% ±5%
LINE REGULATION ±1% ±1% ±2% ±1%
LOAD REGUL ATION ±2% ±2% ±6% ±2%
SETUP, RISE TIME 800ms, 50ms/230VAC 1800ms, 50ms/115VAC at full load
HOLD UP TIME (Typ.) 24ms/230VAC 24ms/115VAC at full load
Input VOLTAGE RANGE 90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR PF>0.95/230VAC PF>0.98/115VAC at full load
EFFICIENCY (Typ.) 74%
AC CURRENT (Typ.) 2.5A/115VAC 1.2A/230VAC
INRUSH CURRENT (Typ.) COLD START<=40A/230V
LEAKAGE CURRENT <3.5mA / 240VAC
PROTECTION OVERLOAD 105 ~ 150% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE CH1:5.75 ~ 6.75V CH2:3.8 ~ 4.4V
Shut down o/p voltage, recovers automatically after temperature goes down
OVER TEMPERATURE(OPTION Shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENT WORKING TEMP. -10 ~ +60 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -20 ~ +85, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03%/ (0~50)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY &EMC SAFETY STANDARDS UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, light industry level, criteria A, EAC TP TC 020
Others MTBF 141.5K hrs min. MIL-HDBK-217F (25)
DIMENSION 199*99*50mm (L*W*H)
PACKING 0.93Kg; 20pcs/19.6Kg/1.21CUFT

Meanwell QP-150-3C Features

l  3 years warranty

l  Built-in active PFC function, PF>0.95

l  Forced air cooling by built-in DC fan

l  CH4:±Polarity is selectable

l  Fixed switching frequency at 100KHz

l  Universal AC input/Full range

l  Protections: Short circuit/Overload/Over voltage

Meanwell QP-150-3C Features

Meanwell QP-150-3C Applications

l  Power equipment

l  Security monitoring

l  Medical equipment

l  Liquid crystal displays

l  Audio-visual products

l  Industrial automation control

l  Scientific research equipment

l  Communication equipment

l  Semiconductor refrigeration and heating

l  LED lighting, industrial control equipment

Meanwell QP-150-3C Mechanical Diagram

Meanwell QP-150-3C Mechanical Diagram
