PWM-90-24
24.27

PWM-90-24

$24.27

Meanwell 90W Constant Voltage PWM Output LED Driver with 24V3.75A90W1.47kHz for Blank/DA-Type, 2.5kHz for DA2-Type

- +
Availability:In stock
SKU Meanwell PWM-90-24
Brand Meanwell
Details

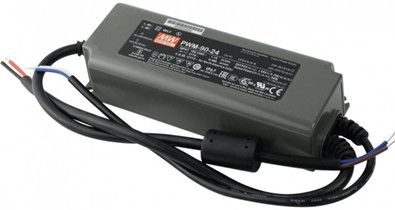

Meanwell PWM-90-24 is 90W LED AC/DC LED driver with 24V3.75A90W1.47kHz for Blank/DA-Type, 2.5kHz for DA2-Type. The item accepts the constant voltage mode with PWM style output. It is able to maintain the brightness homogeneity when driving all kinds of LED strips. PWM-90-24 works from 90~ 305VAC with rated voltage 24V. Since the efficiency reaches high up to 90.5% based on no fan design, and no-load loss less than 0.5W, the model could operate for -40℃~ +85℃ case temperature under free air convection, and fit the energy-saving requirements for the new generation of LED lighting. What’s more, the shell has 94V-0 flame retardant plastic box, 5G vibration resistance and the interior filled with thermally conductive silicone to enhance heat dissipation,. The unit also allows for easy and flexible installation in all types of lighting  thanks to the classⅡdesign (no grounding wire required) and the double-insulated weather-resistant SJTW wire at the input. In addition, the item is rated with IP67 ingress protection level and dimming function that varies the duty cycle of the output. In light of its longevity, high efficiency, and excellent quality, Meanwell PWM-90-24 offers great flexibility for LED strips applications for dry, damp or wet locations.

Meanwell PWM-90-24 Price and Specs Constant Voltage PWM Output LED Driver PWM-90-12/24/36/48 90W IP67 Class 2 YCICT

Meanwell PWM-90-24 Encoding

PWM Series Name
90 Rated Wattage
24 Rated Output Voltage (12/24/36/48V)
Function Options
Blank IP67 3 in 1 dimming function (0~10Vdc,10V PWM signal and resistance )
DA IP67 DALI control technology.(for 12V/24V with DA type only ) In stock
DA2 IP67 DALI-2 control technology.(for 12V/24V/48V with DA2 type only ) In stock

Meanwell PWM-90-24 Specifications

Model PWM-90-24
OUTPUT DC VOLTAGE 24V
RATED CURRENT 3.75A
RATED POWER 90W
DIMMING RANGE 0 ~ 100%
PWM FREQUENCY (Typ.) 1.47kHz for Blank/DA-Type, 2.5kHz for DA2-Type
SETUP, RISE TIME 500ms, 80ms/ 115AC or 230VAC
HOLD UP TIME (Typ.) 16ms/115VAC or 230VAC
Input VOLTAGE RANGE 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR PF>0.98/115VAC, PF>0.96/230VAC, PF>0.92/277VAC @ full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION THD< 20%(@load>=60%/115VAC, 230VAC; @load>=75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION” section)
EFFICIENCY (Typ.) 90.50%
AC CURRENT 0.95A / 115VAC 0.5A / 230VAC 0.4A / 277VAC
INRUSH CURRENT(Typ.) COLD START 60A (twidth=550 μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER 3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
NO LOAD POWER CONSUMPTION <0.5W
LEAKAGE CURRENT <0.25mA / 277VAC
PROTECTION OVERLOAD 108 ~ 130% rated output power
Hiccup mode, recovers automatically after fault condition is removed
SHORT CIRCUIT Shut down o/p voltage, re-power on to recover(except for DA2-type) Hiccup mode,recovers automatically after fault condition is removed (only for DA2-type)
OVER VOLTAGE 28-34V
Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE Shut down o/p voltage, re-power on to recover
ENVIRONMENT WORKING TEMP. Tcase=-40 ~ +85 (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP. Tcase=+85
WORKING HUMIDITY 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +80, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS UL8750(except for DA-Type), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384, IP67,BIS IS15885(for 12,24,48 Blank Type only), EAC TP TC 004,GB19510.1, GB19510.14 approved; Design refer to BS EN/EN60335-1;According to BS EN/EN61347-2-13 appendix J suitable for emergency installations(EL)(AC Input: 100-240Vac)(for DA2-Type only)
DALI STANDARDS IEC62386-101, 102, 207,251 for DA/DA2-Type only,Device type 6(DT6)
WITHSTAND VOLTAGE I/P-O/P:3.75KVAC; I/P-DA:1.5KVAC; O/P-DA:1.5KVAC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load>=60%) ; BS EN/EN61000-3-3,GB17743 and GB17625.1,EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Line 2KV), EAC TP TC 020
Others MTBF 2394.5K hrs min. Telcordia SR-332 (Bellcore) ; 224.2K hrs min. MIL-HDBK-217F (25)
DIMENSION 171*63*37.5mm (L*W*H)
PACKING 0.77Kg; 18pcs/14.9Kg/0.97CUFT

Meanwell PWM-90-24 Features

l  Constant Voltage PWM style output

l  No load power consumption <0.5W

l  Fully encapsulated with IP67 level

l  Built-in active PFC function and classⅡdesign

l  Class 2 power unit (except PWM-90-12)

l  Function: 3 in 1 dimming (dim-to-off); DALI/DALI-2

l  Minimum dimming level 0.2% for DALI type

l  Typical lifetime> 50000 hours and 5 years warranty

l  Emergency lighting application is available according to lEC61347-2-13

Meanwell PWM-90-24 Price and Specs Constant Voltage 90W PWM Output LED Driver PWM-90-12/24/36/48 IP67 AC/DC YCICT

Meanwell PWM-90-24 Applications

l  LED strip lighting

l  Indoor LED lighting

l  LED decorative lighting

l  LED architecture lighting

l  Industrial lighting

Meanwell PWM-90-24 Mechanical Diagram

Meanwell PWM-90-24 Price and Specs Constant Voltage PWM Output LED Driver PWM-90-12/24/36/48 90W with IP67 AC/DC YCICT

Meanwell PWM-90-24 Price and Datasheet Constant Voltage PWM Output LED Driver PWM-90-12/24/36/48 90W IP67 AC/DC YCICT
