PWM-60-24
23.27
Details

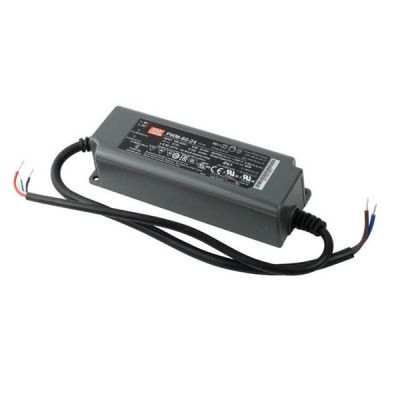

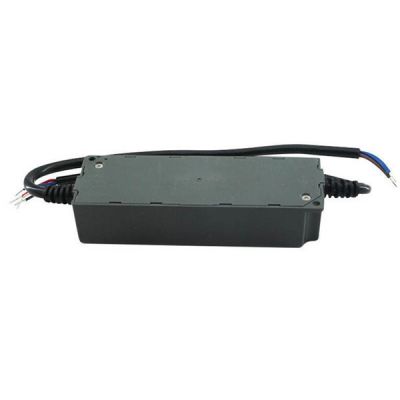

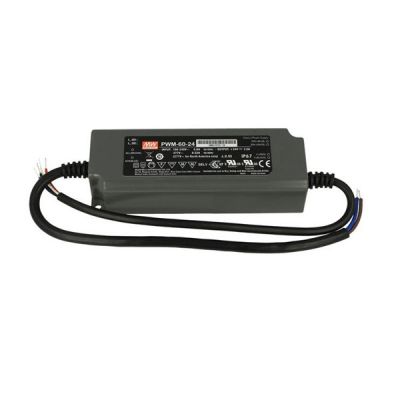

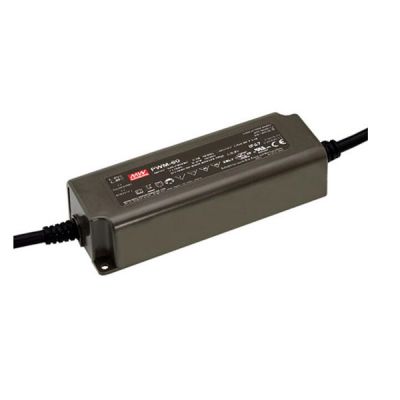

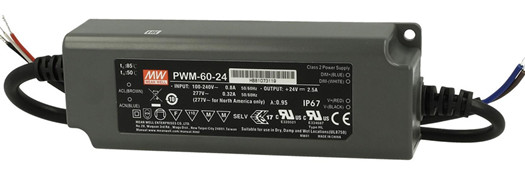

Meanwell PWM-60-24 is 60W LED AC/DC LED driver with 24V2.5A60W1.47kHz for Blank/DA-Type, 2.5kHz for DA2-Type. The item outstands the constant voltage mode with PWM style output, and it maintains the brightness homogeneity when driving all kinds of LED strips. PWM-60-24 could operate from 90~ 305VAC with rated voltage 24V. Since the efficiency reaches high up to 90% based on no fan design, the model is ableto work for -40℃~ +85℃ case temperature under free air convection. This DALI control function is designed in accordance with the specifications of IEC62386-101/102/207, and used with current DALI compliant controllers on the market. What’s more, the unit is rated with IP67 ingress protection level and dimming function that varies the duty cycle of the output. Thanks to its longevity, high efficiency, and excellent quality, Meanwell PWM-60-24 provides great flexibility for LEDstrips applications for dry, damp or wet locations.
Meanwell PWM-60-24 Encoding
| PWM | Series Name |
| 60 | Rated Wattage |
| 24 | Rated Output Voltage (12/24/36/48V) |
| Blank IP67 | 3 in 1 dimming function (O~1OVdc,1OV PWM signal and resistance ) |
| DA IP67 | DALI control technology.(for 12V/24V with DA type only ) In stock |
| DA2 IP67 | DALI-2 control technology.(for 12V/24V with DA2 type only ) In stock |
Meanwell PWM-60-24 Specifications
| Model | PWM-60-24□ | |
| OUTPUT | DC VOLTAGE | 24V |
| RATED CURRENT | 2.5A | |
| RATED POWER | 60W | |
| DIMMING RANGE | 0 ~ 100% | |
| PWM FREQUENCY (Typ.) | 1.47kHz for Blank/DA-Type, 2.5kHz for DA2-Type | |
| SETUP, RISE TIME | 500ms, 80ms/ 115AC or 230VAC | |
| HOLD UP TIME (Typ.) | 16ms/115VAC or 230VAC | |
| Input | VOLTAGE RANGE | 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section) |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR | PF>0.97/115VAC, PF>0.95/230VAC, PF>0.92/277VAC @ full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section | |
| TOTAL HARMONIC DISTORTION | THD< 20%(@load>=60%/115VAC, 230VAC; @load>=75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION” section) | |
| EFFICIENCY (Typ.) | 89.00% | |
| AC CURRENT | 0.8A / 115VAC 0.4A / 230VAC 0.32A / 277VAC | |
| INRUSH CURRENT(Typ.) | COLD START 50A(twidth=270μs measured at 50% Ipeak) at 230VAC; Per NEMA 410 | |
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 9 units (circuit breaker of type B) / 16 units (circuit breaker of type C) at 230VAC | |
| NO LOAD POWER CONSUMPTION | <0.5W | |
| LEAKAGE CURRENT | <0.25mA / 277VAC | |
| PROTECTION | OVERLOAD | 108 ~ 130% rated output power |
| Hiccup mode, recovers automatically after fault condition is removed | ||
| SHORT CIRCUIT | Shut down o/p voltage, re-power on to recover(except for DA2-type) Hiccup mode,recovers automatically after fauit condition is removed (only for DA2-type) | |
| OVER VOLTAGE | 28-34V | |
| Shut down o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | Shut down o/p voltage, re-power on to recover | |
| ENVIRONMENT | WORKING TEMP. | Tcase=-40 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section) |
| MAX. CASE TEMP. | Tcase=+85℃ | |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |
| SAFETY & EMC | SAFETY STANDARDS | UL8750( type ”HL” )( except for DA-Type), UL879( for 12V,24V Blank Type only), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384, IP67,BIS IS15885(for 12,24, 48 Blank Type only), EAC TP TC 004, GB19510.1,GB19510.14 approved; Design refer to BS EN/EN60335-1; According to BS EN/EN61347-2-13 appendix J suitable for emergency installations(EL)(AC Input: 100-240Vac)(for DA2-Type only) |
| DALI STANDARDS | IEC62386-101, 102, 207,251 for DA/DA2-Type only,Device type 6(DT6) | |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC; I/P-DA:1.5KVAC; O/P-DA:1.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load>=60%) ; BS EN/EN61000-3-3,GB17743 and GB17625.1,EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Line 2KV),EAC TP TC 020 | |
| Others | MTBF | 2626.6K hrs min. Telcordia SR-332 (Bellcore) ; 227.1K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 150*53*35mm (L*W*H) | |
| PACKING | 0.49Kg;30pcs/15.7Kg/1.0CUFT | |
Meanwell PWM-60-24 Features
l Constant Voltage PWM style output
l No load power consumption <0.5W
l Fully encapsulated with IP67 level
l Function: 3 in 1 dimming (dim-to-off); DALI/DALI-2
l Minimum dimming level 0.2% for DALI type
l Built-in active PFC function and class Il/2 design
l Typical lifetime> 50000 hours and 5 years warranty
l Emergency lighting application is available according to IEC61347-2-13
Meanwell PWM-60-24 Applications
l LED strip lighting
l Indoor LED lighting
l LED decorative lighting
l LED architecture lighting
l Industrial lighting
l Type "HL" for use in Class l, Division 2 hazardous (Classified) location
Meanwell PWM-60-24 Mechanical Diagram
