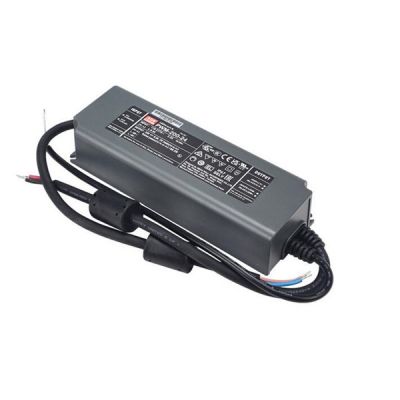

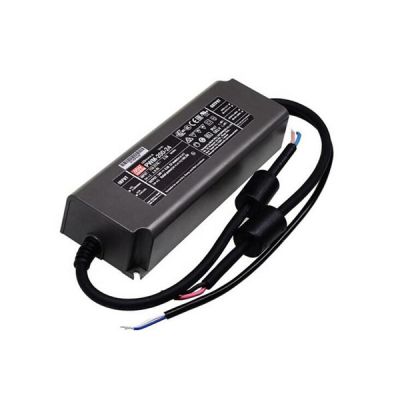

Meanwell 200W Constant Voltage PWM Output LED Driver

- +
Availability:In stock
SKU Meanwell PWM-200
Brand Meanwell
Details

Meanwell PWM-200 Series is 200W AC/DC LED driver highlighting constant voltage mode with PWM style output, which is able to maintain color temperature and brightness homogeneity when driving all kinds of LED strips. At the same time,  the entire series operates from 100~ 305V AC and offers the models with different rated voltage ranging between 12V and 48V. Since the high efficiency reaches up to 94% with fanless design, and low no-load power consumption below 0.5W, PWM-200 Series is able to work for -40℃~+85℃ case temperature under free air convection. By using full glue filling technology, the product meets IP67 waterproof, which is suitable for industrial or outdoor humid environments. Additionally, it is equipped with dimming function that varies the duty cycle of the output, providing great flexibility for LED strips. Considering its longevity, high efficiency, and excellent quality, Meanwell PWM-200 Series is ideal for flexible installation in applications such as LED strip lighting, indoor LED lighting, LED decorative lighting, and LED architectural lighting.

Meanwell PWM-200 Price and Specs 200W Constant Voltage PWM Output LED Driver PWM-200-12/24/36/48 with IP67 PFC YCICT

Meanwell PWM-200 Series Encoding

PWM Series Name
200 Rated Wattage
48 Rated Output Voltage (12/24/36/48V)
Function Options
Blank IP67 3 in 1 dimming function (0~10Vdc,10V PWM signal and resistance ) In stock
DA2 IP67 Push Dimming or DALI-2 control technology In stock

Meanwell PWM-200 Series Model Specifications

Model PWM-200-12 PWM-200-24 PWM-200-36 PWM-200-48
OUTPUT DC VOLTAGE 12V 24V 36V 48V
RATED CURRENT 15A 8.3A 5.55A 4.17A
RATED POWER 180W 199.2W 199.8W 200.1W

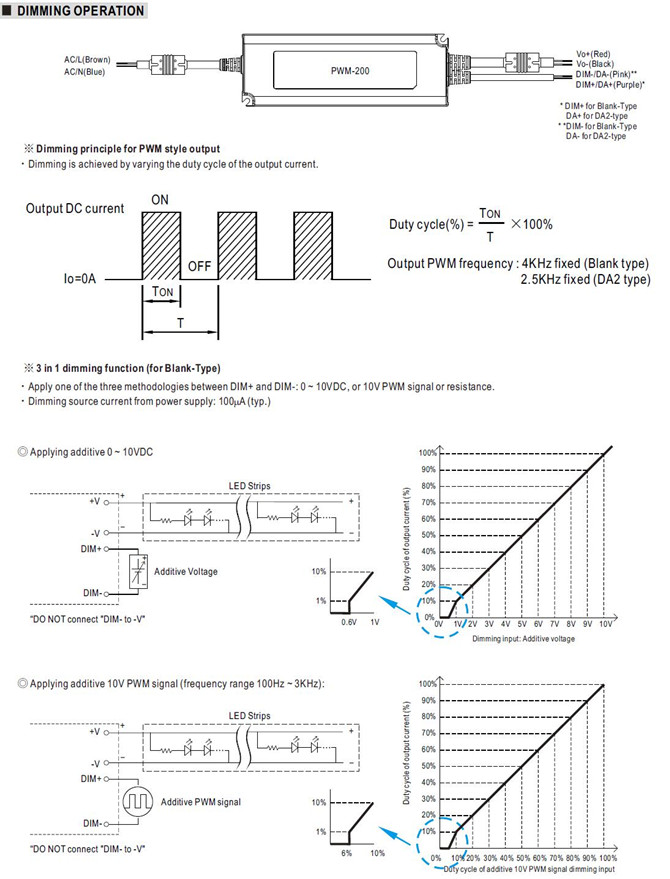

DIMMING RANGE 0 ~ 100%
PWM FREQUENCY (Typ.) 4kHz for Blank type; 2.5kHz for DA2 type
SETUP, RISE TIME 500ms, 80ms/230VAC or 115VAC
HOLD UP TIME (Typ.) 10ms/230VAC or 115VAC
Input VOLTAGE RANGE 100 ~ 305VAC 142 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR PF>0.97/115VAC, PF>0.96/230VAC, PF>0.94/277VAC @ full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION THD<20%(@load>=60%/115VAC, 230VAC; @load>=75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION” section)
EFFICIENCY (Typ.) 92.00% 93.00% 94.00% 94.00%
AC CURRENT (Typ.) 2.2A / 115VAC 1.1A / 230VAC 0.9A / 277VAC
INRUSH CURRENT(Typ.) COLD START 65A(twidth=55μ0 s measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER 3 units (circuit breaker of type B) / 5 units (circuit breaker of type C) at 230VAC
STANDBY POWER CONSUMPTION standby power consumption<0.5W when dimming off
LEAKAGE CURRENT <0.75mA / 277VAC
PROTECTION OVERLOAD 108 ~ 135% rated output power
Hiccup mode or Constant current limiting,recovers automatically after fault condition is removed
SHORT CIRCUIT Shut down o/p voltage, re-power on to recover (except for DA2-type) Hiccup mode,recovers automatically after fault condition is removed (only for DA2-type)
OVER VOLTAGE 13-18V 27-34V 41-49V 53-65V
Shut down o/p voltage, re-power on to recover after fault condition is removed
OVER TEMPERATURE Shut down o/p voltage, re-power on to recover after fault condition is removed
ENVIRONMENT WORKING TEMP. Tcase=-40 ~ +85 (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP. Tcase=+85
WORKING HUMIDITY 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +80, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS UL8750( type ”HL” ), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13,BS EN/EN62384
independent, IP67, EAC TP TC 004,GB19510.1,GB19510.14, IS15885(Part2/Sec13)(except for 36V) approved;
Design refer to BS EN/EN60335-1, According to BS EN/EN61347-2-13 appendix J suitable for emergency installations
DALI STANDARDS Comply with IEC62386-101, 102, 207, 251 for DA2 Type only, Device type 6(DT6)
WITHSTAND VOLTAGE I/P-O/P: 3.75KVAC; I/P-DA: 1.5KVAC; O/P-DA:1.5KVAC
ISOLATION RESISTANCE I/P-O/P: 100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load>=60%) ; BS EN/EN61000-3-3,GB17743 and GB17625.1,EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity, Line-Line 2KV),EAC TP TC 020
Others MTBF 2235.6K hrs min. Telcordia SR-332 (Bellcore) ;178.7K hrs min. MIL-HDBK-217F (25)
DIMENSION 195*68*39.5mm (L*W*H)
PACKING 1.03Kg; 12pcs/ 13.4Kg/ 0.71CUFT

Meanwell PWM-200 Series Features

l  Constant voltage PWM style output with frequency up to 4kHz compliant IEEE1789-2015

l  Plastic housing with class II and PFC design

l  Emergency lighting application is available according to lEC61347-2-13

l  Standby power consumption <0.5W

l  Fully encapsulated with IP67 level

l  Function options:3 in 1 dimming (dim-to-off and isolated Design)/DALl-2

l  Minimum dimming level 0.2% for DA2 type

l  Typical lifetime > 50000 hrs and 5 years warranty

Meanwell PWM-200 Price and Specs Constant Voltage 200W PWM Output LED Driver PWM-200-12/24/36/48 IP67 PFC class 2 YCICT

Meanwell PWM-200 Series Applications

l  LED strip lighting

l  Indoor LED lighting

l  LED decorative lighting

l  LED architecture lighting

l  Cove lighting

l  Industrial lighting

l  Type "HL" for use in class l, division 2 hazardous (classified) location

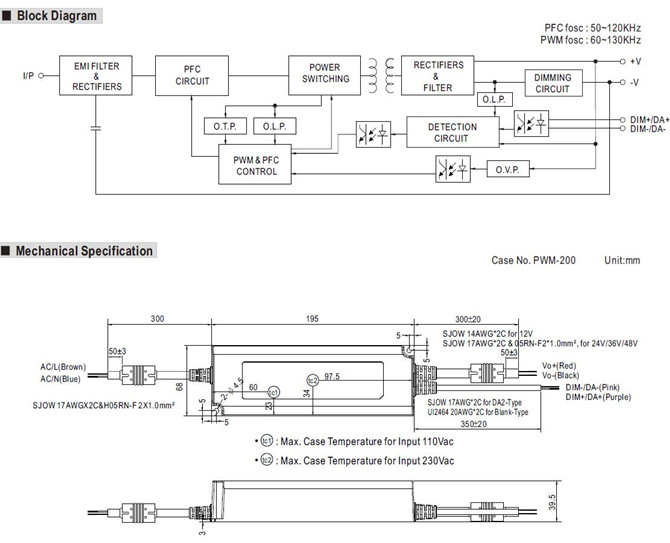

Meanwell PWM-200 Series Mechanical Diagram

Meanwell PWM-200 Price and Specs Constant Voltage 200W PWM Output LED Driver PWM-200-12/24/36/48 IP67 and PFC YCICT

Meanwell PWM-200 Price and Datasheet Constant Voltage 200W PWM Output LED Driver PWM-200-12/24/36/48 IP67 PFC YCICT
