PV-SMI-2000C
243.48
Details

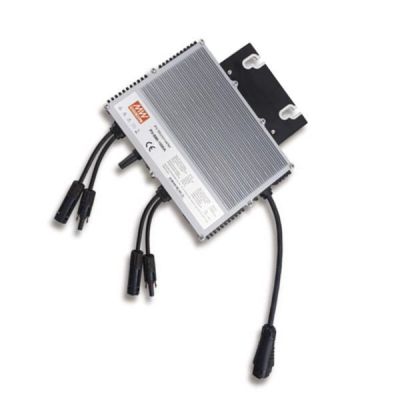

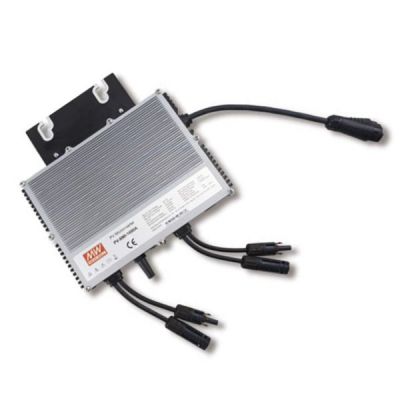

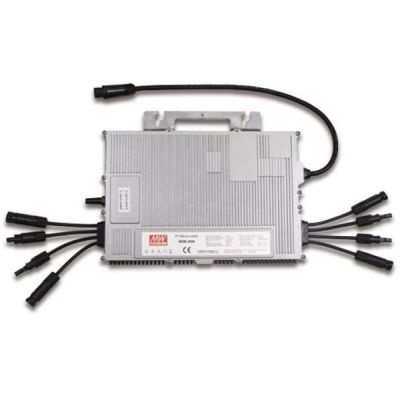

Meanwell PV-SMI-2000C is a 2000VA Micro-Inverter which supports four-channel input with up to 750W per solar module, compatible with 99% of PV module models on the market. Equipped with independent MPPT technology, the item achieves 99.5% tracking efficiency to maximize power generation under complex lighting conditions. Additionally, featuring built-in PLC/Wi-Fi communication, PV-SMI-2000C enables real-time monitoring via APP/Web interfaces and offers automatic fault alarm/localization to enhance operational efficiency. Apart from them, the standardized plug-and-play QC4 interface ensures "zero professional expertise required" for installation and expansion. With IP67 protection rating, Meanwell PV-SMI-2000C withstands extreme temperatures, humidity, salt spray, and dusty environments, making it adaptable to various photovoltaic systems.
Meanwell PV-SMI-2000C Encoding
| PV | Product classification (PV: photovoltaics) | |
| SMI | Series Name | |
| 2000 | Rated Power | |
| C | Output voltage type | A:230Vac |
| B:208Vac | ||
| C:240Vac | ||
Meanwell PV-SMI-2000C Specifications
| MODEL | PV-SMI-2000A | PV-SMI-2000B | PV-SMI-2000C | |
| DC INPUT | PV POWER | 4*750W | ||
| MPPT VOLTAGE RANGE | 22-55V | |||
| STARTING VOLTAGE | 24V | |||
| VOLTAGE (MAX.) | 60V | |||
| AC OUTPUT | CURRENT (MAX.) | 4*18A | 4*20A | |
| POWER (PEAK) | 2000VA | |||
| POWER (CONTINUOUS) | 2000VA | 1664VA | 1920VA | |
| VOLTAGE | 230V | 208V | 240V | |
| CURRENT | 8.69A | 8A | ||
| POWER FACTOR | >0.99 (Full load) | 0.9 leading---0.9 lagging | ||
| THD (RATED POWER) | <3% | |||
| EFFICIENCY | EFFICIENCY (HIGHEST) | 97.30% | ||
| MPPT EFFICIENCY | >99.5% | |||
| NIGHT POWER CONSUMPTION | 110mW | |||
| ENVIRONMENT | WORKING TEMP | -40-65℃ | ||
| WORKING HUMIDITY | 0-100% | |||
| PROTECTION CLASS | IP67 | NEMA6 | ||
| SAFETY&EMC | SAFETY STANDARDS | IEC62109-1:2010/EN62109-1:2010,IEC62109-2:2011/EN62109-2:2011, EN62109-1:2010,EN62109-2:2011approved |
||
| WITHSTAND VOLTAGE | I/P-O/P=4KVdc I/P-FG=0.8KVdc O/P-FG=4KVdc | |||
| EMC EMISSION | Parameter | Standard | Test Level | |
| Conducted emission | EN 301489-17V3.2.4, ENIEC61000-6-3:2021 |
Class B | ||
| Radiated emission | EN301489-17V3.2.4, ENIEC61000-6-3:2021 |
Class B | ||
| ELECTROMAGNETIC RESISTANCE | Parameter | Standard | Test Level | |
| ESD | ENIEC61000-6-1:2019, EN 301489-17V3.2.4 |
Level3, 8KV air;Level 2,4KV contact | ||
| RS | ENIEC61000-6-1:2019, EN301489-17V3.2.4 |
Level 3 | ||
| EFT | ENIEC 61000-6-1:2019, EN301489-17V3.2.4 |
Level 2,1KV | ||
| Surge | ENIEC61000-6-1:2019, EN301489-17V3.2.4 |
Level 3,2KV/Line-Line 2KV/Line-Earth | ||
| Conducted | ENIEC61000-6-1:2019, EN301489-17V3.2.4 |
Level 3 | ||
| Magnetic Field | ENIEC 61000-6-1:2019, EN301489-17V3.2.4 |
Level 3 | ||
| OTHERS | DC CONNECTOR TYPE | QC4 | ||
| COMMUNICATION | WiFi (2.4G) | PLC | ||
| WEIGHT | 6.0KG | |||
| DIMENSION | 351*275*39.5mm | |||
Meanwell PV-SMI-2000C Features
l IP67 protection level
l Pure sine wave output (THD <3%)
l Easy Installation, MC4 Plug &Play
l MPPT tracking efficiency up to 99.9%
l CEC weighted average efficiency up to 96.5%
l Maximum DC input voltage is 60V
l -40℃ to 65℃ operating temperature
l Real-time control of plant operation status
l Automatic high temperature and fault warrning
l 10-year warranty (25-year warranty for B/C type)
l APP monitoring with built-in WiFi or PLC communication methods
l Equipped with various protections such as GFDI, surge protection
Meanwell PV-SMI-2000C Applications
l Small commercial photovoltaic system
l Rooftop Photovoltaic System
l Floating Photovoltaic System
Meanwell PV-SMI-2000C Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
