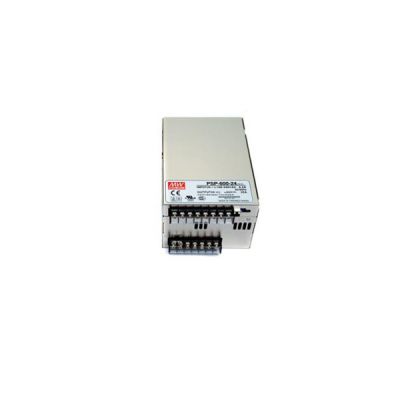

PSP-600-5
121.13
Details
Meanwell PSP-600-5 is 600W switching power supply 5V80A0-80A400W with PFC and parallel function. By using lead-free manufacturing process, it meets the environmental protection RoHS requirements. Built-in active power factor correction circuit (PFC) benefits to improve energy efficiency and reduce harmonic interference. Under global full range voltage input, PSP-600 model has parallel output function reaching up to 2400W (3+1), and has complete function such as short-circuit protection/overload protection/overvoltage protection/overheat protection. PSP-600-5 is additionally certified with UL/TUV/CB/CE and 100% full load aging test. What is more, this model has built-in remote detection function (with line loss compensation function) and remote switch control, and Switching frequency: PFC: 88KHz, PWM: 100KHz and DC OK signal output. Owing to its High efficiency, long life, and high reliability, Meanwell PSP-600-5 serves as a high-performance power supply solution for various industrial cases.
Meanwell PSP-600-5 Specifications
| Model | PSP-600-5 | |
| Output | DC VOLTAGE | 5V |
| RATED CURRENT | 80A | |
| CURRENT RANGE | 0-80A | |
| RATED POWER | 400W | |
| RIPPLE & NOISE (max.) mVp-p | 180 | |
| VOLTAGE ADJ. RANGE | 4.75-5.5V | |
| VOLTAGE TOLERANCE | ±2% | |
| LINE REGUL ATION | ±0.5% | |
| LOAD REGULATION | ±1% | |
| SETUP, RISE TIME | 1500ms, 50ms at full load | |
| HOLD UP TIME | 20ms at full load | |
| Input | VOLTAGE RANGE | 88 ~ 264VAC 124 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR (Typ.) | 0.95/230VAC 0.99/115VAC at full load | |
| EFFICIENCY (Typ.) | 79.00% | |
| AC CURRENT (Typ.) | 6.8A/115VAC 3.4A/230VAC | |
| INRUSH CURRENT (Typ. ) | 20A/115VAC 40A/230VAC | |
| LEAKAGE CURR ENT | <1.3mA/240VAC | |
| PROTECTION | OVERLOAD | 105 ~ 135% rated output power |
| Protection type : Constant current limiting, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 5.75-6.75V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | Shut down o/p voltage, re-power on to recover | |
| FUNCTION | REMOTE CONTROL | RC+/RC-: Short = power on ; Open = power off |
| POK SIGNAL | PSU turn on: 3.3V ~ 5.6V PSU turn off: 0V ~ 1V | |
| ENVIRONMENT | WORKING TEMP | -20 ~ +60℃(Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | UL62368-1, TUV BS EN/EN62368-1, CCC GB4943.1, BSMI CNS14336-1, AS/NZS62368.1, EAC TP TC 004 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, GB9245, GB17625.1, BSMI CNS13438, EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, light industry level, criteria A, EAC TP TC 020 | |
| Others | MTBF | 116.4K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 170*120*93mm (L*W*H) | |
| PACKING | 1.9Kg; 8pcs/15.5Kg/1.00CUFT | |
Meanwell PSP-600-5 Features
l 3-year warranty
l Built-in active PFC function
l With DC OK Signal output
l Built-in remote sense function
l Universal AC input/ Full range
l Built-in remote ON-OFF control
l Current sharing up to 2400W (3+1)
l Forced air cooling by built-in DC fan
l Operating altitude up to 3000 meters
l Fixed switching frequency at PFC:88KHz PWM:100KHz
l Protections: Short circuit/Overload/Over voltage/Over temperature
Meanwell PSP-600-5 Mechanical Diagram
