PSP-600-24
126.63

PSP-600-24

$126.63

Meanwell 600W with PFC and Parallel Function 24V25A0-25A600W24020-26.4V±1%±0.5%±0.5%

- +
Availability:In stock
SKU Meanwell PSP-600-24
Brand Meanwell
Details

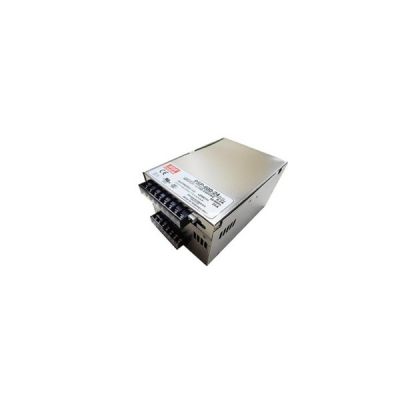

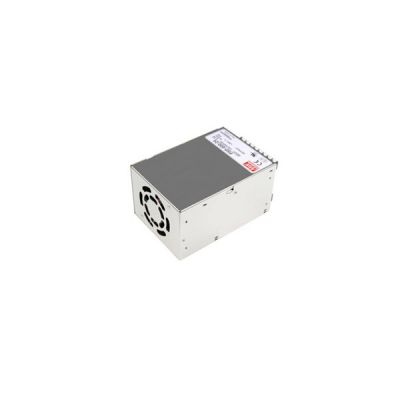

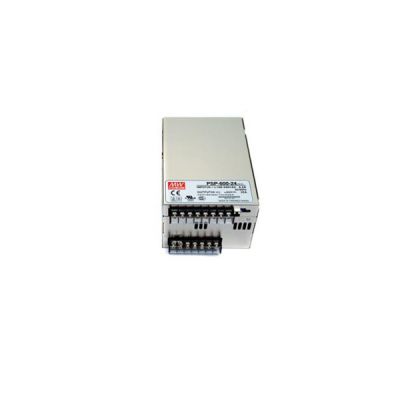

Meanwell PSP-600-24 is 600W high-power switching power supply with 24V25A0-25A600W. By using lead-free manufacturing process, it fits environmental protection RoHS requirement, and the built-in active power factor correction circuit (PFC) is beneficial to improve energy efficiency and reduce harmonic interference. As to global full range voltage input, the model has parallel output function reaching up to 2400W (3+1), and also full function such as short-circuit protection, overload protection, overvoltage protection and overheat protection. Moreover, this power supply is certified: UL/TUV/CB/CE and 100% full load aging test. PSP-600-24 has built-in remote detection function (with line loss compensation function) and remote switch control, and also Switching frequency: 88KHz, PWM: 100KHz and DC OK signal output. In light of its high efficiency, long life, and high reliability, Meanwell PSP-600-24 is a high-performance power supply solution for various industrial areas.

Meanwell PSP-600-24 Specifications

Meanwell PSP-600-24 Specifications

Model PSP-600-24
Output DC VOLTAGE 24V
RATED CURRENT 25A
CURRENT RANGE 0-25A
RATED POWER 600W
RIPPLE & NOISE (max.) mVp-p 240
VOLTAGE ADJ. RANGE 20-26.4V
VOLTAGE TOLERANCE ±1%
LINE REGUL ATION ±0.5%
LOAD REGULATION ±0.5%
SETUP, RISE TIME 1500ms, 50ms at full load
HOLD UP TIME  20ms at full load
Input VOLTAGE RANGE 88 ~ 264VAC 124 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR (Typ.) 0.95/230VAC 0.99/115VAC at full load
EFFICIENCY (Typ.)  86.00%
AC CURRENT (Typ.) 6.8A/115VAC 3.4A/230VAC
INRUSH CURRENT (Typ. ) 20A/115VAC 40A/230VAC
LEAKAGE CURR ENT <1.3mA/240VAC
PROTECTION OVERLOAD 105 ~ 135% rated output power
Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE 27.6-32.4V
Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE Shut down o/p voltage, re-power on to recover
FUNCTION REMOTE CONTROL RC+/RC-: Short = power on ; Open = power off
POK SIGNAL PSU turn on: 3.3V ~ 5.6V PSU turn off: 0V ~ 1V
ENVIRONMENT WORKING TEMP -20 ~ +60(Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03%/(0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY &EMC SAFETY STANDARDS UL62368-1, TUV BS EN/EN62368-1, CCC GB4943.1, BSMI CNS14336-1, AS/NZS62368.1, EAC TP TC 004 approved
WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, GB9245, GB17625.1, BSMI CNS13438, EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, light industry level, criteria A, EAC TP TC 020
Others MTBF 116.4K hrs min. MIL-HDBK-217F (25)
DIMENSION 170*120*93mm (L*W*H)
PACKING 1.9Kg; 8pcs/15.5Kg/1.00CUFT

Meanwell PSP-600-24 Features

l  3 years warranty

l  Built-in active PFC function

l  With DC OK Signal output

l  Universal AC input/ Full range

l  Built-in remote ON-OFF control

l  Built-in remote sense function

l  Current sharing up to 2400W (3+1)

l  Forced air cooling by built-in DC fan

l  Operating altitude up to 3000 meters

l  Fixed switching frequency at PFC:88KHz PWM:100KHz

l  Protections: Short circuit/Overload/Over voltage/Over temperature

Meanwell PSP-600-24 Features

Meanwell PSP-600-24 Mechanical Diagram

Meanwell PSP-600-24 Mechanical DiagramMeanwell PSP-600-24 Mechanical Diagram
