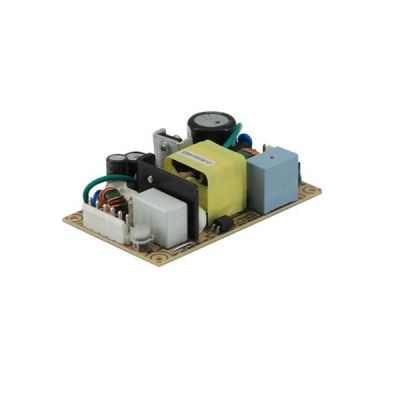

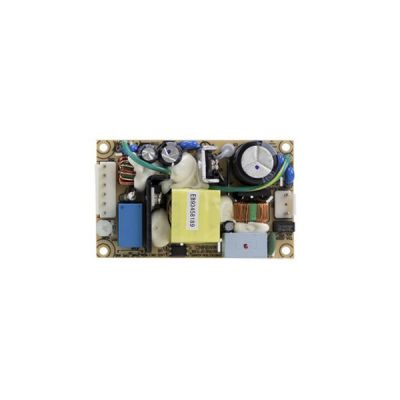

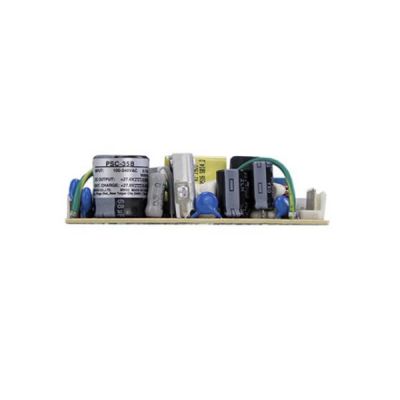

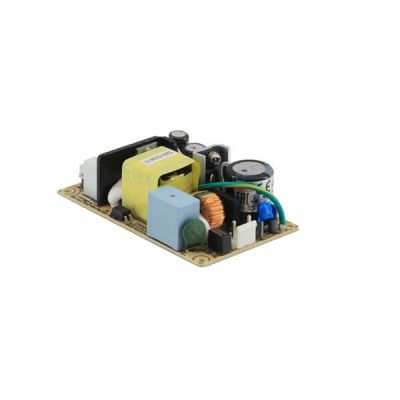

Meanwell PSC-35A is a 35W AC/DC security power supply with CH1CH213.8V13.8V1.7A0.9A0-0.26A35.88W120mVp-pCH1:12-15V. The product allows the universal input range between 90VAC and264V AC and incorporates the built-in PFC function. Apart from the primary output, there is a charger output, with a smaller rated current, supplying the backup application the security access systems normally need. What’s more, PSC-35A delivers an efficiency reaching up to 86%, so that it can operate with air convection under -30℃ through 70℃. Since it is designed with thorough alarm features, including AC OK and battery low signaling, the relay contact is provided to facilitate users' system designs. At the same time, PSC-35A is available in the PCB type (3.3" x2") or the enclosed type with L-Bracket and cover. Due to its excellent quality, high efficiency and outstanding reliability, Meanwell PSC-35A is a high price-to-performance power supply solution for various industrial applications in harsh working environments.

Meanwell PSC-35A

Meanwell PSC-35A Encoding

PSC Series Name
35 Output wattage
A Output Voltage
C Type
Blank PCB Type
C Enclosed Type

Meanwell PSC-35A Specifications

Model PSC-35A
OUTPUT OUTPUT NUMBER CH1 CH2
DC VOLTAGE 13.8V 13.8V
RATED CURRENT 1.7A 0.9A
CURRENT RANGE 0-0.26A -----
RATED POWER 35.88W
RIPPLE & NOISE (max.) 120mVp-p ----
VOLTAGE ADJ. RANGE CH1:12-15V
VOLTAGE TOL ERANCE  ±1.0% ----
LINE REGULATION ±0.5% ----
LOAD REGULATION ±0.5% ----
SETUP, RISE TIME 800ms, 50ms/230VAC 1600ms, 50ms/115VAC at full load
HOLD UP TIME (Typ.) 50ms/230VAC 10ms/115VAC at full load
INPUT VOLTAGE RANGE 90 ~ 264VAC 127 ~370VDC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 84.00%
AC CURRENT (Typ.) 0.75A/115VAC 0.5A/230VAC
INRUSH CURRENT(Typ.) COLD START 20A/115VAC 40A/230VAC
LEAKAGE CURRENT <1mA / 240VAC
PROTECTION OVERL OAD 105 ~ 150% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE CH1:14.49 ~ 19.5V
Protection type : Shut down O/P Voltage, repower on to recover
BATTERY CUT OFF 10±0.5V
FUNCTION AC OK TTL open collector output, ON : AC OK ; OFF : AC Fail ; Ice : max. 30mA@ 50VDC
BATTERY LOW TTL open collector output, ON : Battery Low ; OFF : Battery OK ; Ice : max. 30mA@ 50VDC
Battery low voltage : < 11V
ENVIRONMENT WORKING TEMP. -30 ~ +70 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -20 ~ +85, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0~50) on CH1 output
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS  UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMS IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, light industry level, EAC TP TC 020
OTHERS MTBF 4114.3K hrs min. Telcordia SR-332 (Bellcore) ; 658.4K hrs min. MIL-HDBK-217F (25)
DIMENSION PCB:84.6*50.8*24mm (L*W*H) ; Enclosed type:86.4*59.6*30mm (L*W*H)
PACKING PCB:0.092Kg;90pcs/9.28Kg/0.97CUFT ; Enclosed type: 0.145Kg;100pcs/15.5Kg/1.03CUFT

Meanwell PSC-35A Features

l  2 years warranty

l  Universal AC input/ Full range

l  3.3"x2" compact PCB size

l  Alarm signal for AC OK and Battery low

l  Cooling by free air convection

l  100% full load burn-in test

l  Models with L- Bracket and cover available (PSC-35x-C, x=A,B)

l  Protections: Short circuit/Overload/Over voltage Battery low protection/Battery reverse polarity protection by fuse

PSC-35

Meanwell PSC-35A Applications

l  Security system

l  Emergency lighting system

l  Alarm system

l  UPS system

l  Central monitoring system

l  Access systems

Meanwell PSC-35A Mechanical Diagram

Meanwell PSC-35A Mechanical Diagram

Meanwell PSC-35A Mechanical Diagram
