EPP-150-15
32.46

EPP-150-15

$32.46

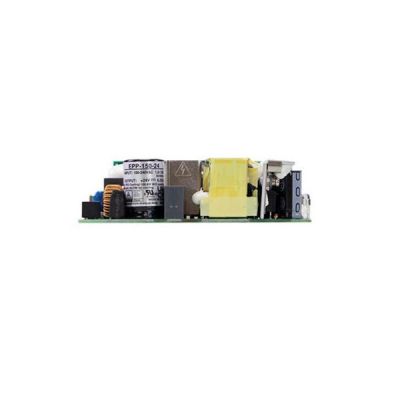

Meanwell 150W Single Output with PFC Function and 15V6.7A10A0-6.7A0-10A100.5W150W150mVp-p14.7-15.75V±2.0%±0.5%±1.0%

- +
Availability:In stock
SKU Meanwell EPP-150-15
Brand Meanwell
Details

Meanwell EPP-150-15 is 150W Single Output highly reliable green PCB type power supply with15V6.7A10A0-6.7A0-10A100.5W150W150mVp-p14.7-15.75V. It features PFC Function and high power density on 4" by 2"footprint. Meanwhile, the item accepts 90~ 264VAC input and various output voltages between 12V and 48V. By the high working efficiency reaching up to 93% and the extremely low no load power consumption. EPP-150-15 can be applied for both Class I (with FG) and Class II (no FG) system design. Moreover, the product offers the complete protection functions such as Short circuit, Overload, Over voltage and Over temperature. Furthermore, EPP-150-15 complies with the international safety regulations such as UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004. Thanks to its high efficiency, powerful performance and longevity, Meanwell EPP-150-15 is a high price-to-performance power supply solution for various industrial applications.

Meanwell EPP-150-15 Specifications

Meanwell EPP-150-15 Specifications

Model EPP-150-15
OUTPUT DC VOLTAGE 15V
RATED CURRENT (convection) 6.7A
RATED CURRENT (20CFM FAN) 10A
CURRENT RANGE (convection) 0-6.7A
CURRENT RANGE (20CFM FAN) 0-10A
RATED POWER (convection) 100.5W
RATED POWER (20CFM FAN) 150W
RIPPLE & NOISE (max.) 150mVp-p
VOLTAGE ADJ. RANGE 14.7-15.75V
VOLTAGE TOL ERANCE  ±2.0%
LINE REGULATION ±0.5%
LOAD REGUL .ATION ±1.0%
SETUP, RISE TIME 1000ms, 30ms/230VAC 2000ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.) 16ms/230VAC 16ms/115VAC at full load
INPUT VOLTAGE RANGE 90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR (Typ.) PF>0.95/230VAC PF>0.98/115VAC at full load
EFFICIENCY (Typ.) 92.00%
AC CURRENT (Typ.) 1.8A/115VAC 1 A/230VAC
INRUSH CURRENT(Typ.) COLD START 70A/230VAC
LEAKAGE CURRENT <2mA/240VAC
PROTECTION OVERL OAD 105 ~ 145% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 16.83-19.5V
Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE Protection type : Shut down o/p voltage, re-power on to recover
FUNCTION AUXILIARY POWER(AUX) 12V @0.3A for driving a fan, tolerance + 10% at main output 100% load
ENVIRONMENT WORKING TEMP. -30 ~ +70(Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/(0 ~ 50)
OPERATING ALTITUDE 2000 meters
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS  UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC/ 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, heavy industry level, criteria A, EAC TP TC 020
OTHERS MTBF 207.1Khrs min. MIL-HDBK-217F (25)
DIMENSION 101.6*50.8*29mm (L*W*H)
PACKING 0.2Kg; 72pcs/15.4Kg/0.82CUFT

Meanwell EPP-150-15 Features

l  4"x2" Compact size

l  3 years warranty

l  LED indicator for power on

l  Built-in active PFC function

l  High efficiency up to 93%

l  No load power consumption<0. 5W

l  Built-in 12V/0.3A auxiliary output

l  Universal AC input/ Full range

l  Protections: Short circuit / Overload / Over voltage/ Over temperature

l  100W free air convection, 150W with 20CFM forced air

Meanwell EPP-150-15 Features

Meanwell EPP-150-15 Mechanical Diagram

Meanwell EPP-150-15 Mechanical Diagram
