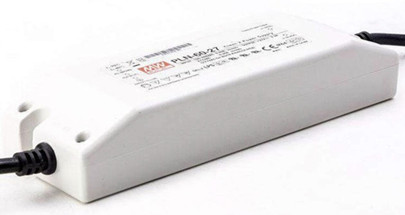

PLN-60-36
25.83

PLN-60-36

$25.83

Meanwell 60W Single Output LED Power Supply with 36V25.2-36V1.7A0-1.7A61.2W3.6Vp-p32.5-39V

- +
Availability:In stock
SKU Meanwell PLN-60-36
Brand Meanwell
Details

Meanwell PLN-60-36 is 60W Single Output LED Power Supply with 36V25.2-36V1.7A0-1.7A61.2W3.6Vp-p32.5-39V. The model stands out with power correction and UL1310 class 2 low power energy regulations. Its output power supply is less than 100VA or 5A under any working condition, greatly reducing the risk of electric shock that technicians may encounter when building or maintaining LED lighting/decoration systems. At the same time, IP64 high dustproof and waterproof design can protect the internal electronic components from the threat of dust and moisture, which can meet the requirements of outdoor or indoor high humidity environment. The efficiency could reach high up to 89%, so it can only use natural air cooling in fully coated plastic shell to operate between -30°C ~+50°C. In addition, built-in standard functions include short-circuit protection, overload protection, over-voltage protection, and over-temperature protection. The input and output is supplied with 18 AWG power cord for flexible assembly in various systems or working situations. The output voltage and output current can also be adjusted by the user to make LED output the best brightness. Meanwell PLN-60-36 is ideal for small LED signage, backlight panels, LED decorative light sources, indoor and outdoor LED lighting power supplies, LED stage lights and theater lighting, etc.

Meanwell PLN-60-36 Price and Specs 60W Single Output LED Power Supply PLN-60-12/15/20/24/27/36/48 PFC IP64 Class 2 YCICT

Meanwell PLN-60-36 Specifications

Model PLN-60-36
OUTPUT DC VOLTAGE 36V
CONSTANT CURRENT REGION 25.2-36V
RATED CURRENT 1.7A
CURRENT RANGE 0-1.7A
RATED POWER 61.2W
RIPPLE & NOISE (max.) 3.6Vp-p
VOLTAGE ADJ. RANGE 32.5-39V
Can be adjusted by internal potentiometer SVR1
CURRENT ADJ. RANGE 3% ~ -25%. Can be adjusted by internal potentiometer SVR2
VOLTAGE TOLERANCE ±10%
LINE REGULATION ±3.0%
LOAD REGULATION ±5.0%
SETUP TIME 500ms / 230VAC 3000ms / 115VAC at full load
INPUT VOLTAGE RANGE 90 ~ 295VAC 127 ~ 417VDC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR (Typ.) PF>0.92/115VAC, PF>0.9/230VAC, PF>0.9/277VAC at full load (Please refer to "Power Factor Characteristic" curve)
TOTAL HARMONIC DISTORTION  THD< 20% when output loading>=75% at 115VAC/230VAC input and output loading>=80% at 277VAC input
EFFICIENCY (Typ.) 89.00%
AC CURRENT (Typ.) 0.8A/115VAC 0.4A/230VAC 0.3A/277VAC
INRUSH CURRENT(Typ.) COLD START 35A(twidth=45μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER 32 units (circuit breaker of type B) / 32 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT <0.75mA / 240VAC
PROTECTION OVER CURRENT 95 ~ 110%
Protection type : Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 41-46V
Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE Shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENT WORKING TEMP -30 ~ +50 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +80, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY&EMC SAFETY STANDARDS UL879, UL1310, UL8750, CSA C22.2 No. 207-M89(except for 48V), TUV BS EN/EN61347-1, BS EN/EN61347-2-13 independent, CAN/CSA C22.2 No. 223-M91 (except for 48V), CSA C22.2 No. 250.0-08(except for 48V), EAC TP TC 004, GB19510.1,GB19510.14,IP64 approved ; design refer to UL60950-1
WITHSTAND VOLTAGE I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (>=75% load) ; BS EN/EN61000-3-3; GB17743 and GB17625.1,EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024,BS EN/EN61547, light industry level, EAC TP TC 020
Others MTBF 3445.2K hrs min. Telcordia SR-332 (Bellcore) ; 497.9Khrs min. MIL-HDBK-217F (25)
DIMENSION 181*61.5*35mm (L*W*H)
PACKING 0.5Kg; 24pcs/13Kg/0.87CUFT

Meanwell PLN-60-36 Features

l  Pass LPS

l  2 years warranty

l  Class 2 power unit

l  100% full load burn-in test

l  High reliability

l  High efficiency 89%

l  Built-in active PFC function

l  Cooling by free air convection

l  Suitable for dry/damp locations

l  Universal AC input/ Full range (up to 295VAC)

l  Fully isolated plastic case with IP64 level

l  Suitable for LED lighting and moving sign applications

l  Compliance to worldwide safety regulations for lighting

l  Protections: Short circuit/Over current/Over voltage/Over temperature

l  Built-in constant current limiting circuit with adjustable OCP level

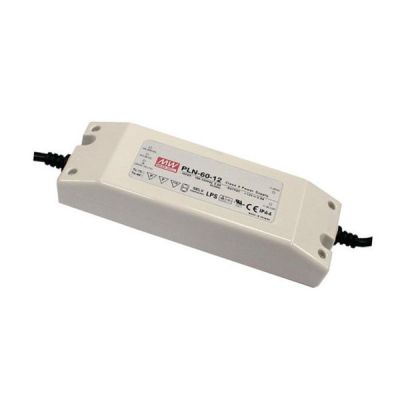

Meanwell PLN-60-36 Price and Specs 60W Single Output LED Power Supply PLN-60-12/15/20/24/27/36/48 PFC IP64 AC/DC YCICT

Meanwell PLN-60-36 Mechanical Diagram

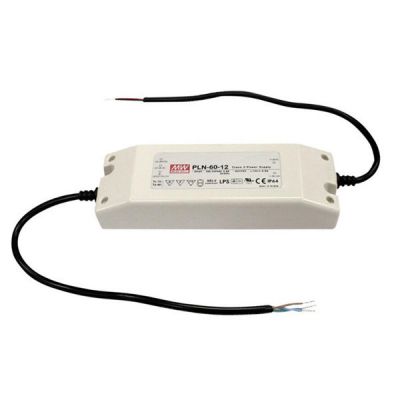

Meanwell PLN-60-36 Price and Specs 60W Single Output LED Power Supply PLN-60-12/15/20/24/27/36/48 PFC IP64 LPS YCICT

Meanwell PLN-60-36 Price and Specs 60W Single Output LED Power Supply PLN-60-12/15/20/24/27/36/48 PFC IP64 Class 2 YCICT
