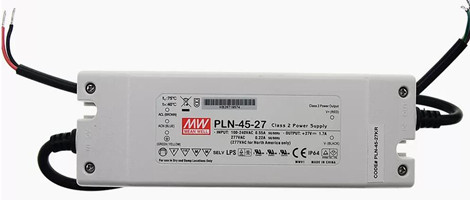

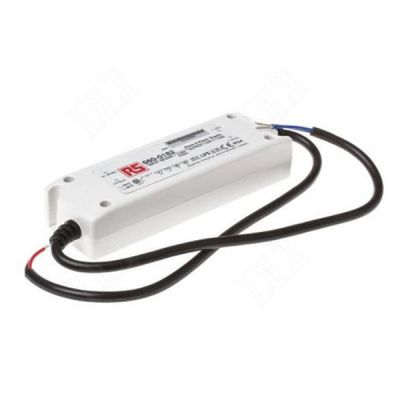

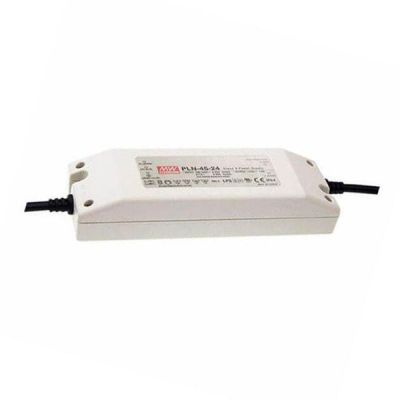

PLN-45-27
19.92
Details
Meanwell PLN-45-27 is 45W Single Output LED Power Supply with 27V20.25-27V1.7A0-1.7A45.9W2.7Vp-p25-30V. The unit features dustproof/waterproof plastic insulated enclosure with power factor correction. It also complies with UL1310 class 2 low power energy regulations and has output power supply less than 100VA or 5A under any conditions, greatly reducing the risk of electric shock technicians may encounter. Additionally, the high dust and water resistance design protects the electronic components inside, meeting the application requirements of high humidity environments. PLN-45-27 adopts single-stage PFC architecture in the circuit design to achieve high PF value in the most economical way, and fits Class C of the harmonic current requirements of the EU EN61000-3-2. What’s more, the highest efficiency can reach 87.5%, so it can only use natural air cooling and heat dissipation to operate at -30℃~+50°C. The built-in standard functions include 277VAC input voltage capability, short circuit protection, overload protection, over voltage protection and over temperature protection, etc., and the input and output mode is equipped with 18AWG power cord, which is convenient for users to flexibly assemble in various systems or working situations. Apart from them, PLN-45-27 has passed TUV/UL/CUL/CE and other international certifications, including UL1310, UL879 SAM list, EN61347-1, EN61347-2-13 and other lighting related regulations
Meanwell PLN-45-27 Specifications
| Model | PLN-45-27 | |
| OUTPUT | DC VOLTAGE | 27V |
| CONSTANT CURRENT REGION | 20.25-27V | |
| RATED CURRENT | 1.7A | |
| CURRENT RANGE | 0-1.7A | |
| RATED POWER | 45.9W | |
| RIPPLE & NOISE (max.) | 2.7Vp-p | |
| VOLTAGE ADJ. RANGE | 25-30V | |
| Can be adjusted by internal potentiometer SVR1 | ||
| CURRENT ADJ. RANGE | 3% ~ -25%. Can be adjusted by internal potentiometer SVR2 | |
| VOLTAGE TOLERANCE | ±10% | |
| LINE REGULATION | ±3.0% | |
| LOAD REGULATION | ±5.0% | |
| SETUP TIME | 500ms / 230VAC 1200ms / 115VAC at full load | |
| INPUT | VOLTAGE RANGE | 90 ~ 295VAC 127 ~ 417VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR (Typ.) | PF>0.92/115VAC, PF>0.9/230VAC, PF>0.9/277VAC at full load (Please refer to "Power Factor Characteristic" curve) | |
| TOTAL HARMONIC DISTORTION | THD< 20% when output loading>=75% at 115VAC/230VAC input and output loading>=80% at 277VAC input | |
| EFFICIENCY (Typ.) | 86.50% | |
| AC CURRENT (Typ.) | 0.55A/115VAC 0.275A/230VAC 0.22A/277VAC | |
| INRUSH CURRENT(Typ.) | COLD START 35A (twidth=50μs measured at 50% Ipeak) at 230VAC | |
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 42 units (circuit breaker of type B) / 42 units (circuit breaker of type C) at 230VAC | |
| LEAKAGE CURRENT | <0.75mA / 240VAC | |
| PROTECTION | OVER CURRENT | 95 ~ 110% |
| Protection type : Constant current limiting, recovers automatically after fault condition is removed | ||
| SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed. | |
| OVER VOLTAGE | 31-35V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |
| ENVIRONMENT | WORKING TEMP | -30 ~ +50℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes | |
| SAFETY&EMC | SAFETY STANDARDS | UL879, UL1310, UL8750, CSA C22.2 No. 207-M89(except for 48V), TUV BS EN/EN61347-1, BS EN/EN61347-2-13 independent, CAN/CSA C22.2 No. 223-M91(except for 48V), CSA C22.2 No. 250.0-08(except for 48V), EAC TP TC 004, GB19510.1,GB19510.14, IP64 approved, design refer to UL60950-1 |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (>=75% load) ; BS EN/EN61000-3-3;GB17743 and GB17625.1,EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level, EAC TP TC 020 | |
| Others | MTBF | 3444.5K hrs min. Telcordia SR-332 (Bellcore) ; 417.1Khrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 181*61.5*35mm (L*W*H) | |
| PACKING | 0.5Kg; 24pcs/13Kg/0.87CUFT | |
Meanwell PLN-45-27 Features
l Pass LPS
l Class 2 power unit
l 100% full load burn-in test
l High reliability
l 2 years warranty
l Cooling by free air convection
l Built-in active PFC function
l Fully isolated plastic case with IP64 level
l Suitable for LED lighting and moving sign applications
l Compliance to worldwide safety regulations for lighting
l Universal AC input/ Full range (up to 295VAC)
l Built-in constant current limiting circuit with adjustable OCP level
l Protections: Short circuit /Over current /Over voltage/Over temperature
Meanwell PLN-45-27 Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
