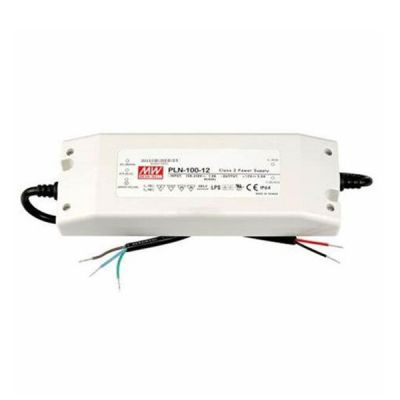

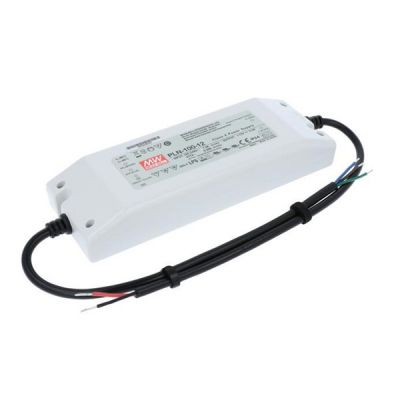

Meanwell 100W Single Output Switching Power Supply with 27V20.25-27V3.55A95.85W150mVp-p23-27V2.6-3.55A±3.0%±1.0%±2.0%

- +
Availability:In stock
SKU Meanwell PLN-100-27
Brand Meanwell
Details

Meanwell PLN-100-27 is 100W Single Output LED Power Supply with 27V20.25-27V3.55A95.85W150mVp-p23-27V2.6-3.55A. It stands out with power correction and UL1310 class 2 low power energy regulations. The output power supply is less than 100VA or 5A under any working condition, which greatly reduces the risk of electric shock that technicians may encounter when building or maintaining LED lighting/decoration systems. What’s more, IP64 high dustproof and waterproof design protects the internal electronic components from the threat of dust and moisture. In addition, the high efficiency reaches up to 88.5%, so it is able to operate between -30°C ~+50°C only under natural air cooling in the fully coated plastic shell. At the same time, PLN-100-27 is offered with various protections such as short-circuit, overload, over-voltage, and over-temperature. The input and output is provided with 18 AWG power cord for flexible assembly in various systems or situations. The output voltage and output current can also be adjusted by the user to make LED output the best brightness. As a result of its longevity, high efficiency and excellent reliability, Meanwell PLN-100-27 is ideal for small LED signage, backlight panels, LED decorative light sources, indoor and outdoor LED lighting power supplies, LED stage lights and theater lighting, etc.

Meanwell PLN-100-27 Price and Specs 100W Single Output LED Power Supply PLN-100-12/15/20/24/27/36/48 PFC LPS Pass YCICT

Meanwell PLN-100-27 Specifications

Model PLN-100-27
OUTPUT DC VOLTAGE 27V
CONSTANT CURRENT REGION 20.25-27V
RATED CURRENT 3.55A
RATED POWER 95.85W
RIPPLE & NOISE (max.) 150mVp-p
VOLTAGE ADJ. RANGE (SVR1) 23-27V
CURRENT ADJ. RANGE(SVR2) 2.6-3.55A
VOLTAGE TOLERANCE ±3.0%
LINE REGULATION ±1.0%
LOAD REGULATION ±2.0%
HOLD UP TIME (Typ.) 60ms/230VAC 16ms/115VAC at full load
SETUP TIME 500ms, 80ms/230VAC 1200ms, 80ms/115VAC at full load
INPUT VOLTAGE RANGE 90 ~ 295VAC 127 ~ 417VDC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR (Typ.) PF>0.95/115VAC, PF>0.95/230VAC, PF>0.92/277VAC at full load (Please refer to "Power Factor Characteristic" curve)
TOTAL HARMONIC DISTORTION  THD< 20% when output loading>=75% at 115VAC/230VAC input and output loading>=75% at 277VAC input
EFFICIENCY (Typ.) 88.00%
AC CURRENT (Typ.) 12V:0.8A/115VAC 0.4A/230VAC 0.3A/277VAC 15V:0.9A/115VAC 0.45A/230VAC 0.35A/277VAC
20V ~ 48V:1.1A/115VAC 0.55A/230VAC 0.45A/277VAC
INRUSH CURRENT(Typ.) COLD START 40A(twidth=1030μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER 3 units (circuit breaker of type B) / 5 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT <0.75mA / 240VAC
PROTECTION OVER CURRENT 95 ~ 102%
Protection type : Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 30-36V
Protection type : Shut down and latch off o/p voltage, re-power on to recover
OVER TEMPERATURE Shut down o/p voltage, re-power on to recover
ENVIRONMENT WORKING TEMP -30 ~ +50 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +80, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY&EMC SAFETY STANDARDS UL879, UL1310, UL8750, CSA C22.2 No. 207-M89, TUV BS EN/EN61347-1, BS EN/EN61347-2-13 independent, CAN/CSA C22.2 No.223-M91(except for 48V), CAN/CSA C22.2 No. 250.13-12, EAC TP TC 004, GB19510.1,GB19510.14,IP64 approved ; design refer to UL60950
WITHSTAND VOLTAGE I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55015, BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2 Class C (>75% load) ; BS EN/EN61000-3-3;GB17743 and GB17625.1,EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, BS EN/EN55035, light industry level (surge 4KV), EAC TP TC 020
Others MTBF 2689.6K hrs min. Telcordia SR-332 (Bellcore) ; 303.2Khrs min. MIL-HDBK-217F (25)
DIMENSION 200*70.5*35mm (L*W*H)
PACKING 0.52Kg; 20pcs/12.5Kg/0.9CUFT

Meanwell PLN-100-27 Features

l  Pass LPS

l  High reliability

l  2 years warranty

l  Class 2 power unit

l  100% full load burn-in test

l  Cooling by free air convection

l  Built-in active PFC function

l  High efficiency up to 88.5%

l  Suitable for dry/damp locations

l  Fully isolated plastic case with IP64 level

l  Universal AC input 1 Full range (up to 295VAC)

l  Suitable for LED lighting and moving sign applications

l  Compliance to worldwide safety regulations for lighting

l  Protections: Short circuit/Over current/Over voltage/Over temperature

Meanwell PLN-100-27 Price and Specs 100W Single Output LED Power Supply PLN-100-12/15/20/24/27/36/48 PFC Class 2 YCICT

Meanwell PLN-100-27 Mechanical Diagram

Meanwell PLN-100-27 Price and Specs 100W Single Output LED Power Supply PLN-100-12/15/20/24/27/36/48 PFC IP64 YCICT

Meanwell PLN-100-27 Price and Datasheet 100W Single Output LED Power Supply PLN-100-12/15/20/24/27/36/48 PFC IP64 YCICT
